Section 249 (Security Control System)
›
System Description
›
System
›
Vehicle Security System
›

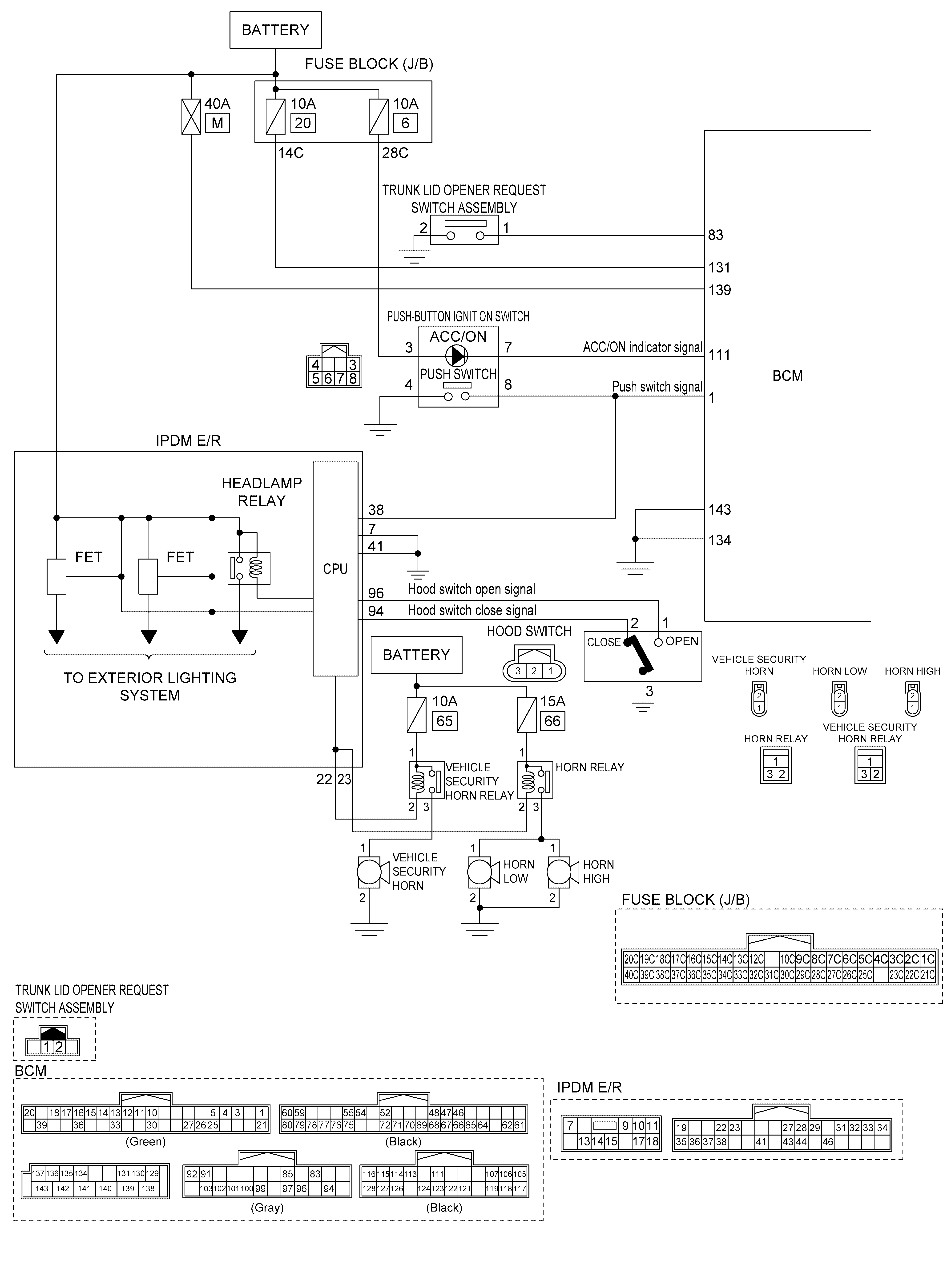

Circuit Diagram
›
VR30DDTT Engine Models (For MEXICO)
VR30DDTT Engine Models (For MEXICO)
WARNING:
This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
