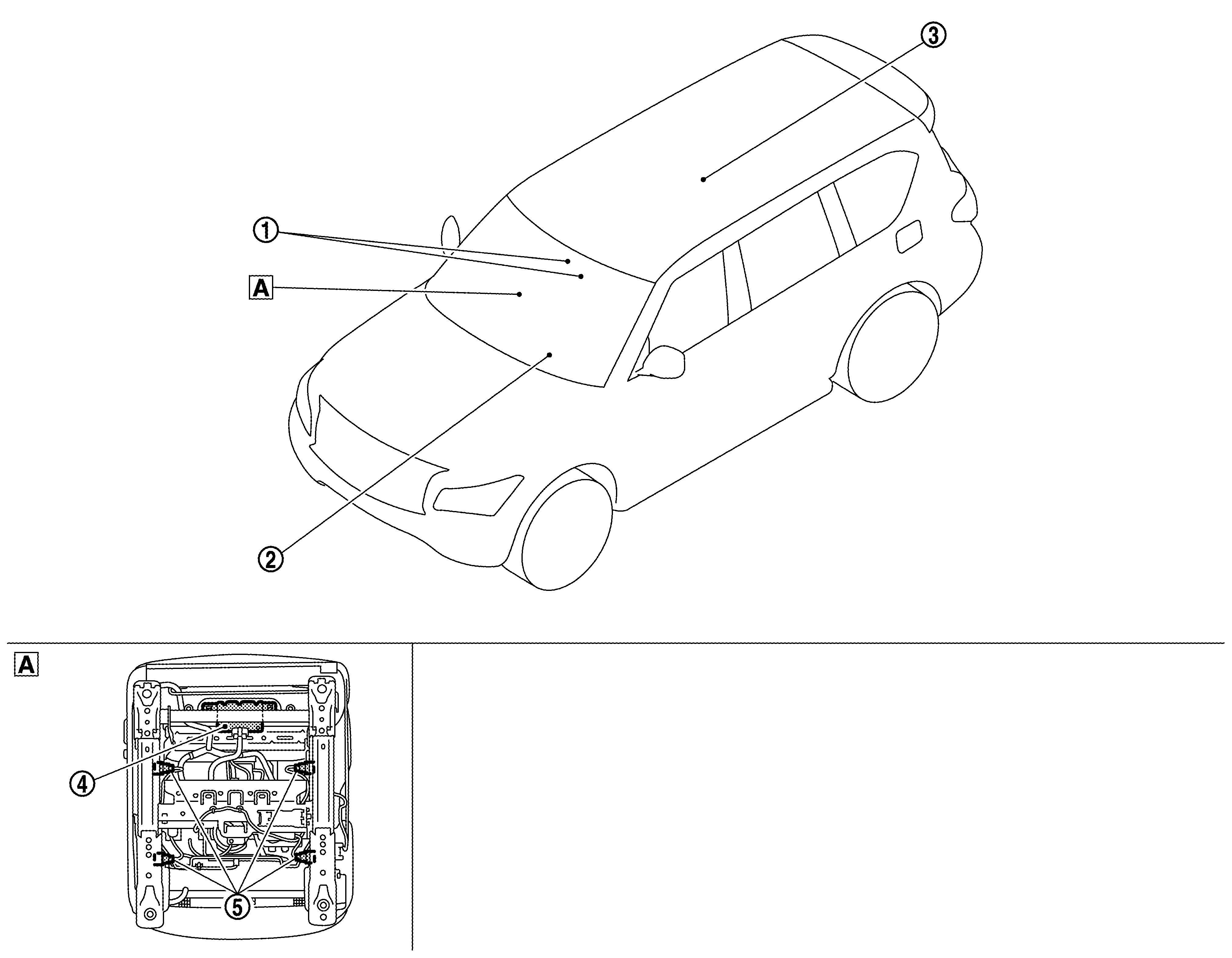

Component Location

GNSJMHIA3634Z-634

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Seat belt buckle switch

2.

Combination meter

Refer to Component Location .

3.

Air bag diagnosis sensor unit

Refer to Component Location .

4.

Occupant detection system control unit

Refer to Component Location .

5.

Occupant detection system seat sensor

Refer to Component Location .

A.

Backside of passenger seat cushion frame
