Removal and Installation: Removal
- Disconnect the negative battery terminal. Refer to Battery Disconnect .

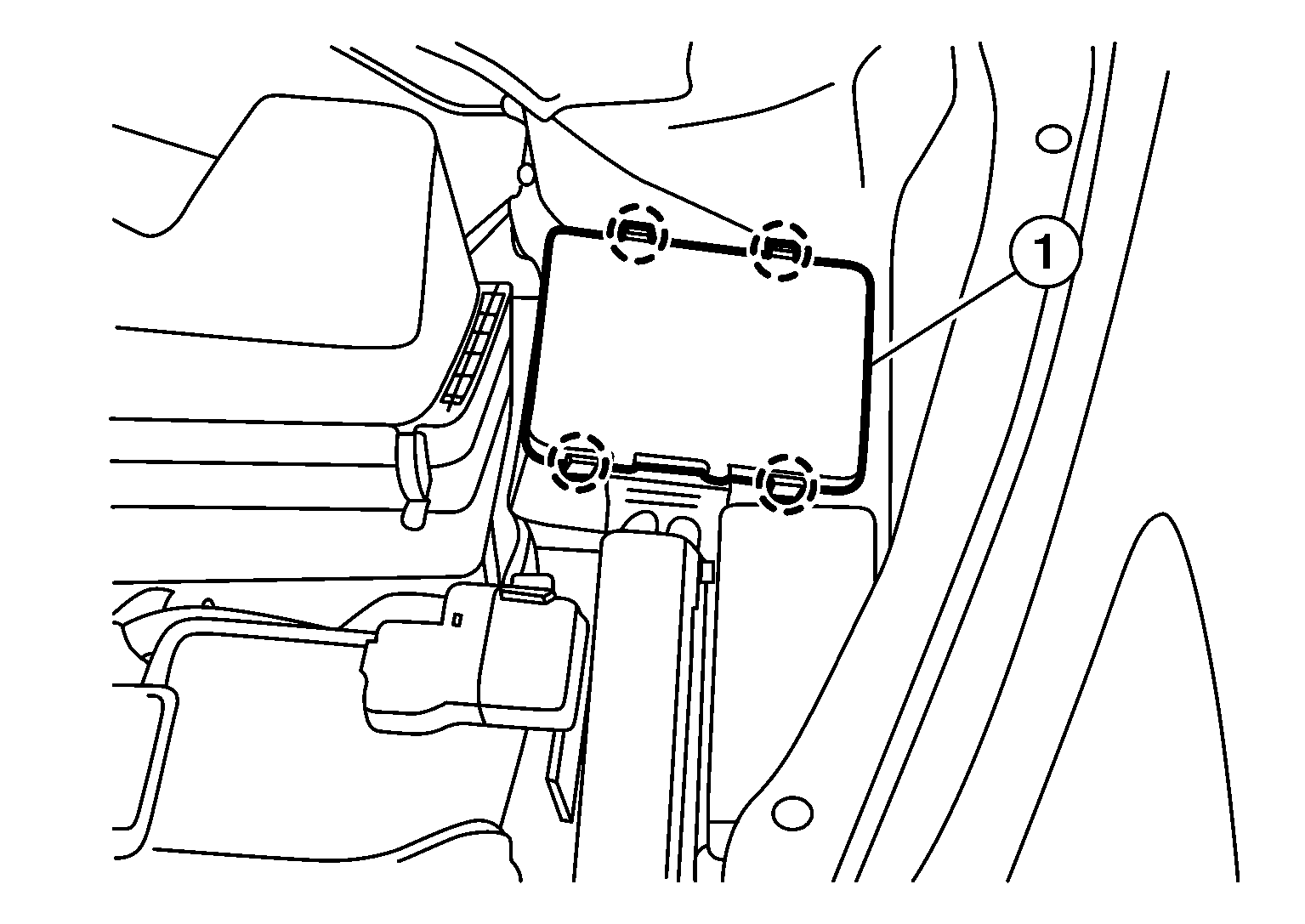

- Release the pawls and separate the IPDM E/R (1) from the case.
: Pawl

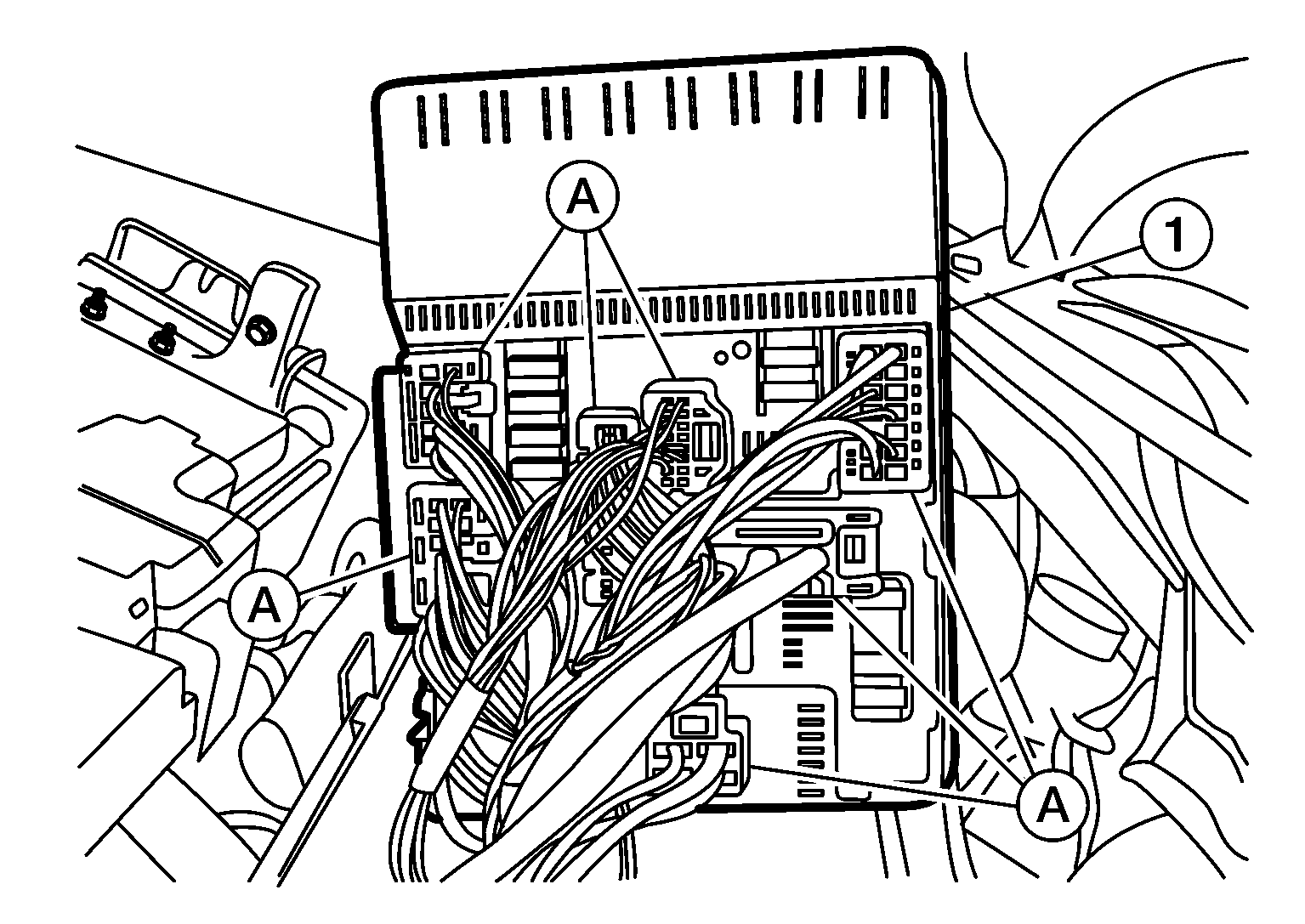

- Disconnect all harness connectors (A) from the IPDM E/R (1) and remove.
|
|
: Pawl |
