Automatic Transmission
›
Removal And Installation
›
Paddle Shifter
›

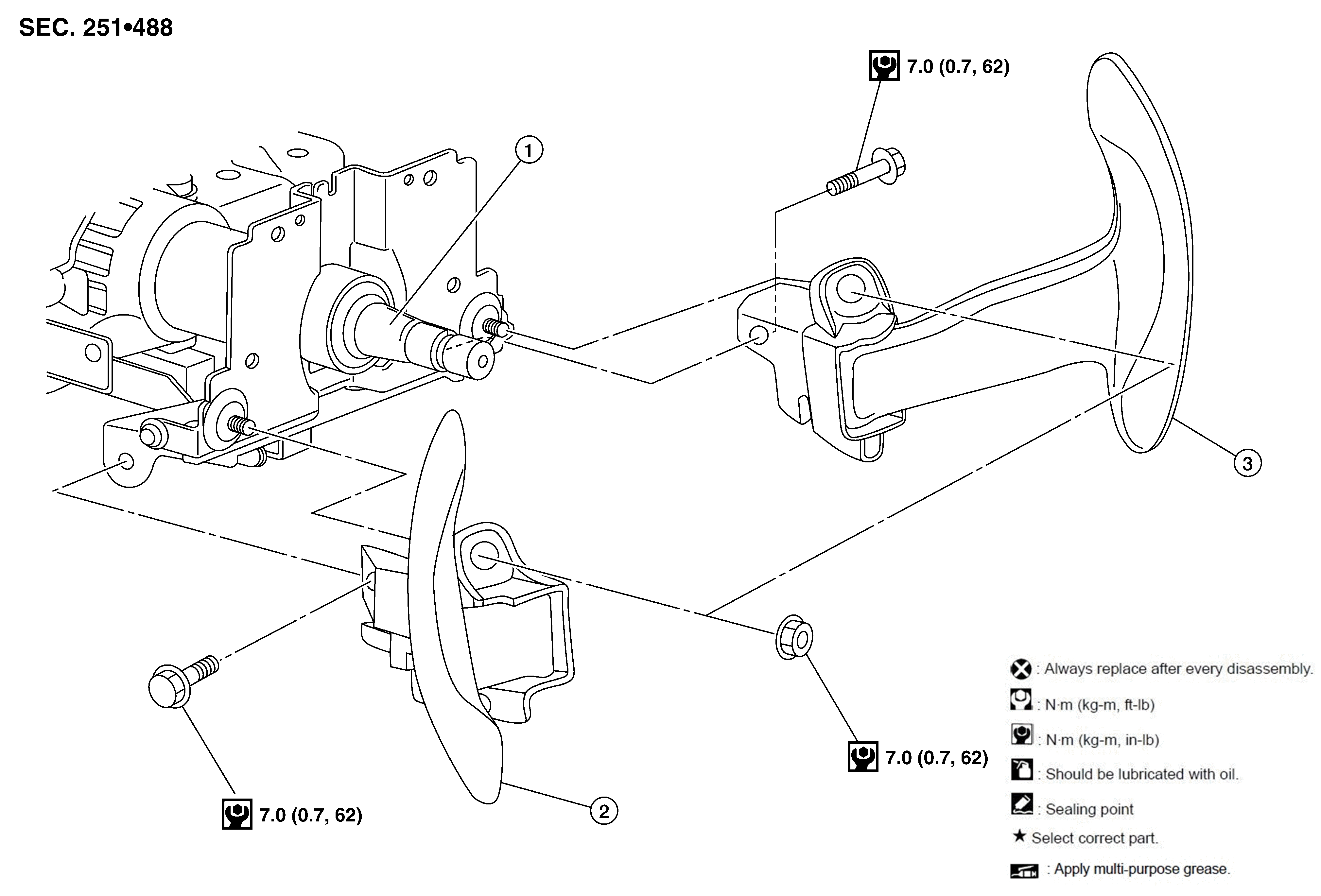

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column assembly
2.
Paddle shifter (shift-down)
3.
Paddle shifter (shift-up)
