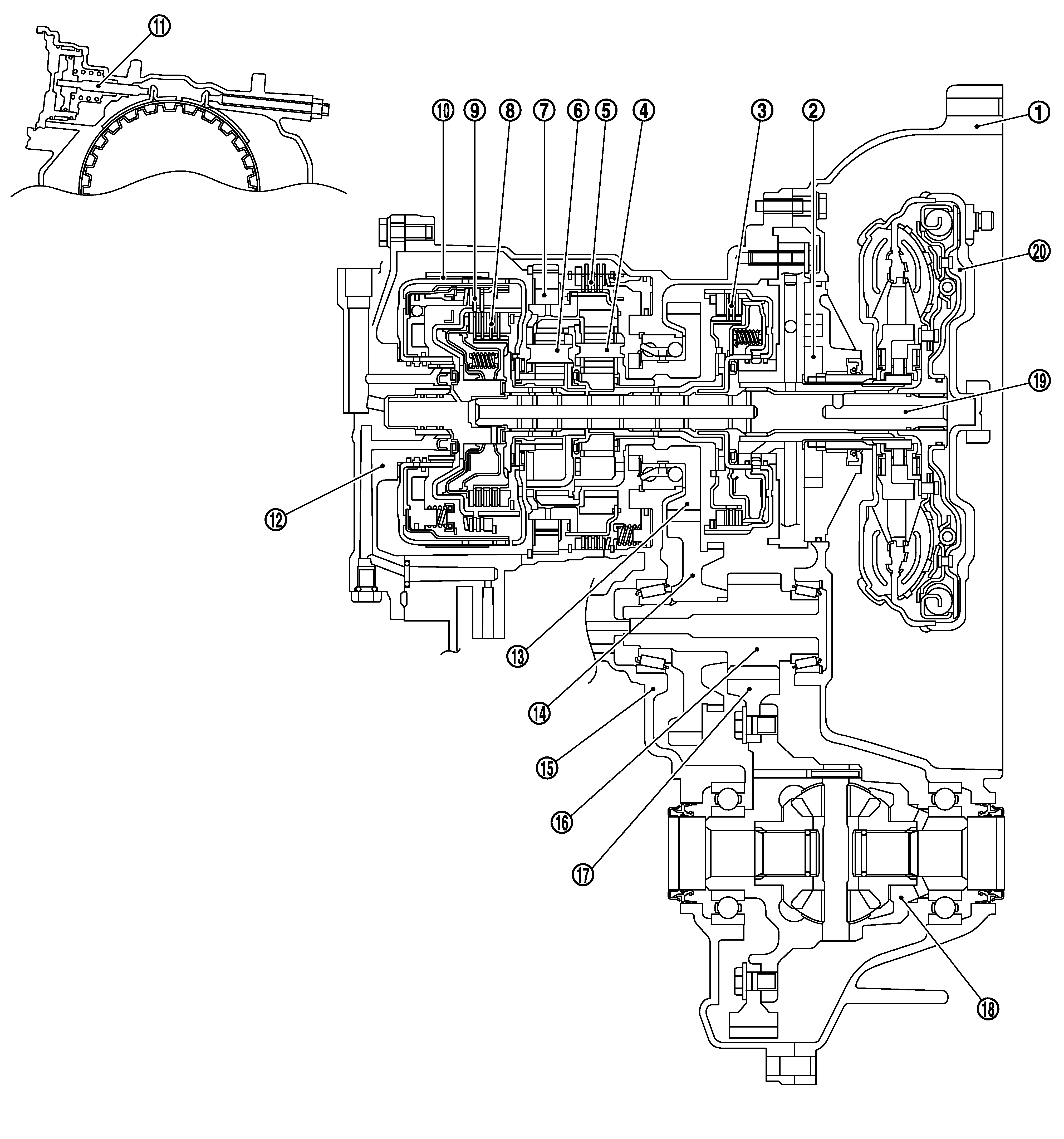

Cross-Sectional View

1.

Converter housing

2.

Oil pump

3.

Low clutch

4.

Rear planetary gear

5.

Low & reverse brake

6.

Front planetary gear

7.

Low one-way clutch

8.

High clutch

9.

Reverse clutch

10.

2-4 brake band (Brake band)

11.

Band servo piston

12.

Side cover

13.

Output gear

14.

Idler gear

15.

Transaxle case

16.

Reduction pinion gear

17.

Final gear

18.

Differential case

19.

Input shaft

20.

Torque converter
