Final Drive: Assembly

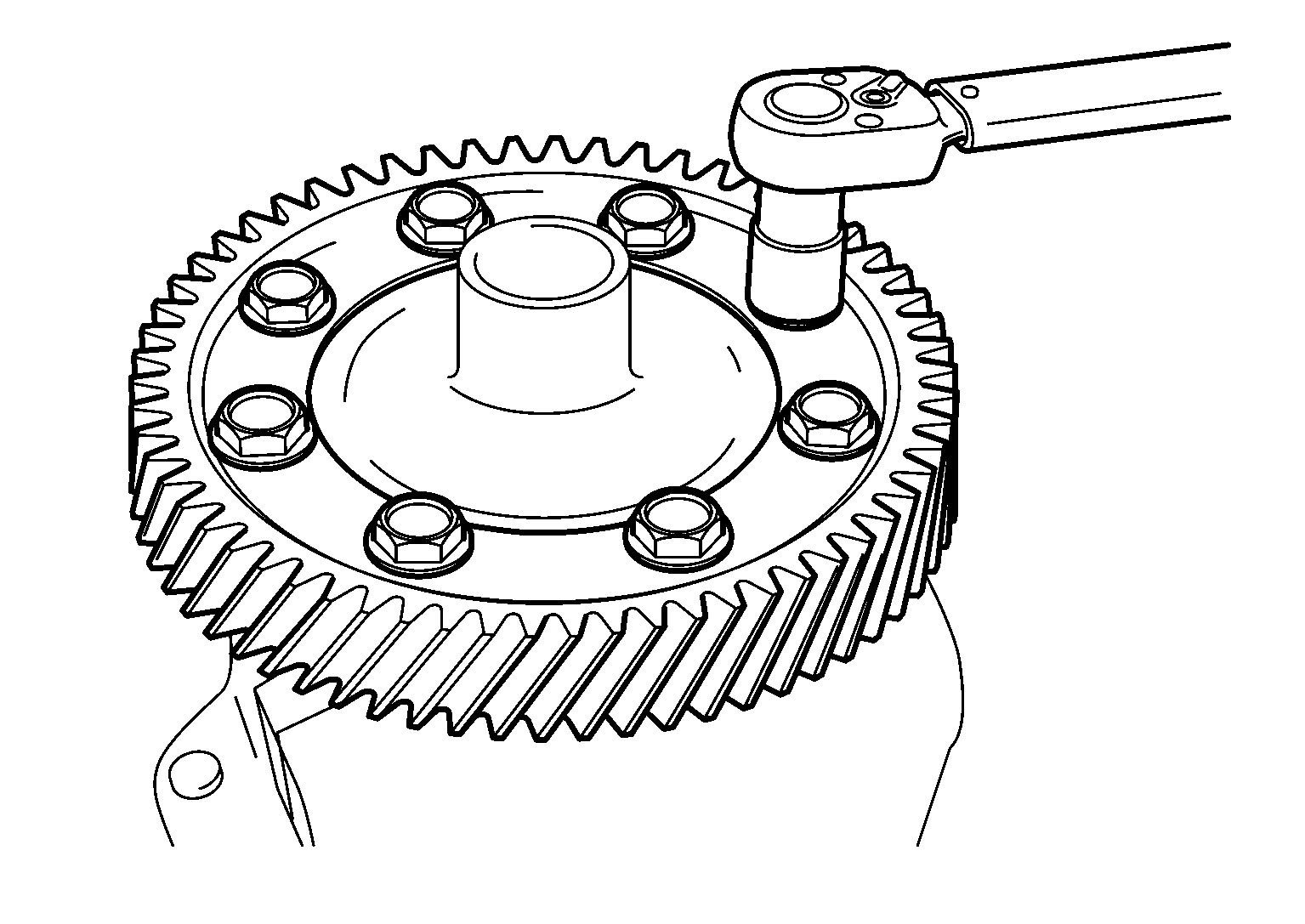

Fix differential by vise, using aluminum plates to avoid any scratching, and tighten bolts.

Courtesy of NISSAN NORTH AMERICA, INC.

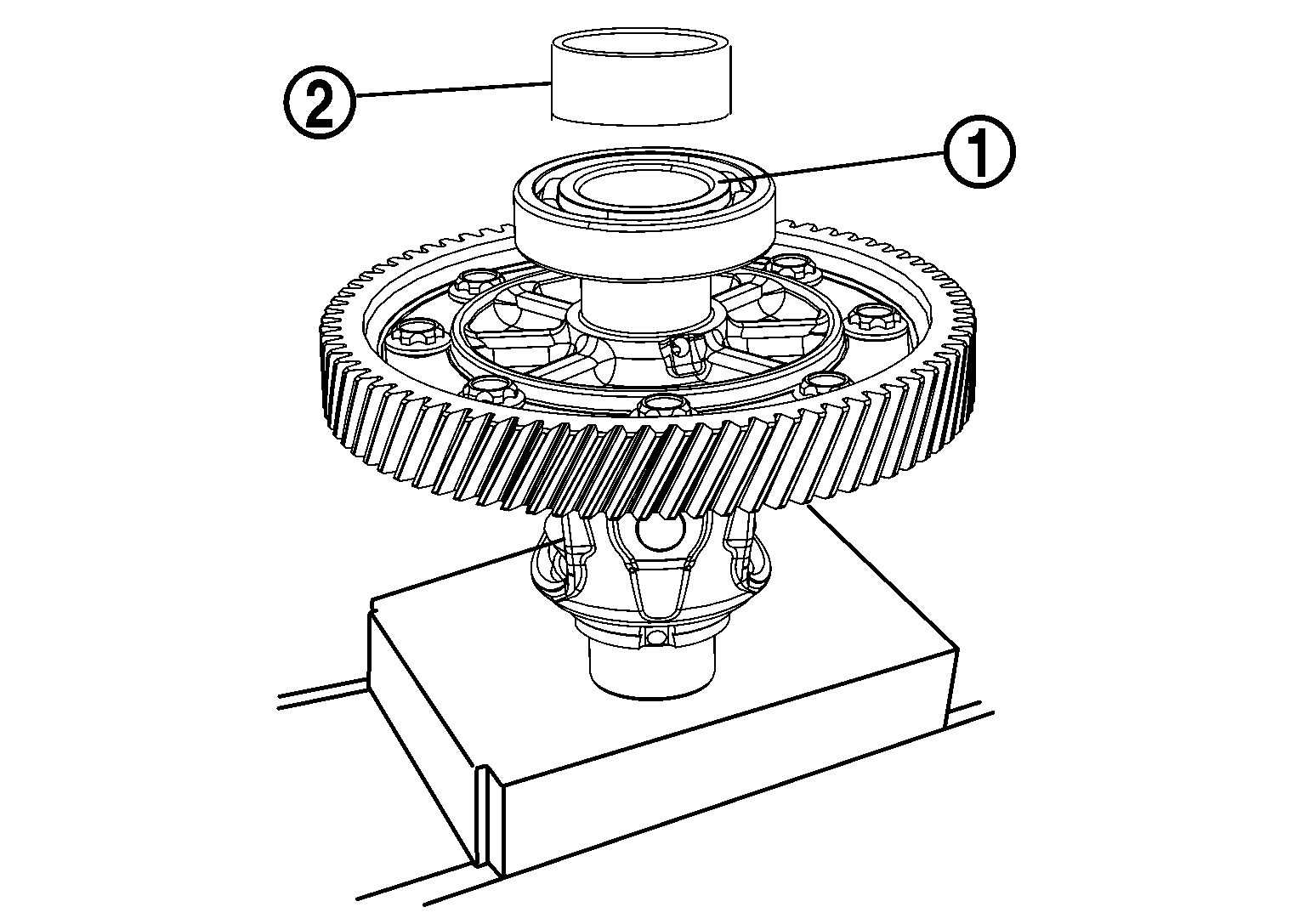

Insert inner portion of ball bearing

using drift

(commercial service tool). Insert the other bearing inner race in same way.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Apply ATF to ball bearing installing surface of differential.

Drift

Outer dia. 80 mm (3.15 in) and inner dia. 41.5 mm (1.634 in)
