Final Drive: Disassembly

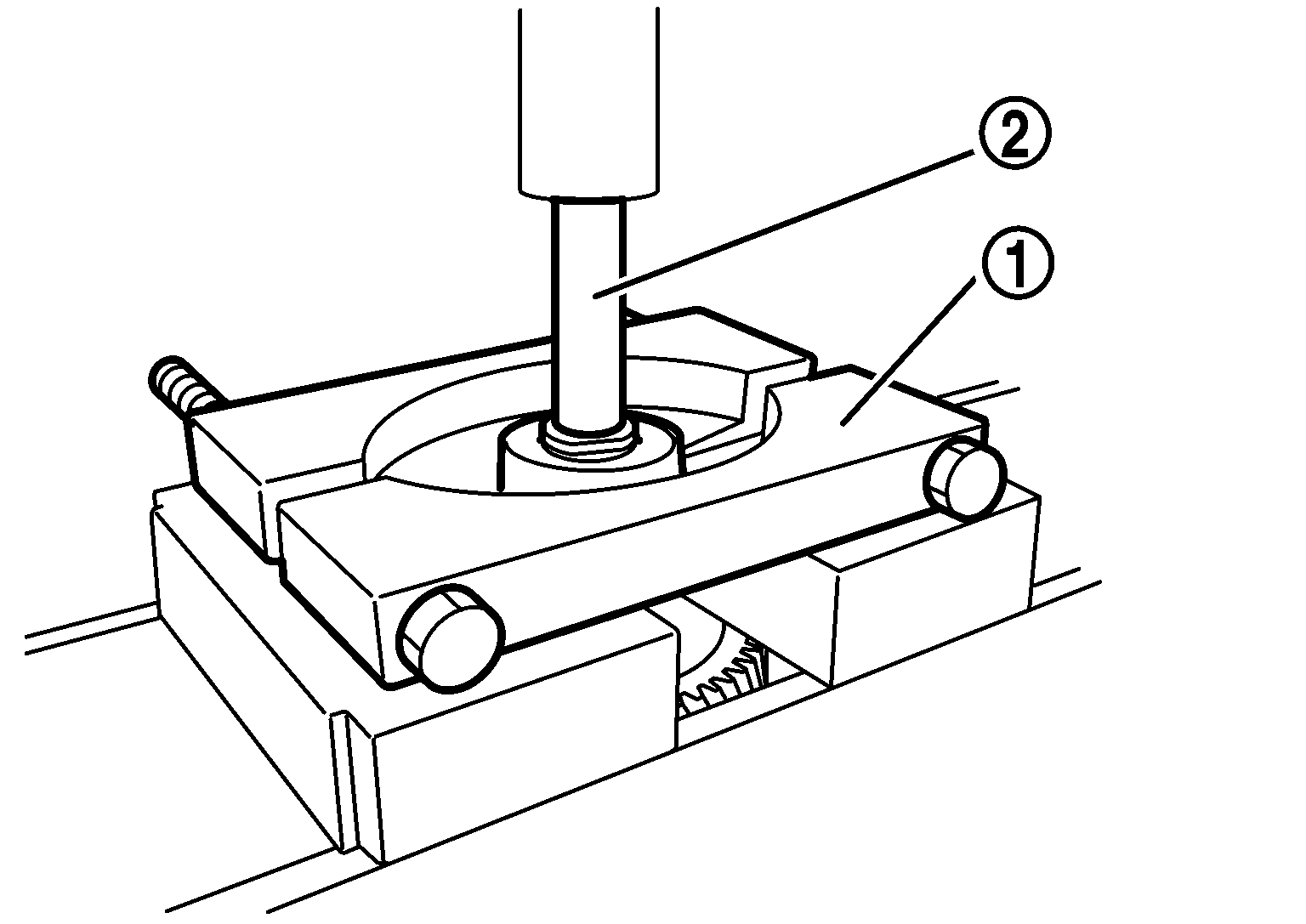

  1. Remove bearing with a bearing separator SYMBOL (commercial service tool), sold in market, and hand press SYMBOL .
    GNSJSDIA6308Z-308Courtesy of NISSAN NORTH AMERICA, INC.
  2. Fix differential by vise, using aluminum plates to avoid any scratching, and loosen bolts.
    GNSJSDIA6310Z-310Courtesy of NISSAN NORTH AMERICA, INC.
