Automatic Transmission
›
Unit Disassembly And Assembly
›
Final Drive
›
Exploded View
Exploded View

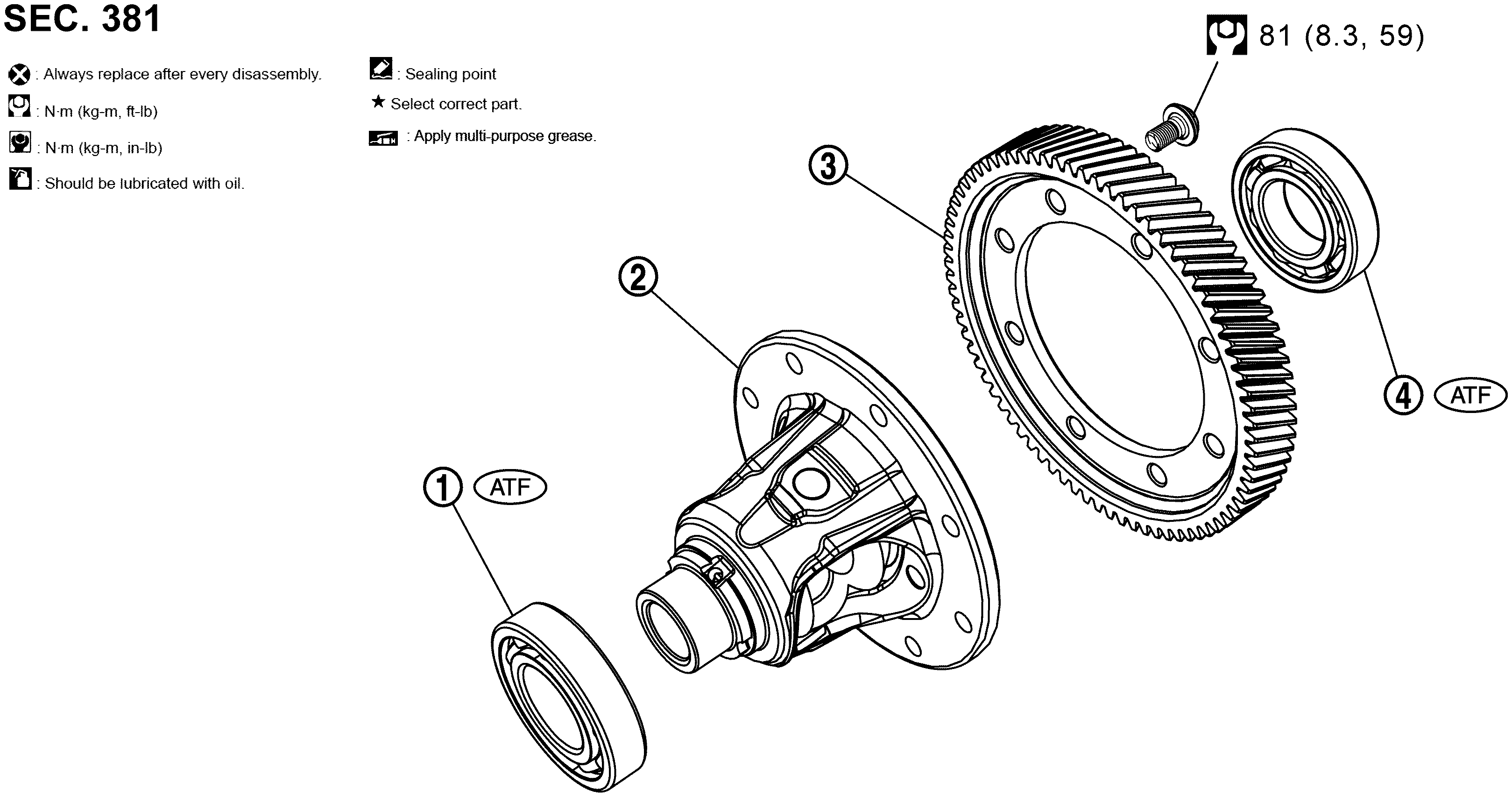

Fig 1: Final Drive With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Ball bearing
Differential
Final gear
Ball bearing
: N.m (kg-m, ft-lb)
: Apply ATF.
Courtesy of NISSAN NORTH AMERICA, INC.
