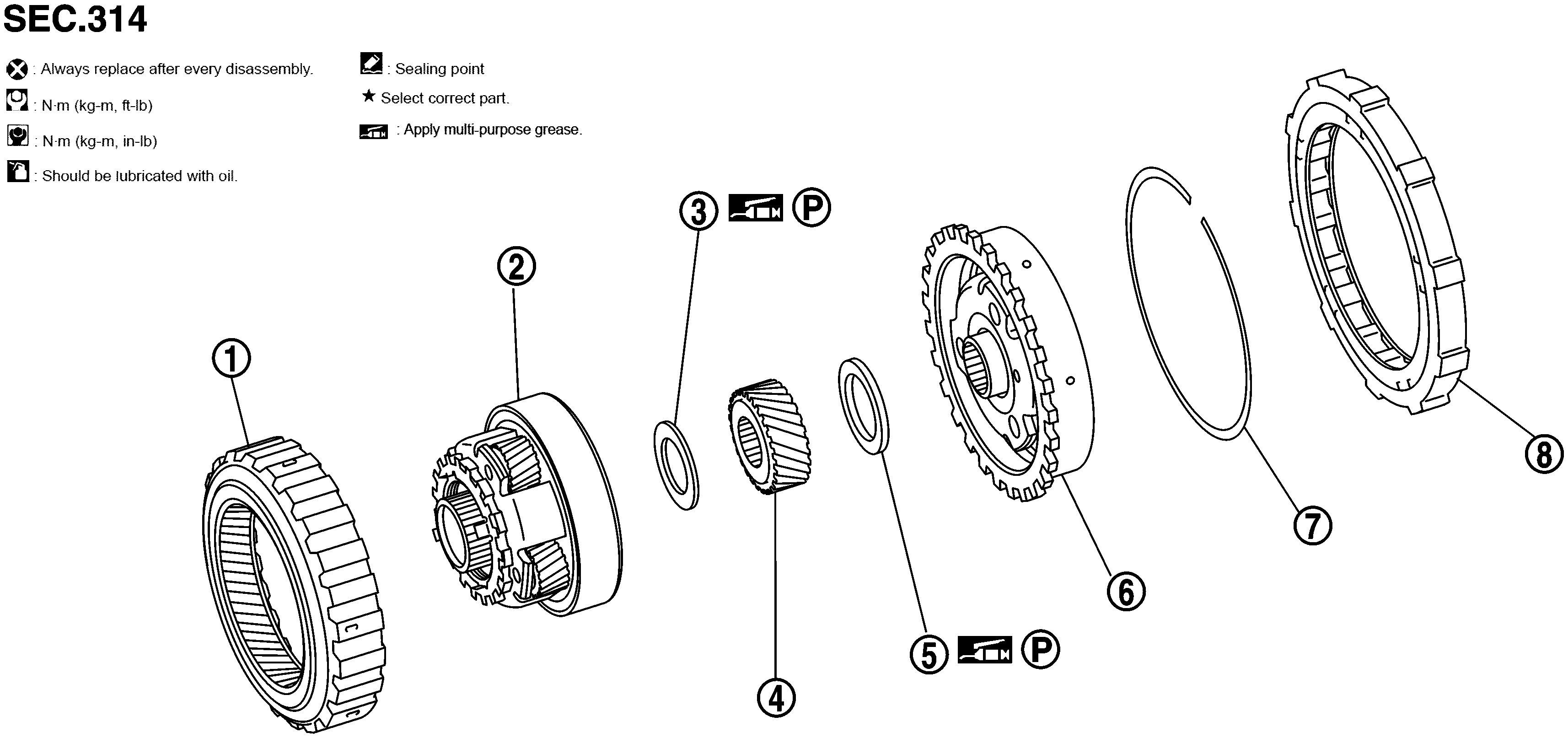

Exploded View

GNSJSDIA6322Z-322Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear internal gear

SYMBOL

Rear planetary carrier

SYMBOL

Needle bearing

SYMBOL

Rear sun gear

SYMBOL

Needle bearing

SYMBOL

Front planetary carrier

SYMBOL

Snap ring

SYMBOL

Low one way clutch



SYMBOL

: Apply petroleum jelly.
