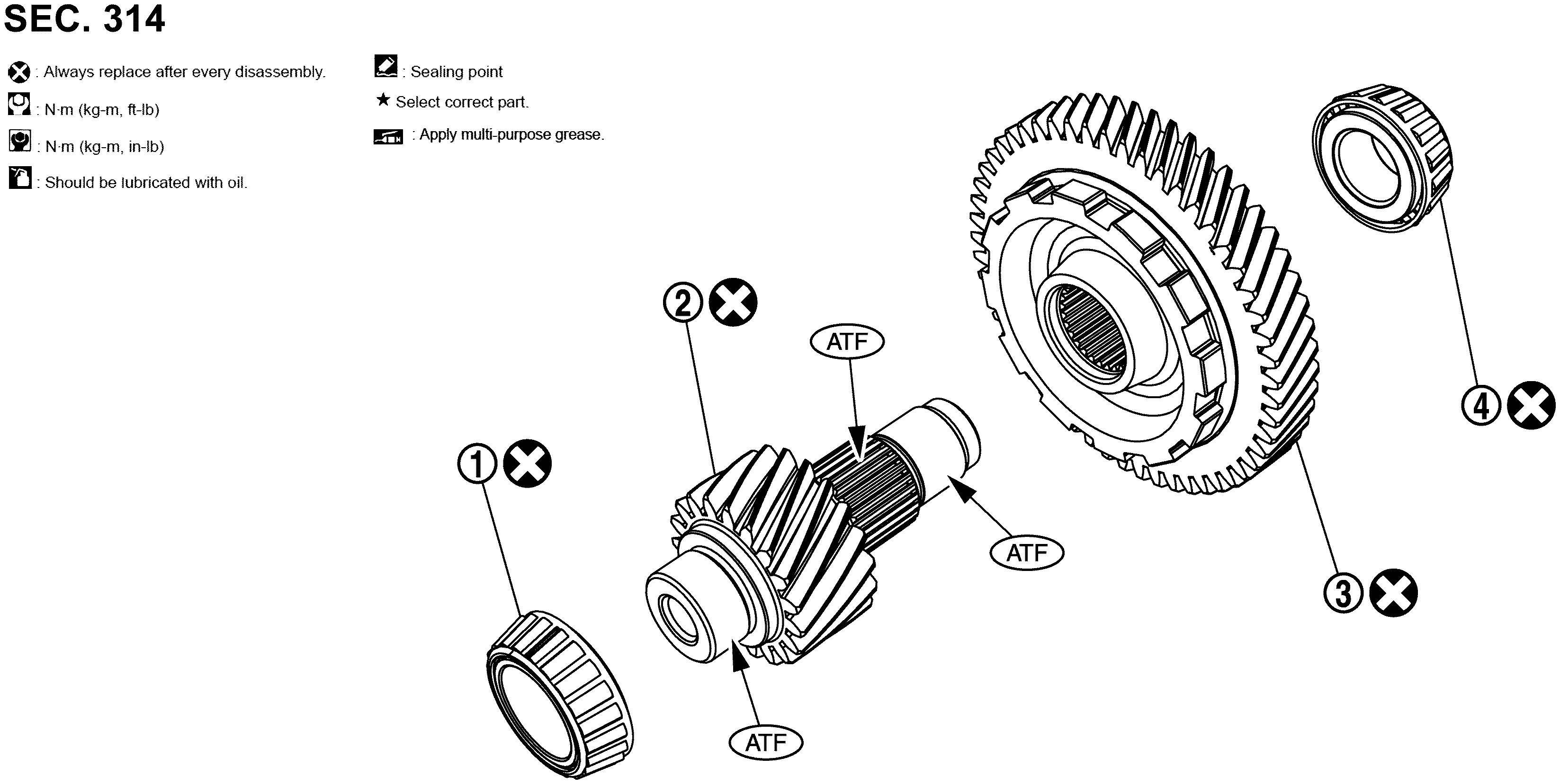

Exploded View
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Bearing inner race (converter housing side)
|
|
Reduction gear
|
|
Idler gear
|
|
|
Bearing inner race (transaxle case side)
|
|
|
|
|
|
|
: Always replace after every disassembly.
|
|
|
|
|
: Apply ATF.
|
NOTE:
If disassembled, the above parts cannot be reused.
