Transaxle Assembly: Disassembly
CAUTION:
Never disassemble other than the parts shown in "COMPONENTS".

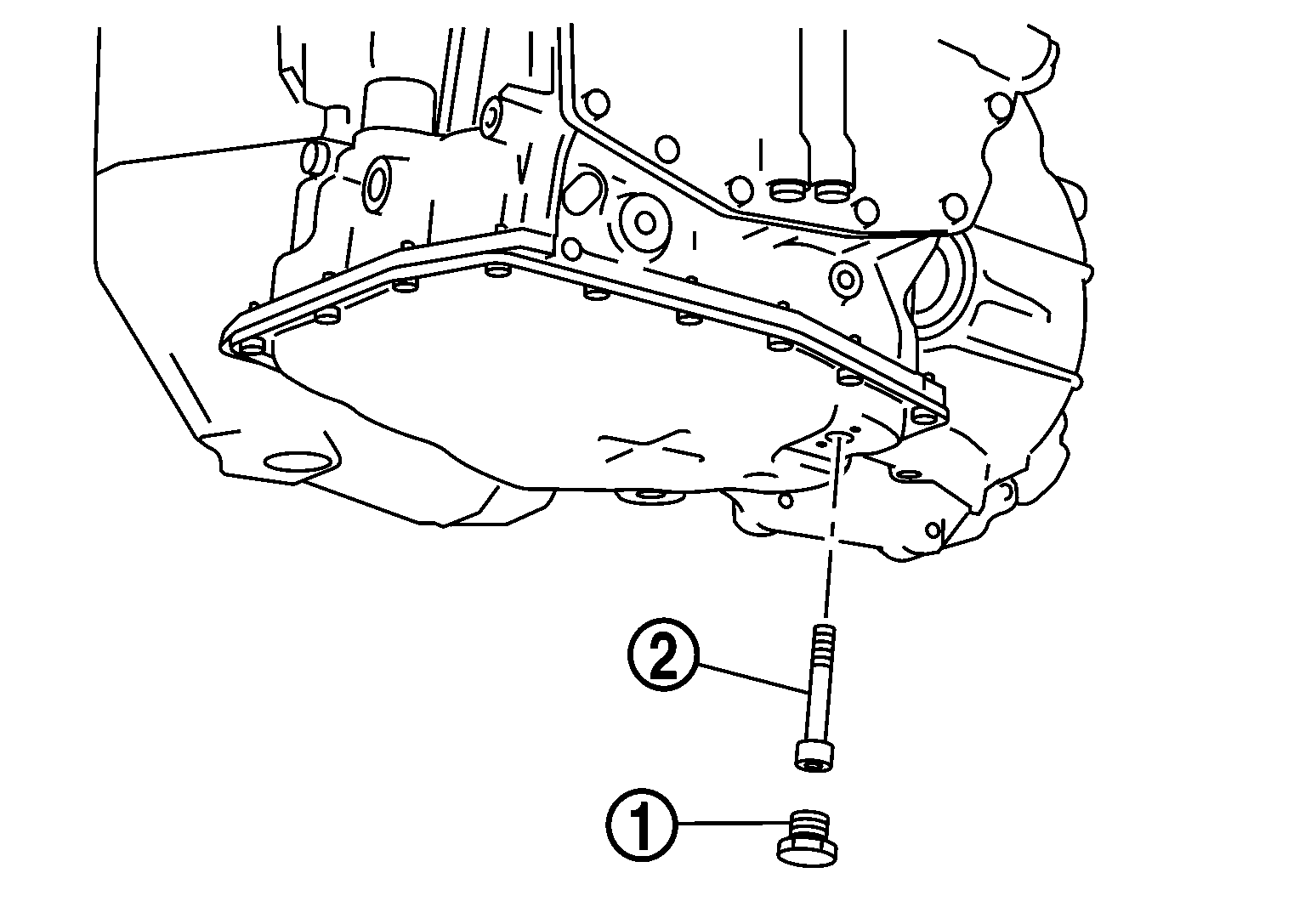

- Remove drain plug
and overflow tube
, and drain the ATF from the transaxle assembly.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
NOTE:
A/T fluid does not completely drain from drain plug mounting hole.
- Remove drain plug gasket
from drain plug
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove torque convertor
from transaxle.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove O-ring
from input shaft.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

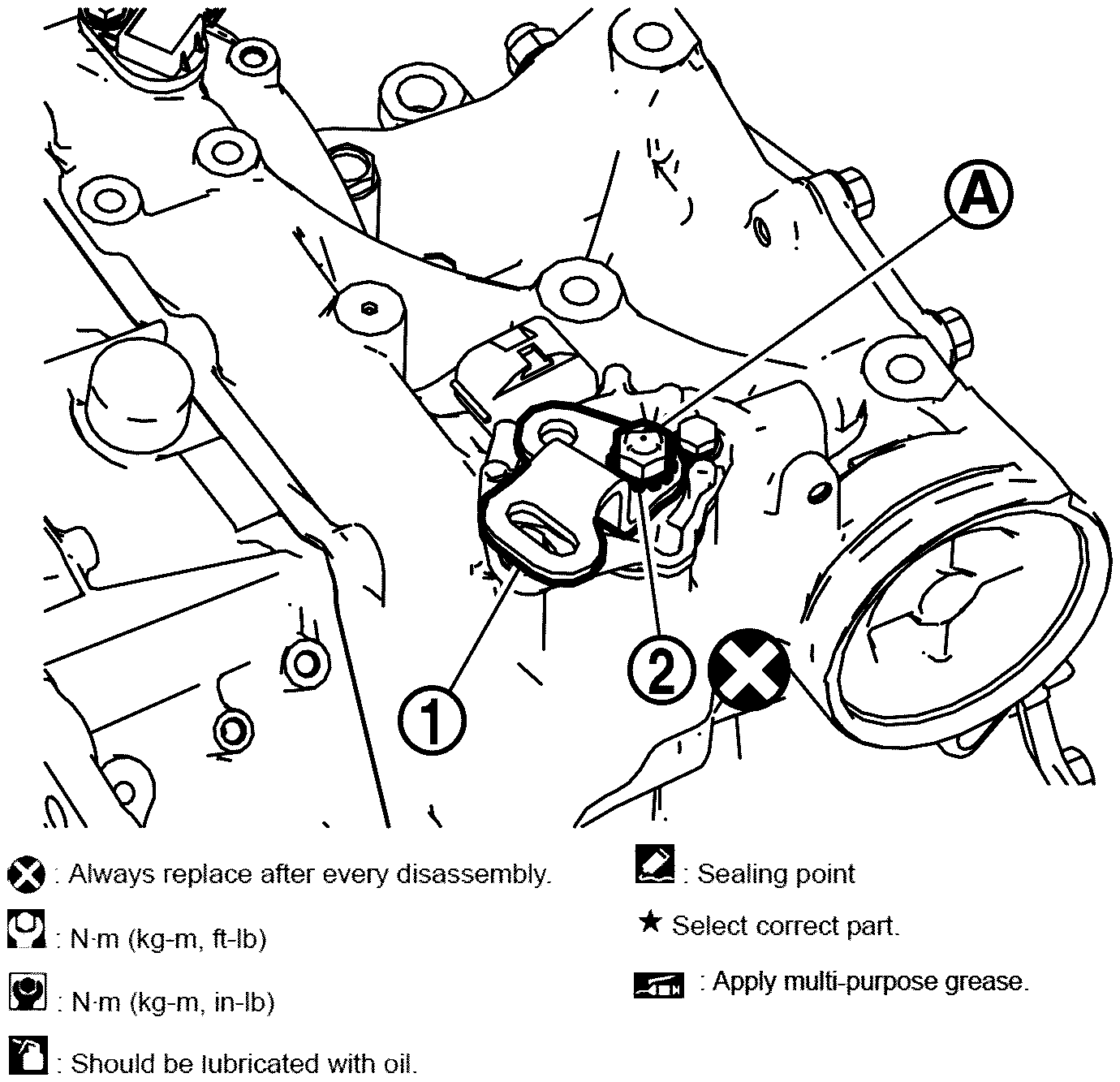

- Remove manual lever mounting nut
, manual lever
and lock washer
from manual shaft.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

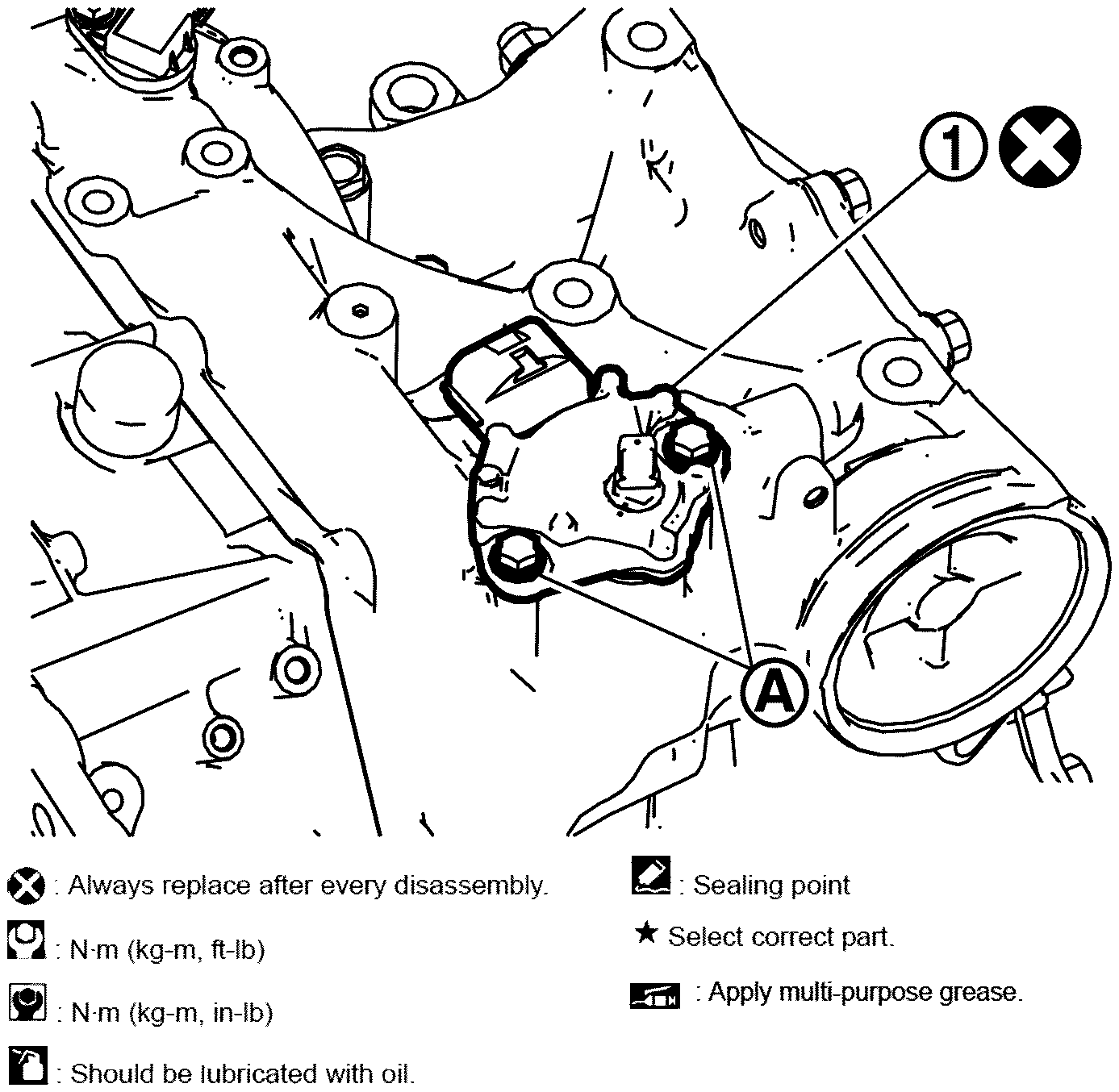

- Remove transmission range switch mounting bolts
and remove transmission range switch
from transaxle.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove breather cap
from transaxle.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
NOTE:
This work is carried out when breather cap is damaged.
- Remove output speed sensor
from transaxle.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove O-ring
from output speed sensor.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove oil pan bolts (
).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove oil pan
and oil pan gasket
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove magnets
from oil pan.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove manual plate mounting nut (A), lock washer
, and manual plate
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
CAUTION:
Fix manual plate to avoid its rotation when it is torqued.
- Remove control valve assembly bolts
and
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove control valve assembly pushing A/T unit connector
into the case by hand.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

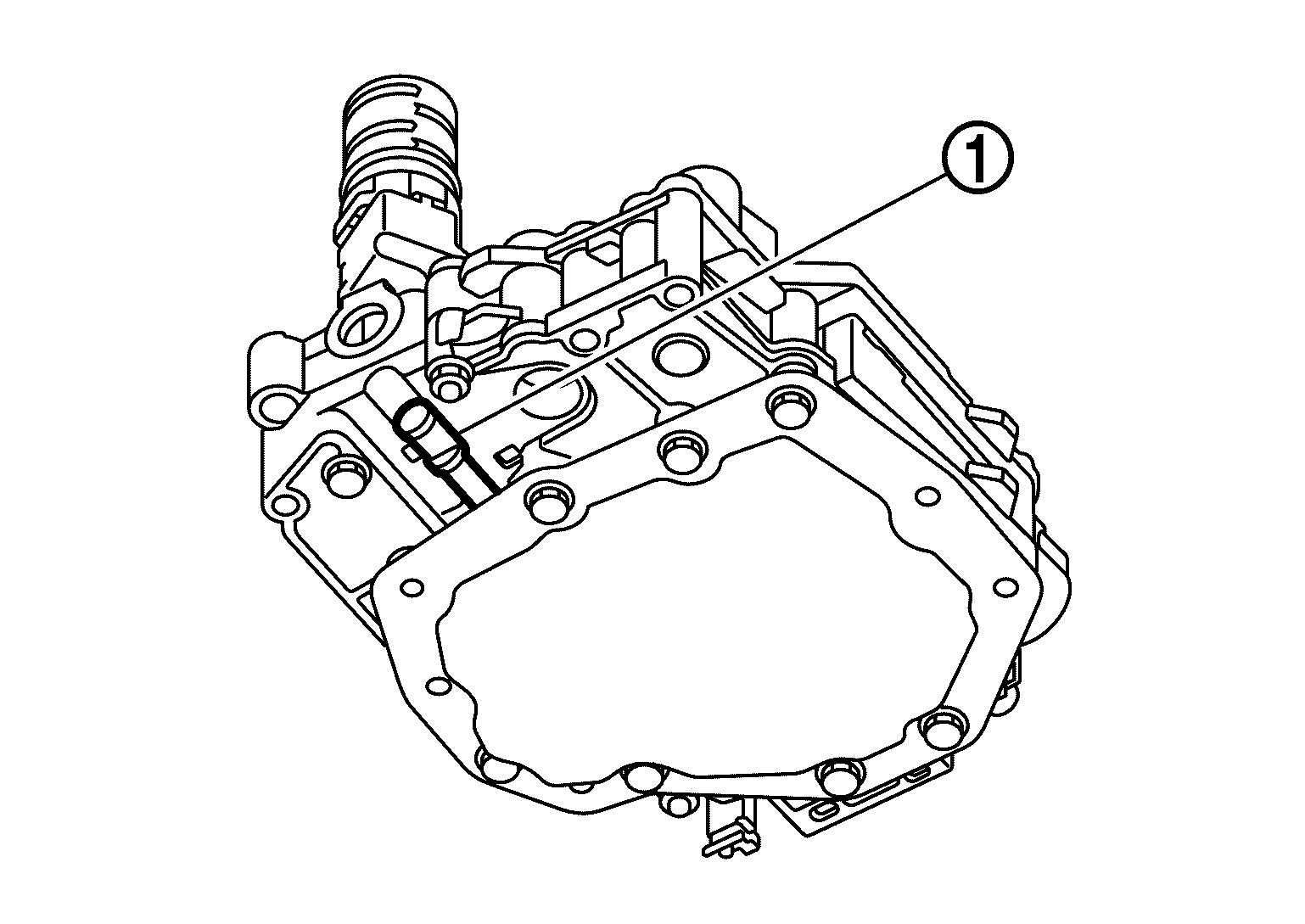

CAUTION:
Never drop manual valve
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove rip seal
from transaxle case.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove retaining plate
, accumulator return springs
, and accumulator piston
from transaxle case.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove convertor housing bolts
and
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Bolt symbol
|
Specification
|
Number of bolt
|
|
|
Seal less bolt
|
17
|
|
|
Sealed bolt
|
2
|

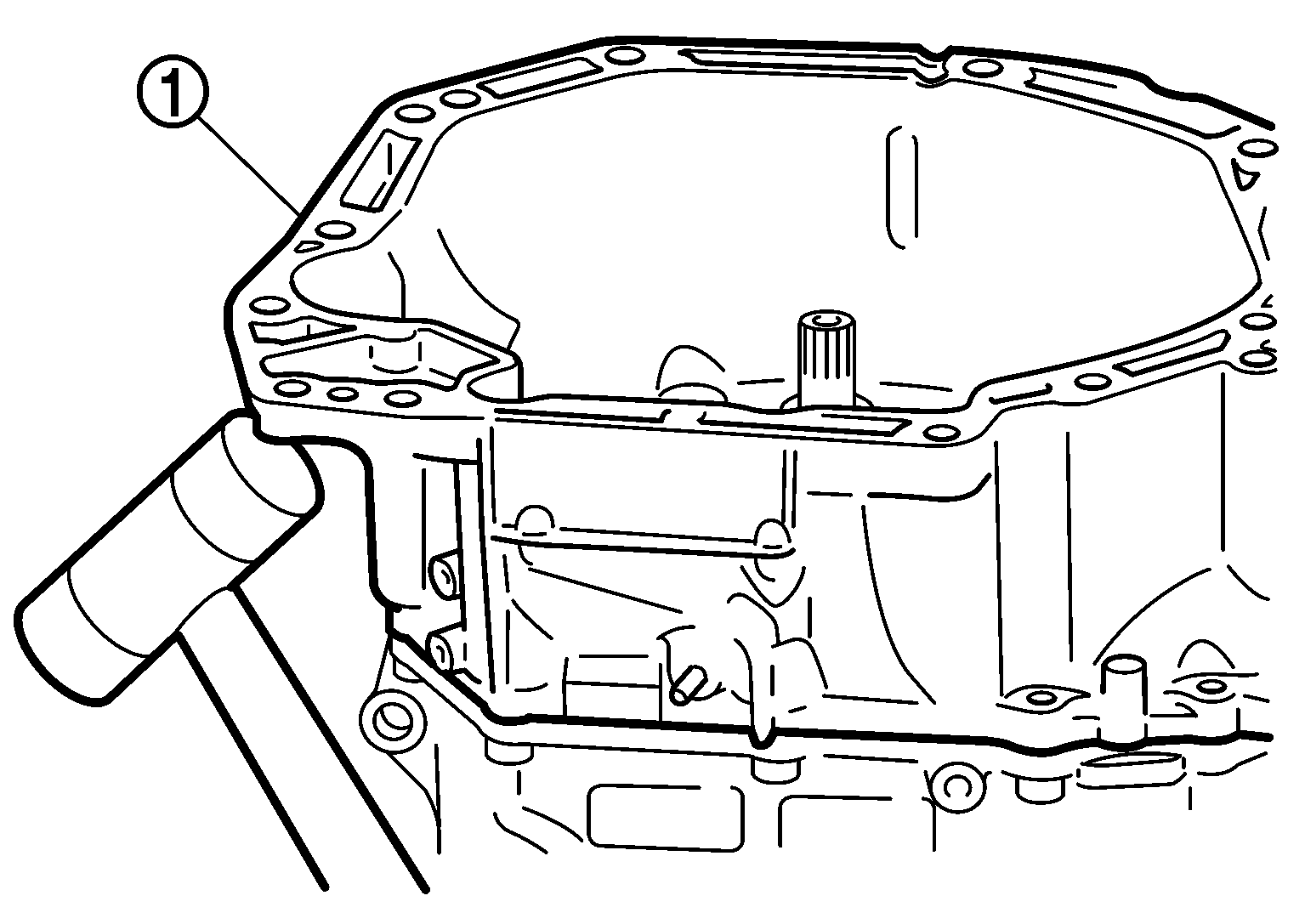

- Remove convertor housing
by softly tapping with silicon hammer.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove baffle plate
from convertor housing.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove differential side bearing adjust shim
from convertor housing.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

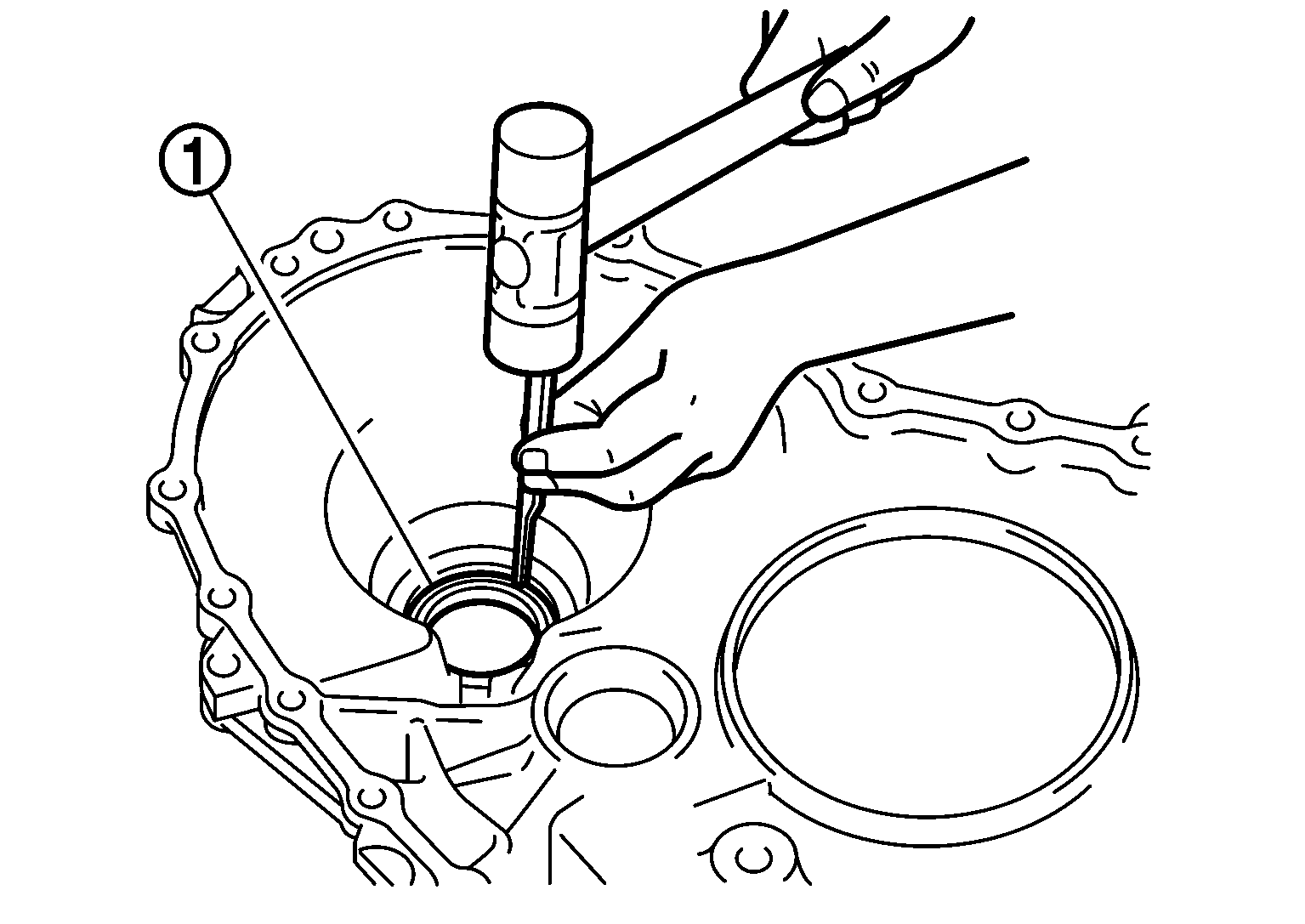

- Remove differential side oil seal
from convertor housing using a suitable tool.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
CAUTION:
Never scratch converter housing.

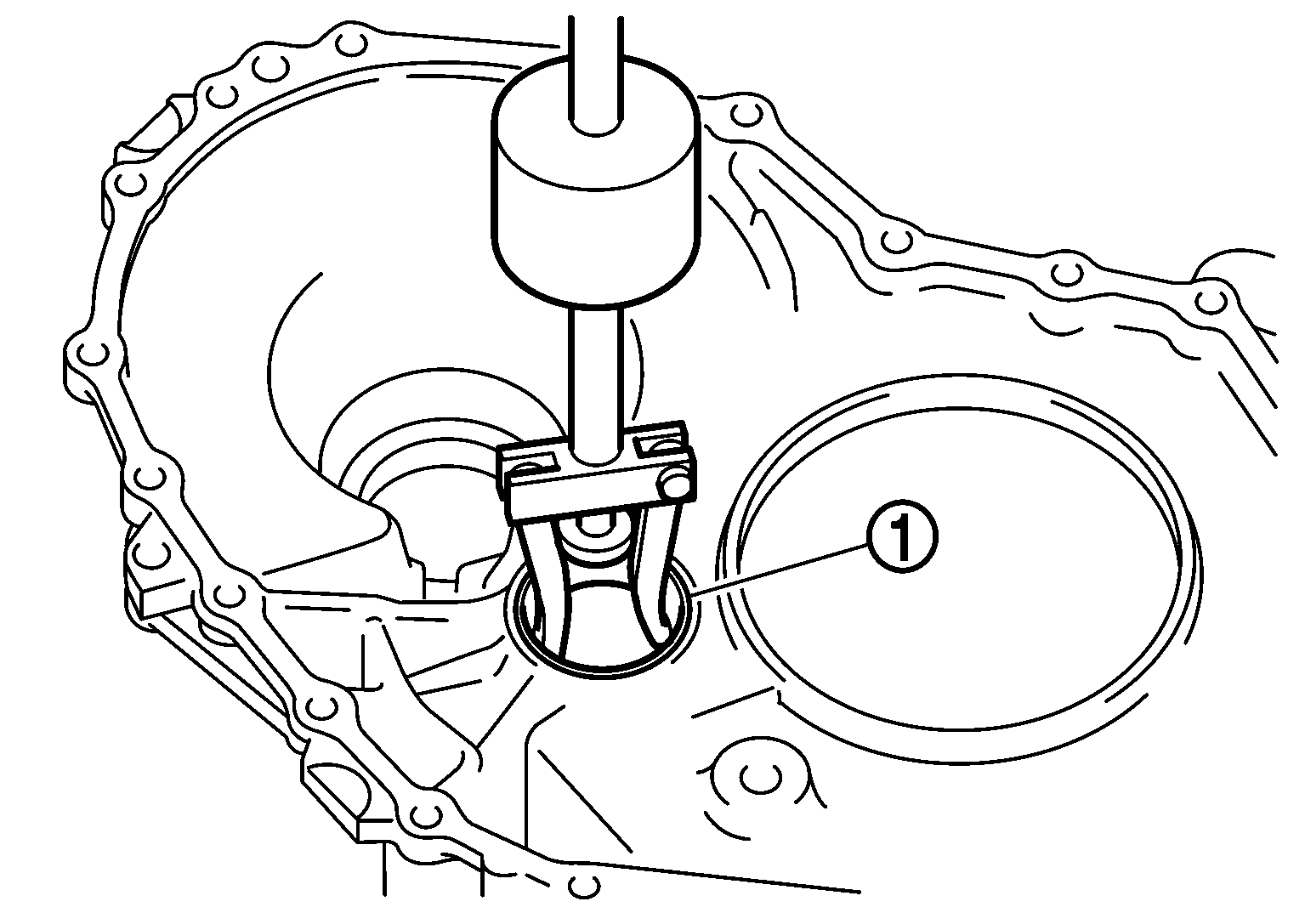

- Remove reduction pinion gear bearing outer race
from convertor housing using puller (SST: KV381054S0).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
CAUTION:
Never scratch converter housing.
- Remove reduction pinion gear bearing adjust shim
from convertor housing.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove breather pipe and dowel pin from converter housing.
- Remove final drive assembly
from transaxle case.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove oil pump assembly bolts (
) and remove baffle plate
and oil pump assembly
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove needle bearing
from low clutch assembly.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove low clutch assembly
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove thrust washer
from low clutch hub.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove low clutch hub
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove parking pawl shaft spacer
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

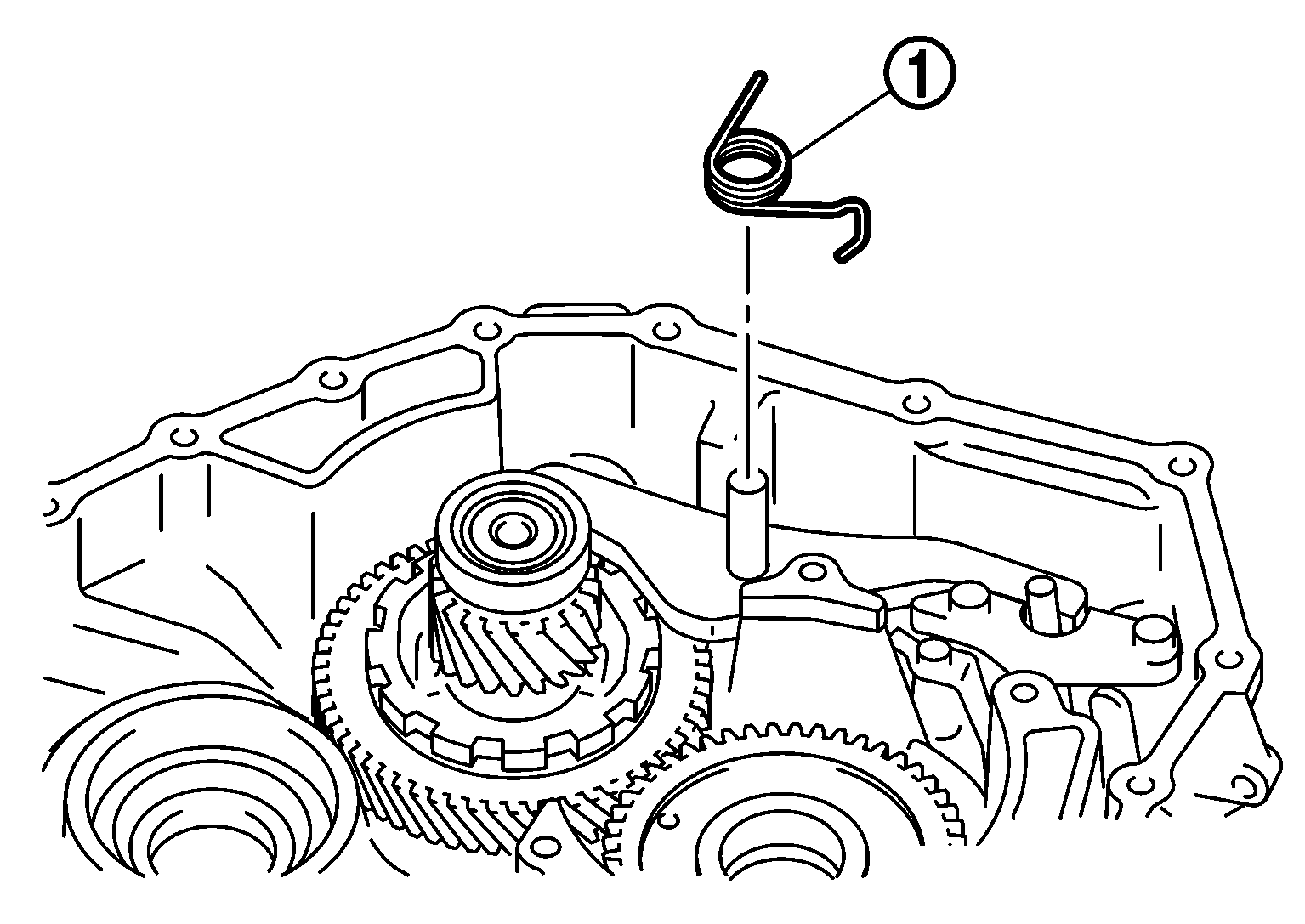

- Remove return spring
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove parking pawl
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove parking pawl shaft
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove reduction pinion gear assembly
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove side cover bolt (
) and remove side cover
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

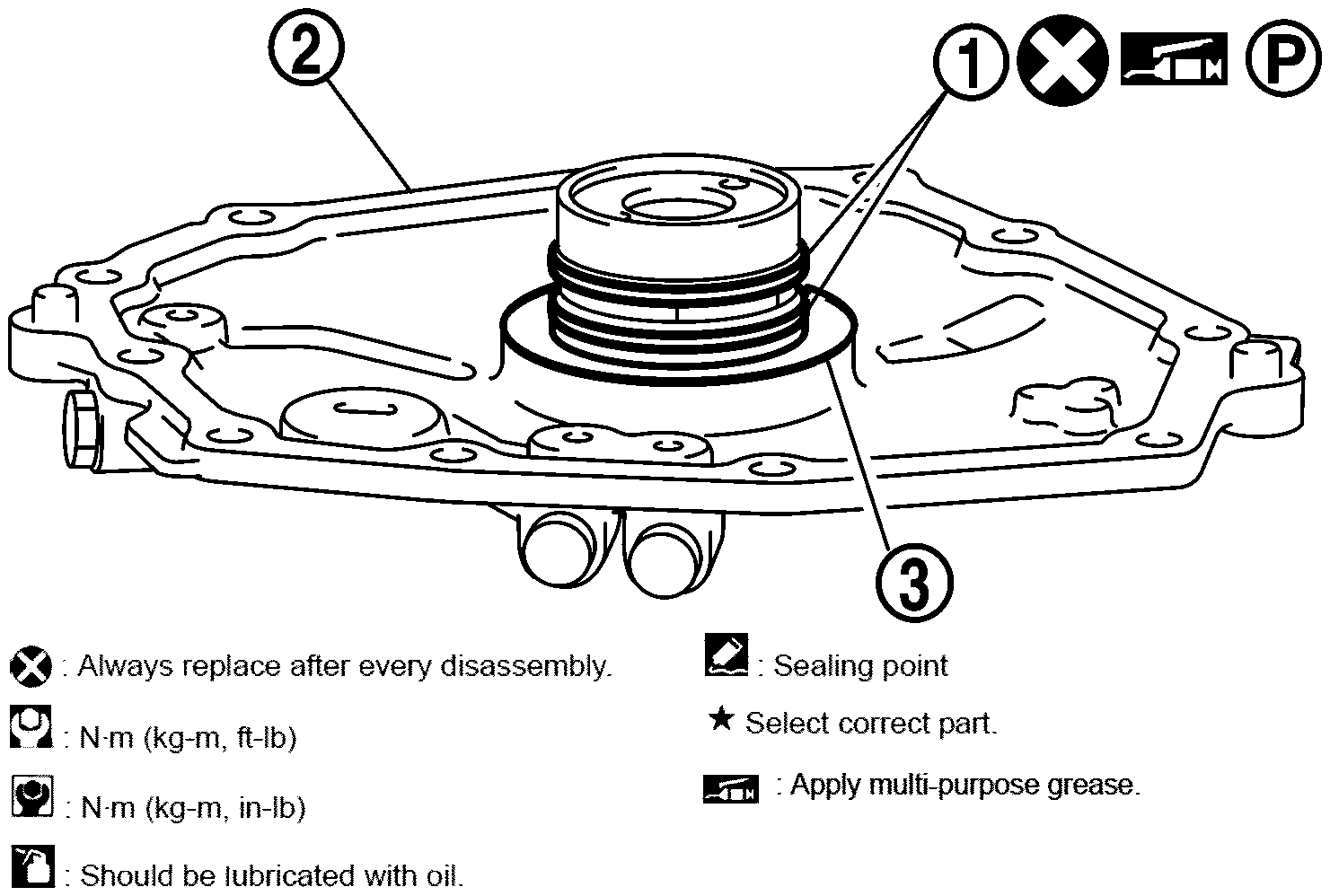

- Remove seal rings
and thrust washer
from side cover
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Loosen anchor end bolt nut
and remove anchor end bolt
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove 2-4 band brake
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove O-rings
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove accumulator return springs
and accumulator pistons
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

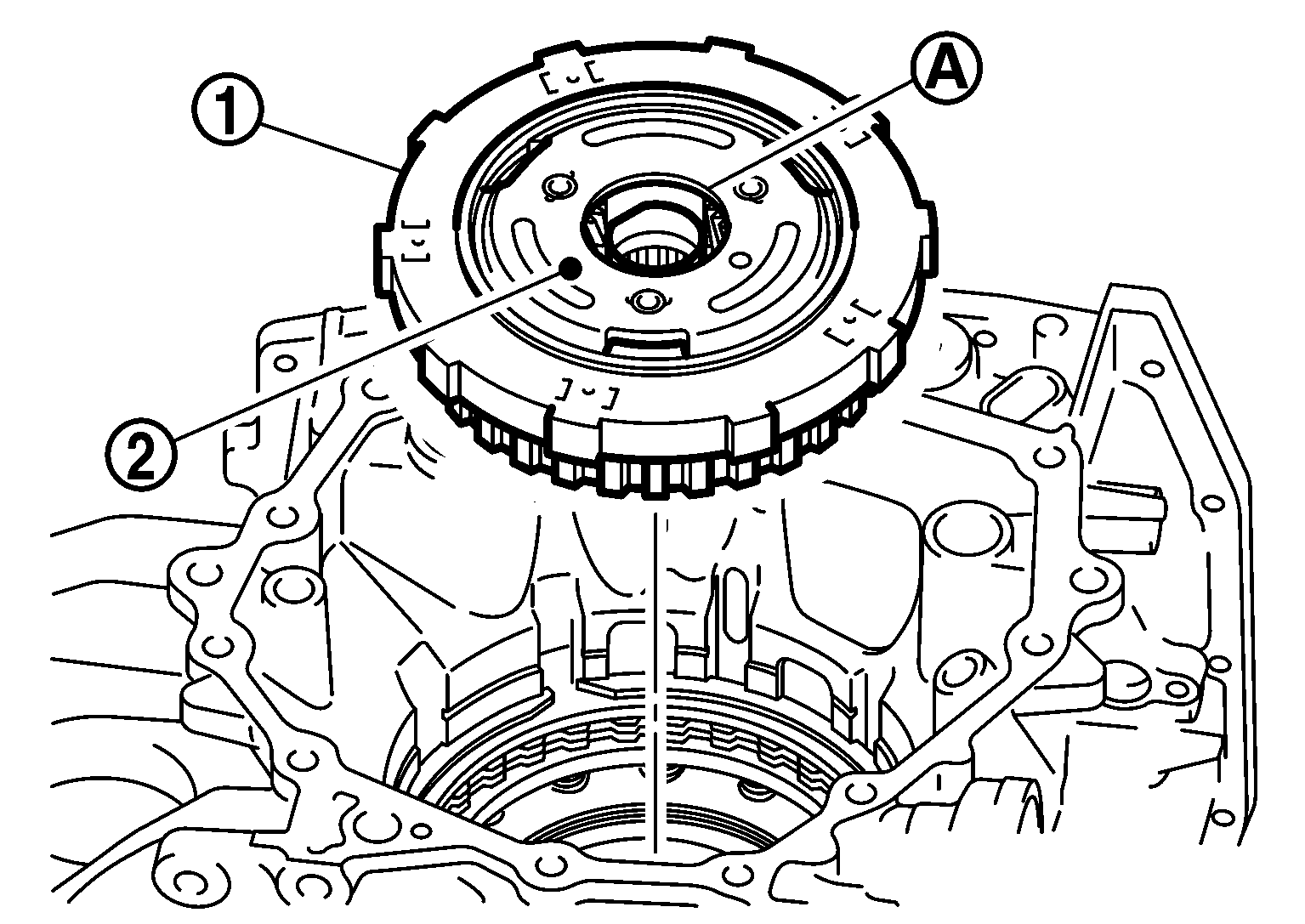

- Remove reverse clutch assembly
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove needle bearing
from high clutch assembly.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove high clutch assembly
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove seal rings
from high clutch assembly
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove needle bearing
from high clutch hub.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove high clutch hub
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove needle bearing
from front sun gear.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove front sun gear
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

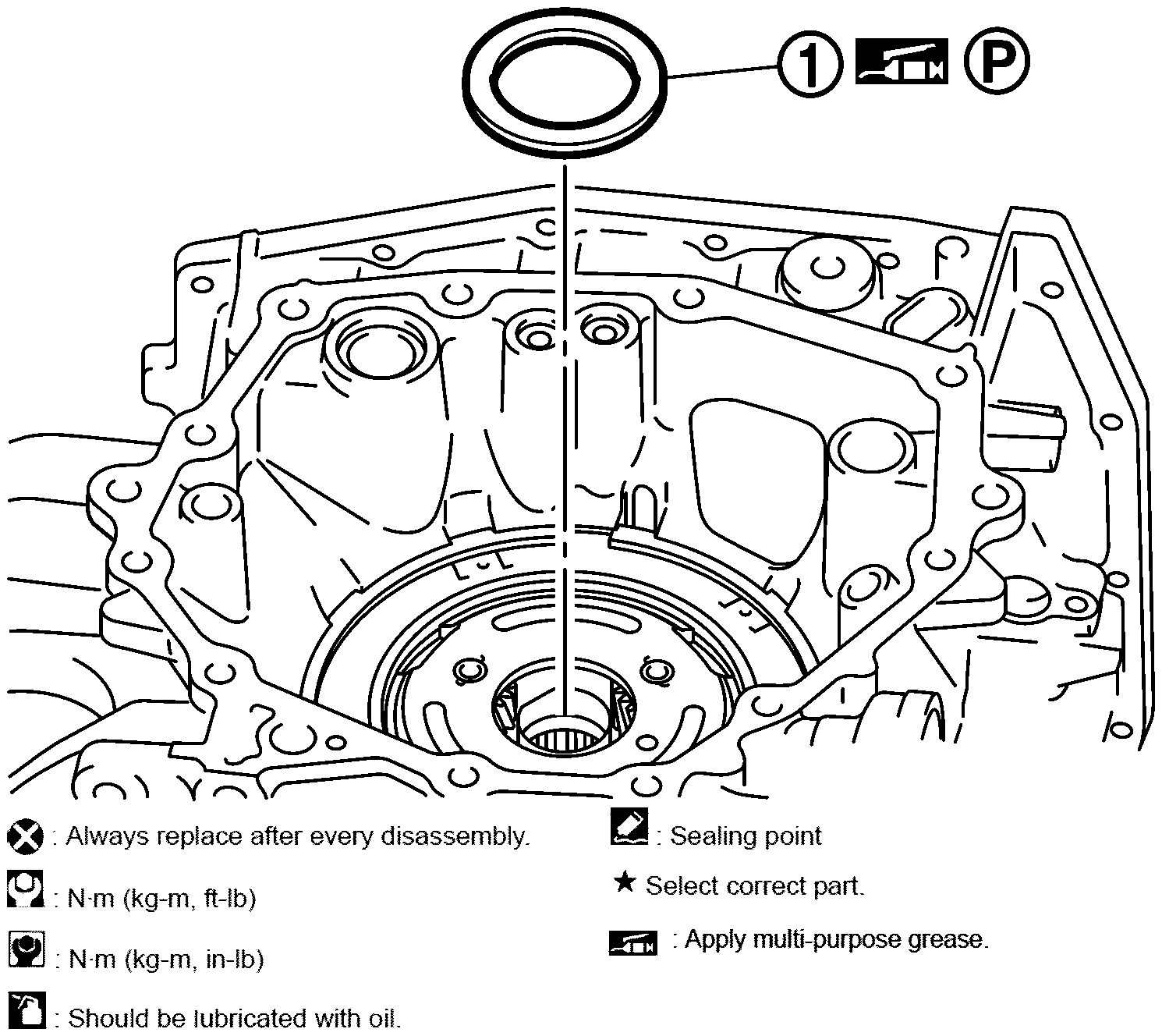

- Remove needle bearing
from front planetary carrier.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove snap ring
using a suitable tool.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Lift center portion
of front planetary carrier and remove low one way clutch
and planetary gear pack
together.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove snap ring
using a suitable tool.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove retaining plate of low & reverse brake, drive plates, driven plats, and dish plate.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove snap ring
using clutch spring compressor (A) (SST: KV31102400).
 Courtesy of NISSAN NORTH AMERICA, INC.
|

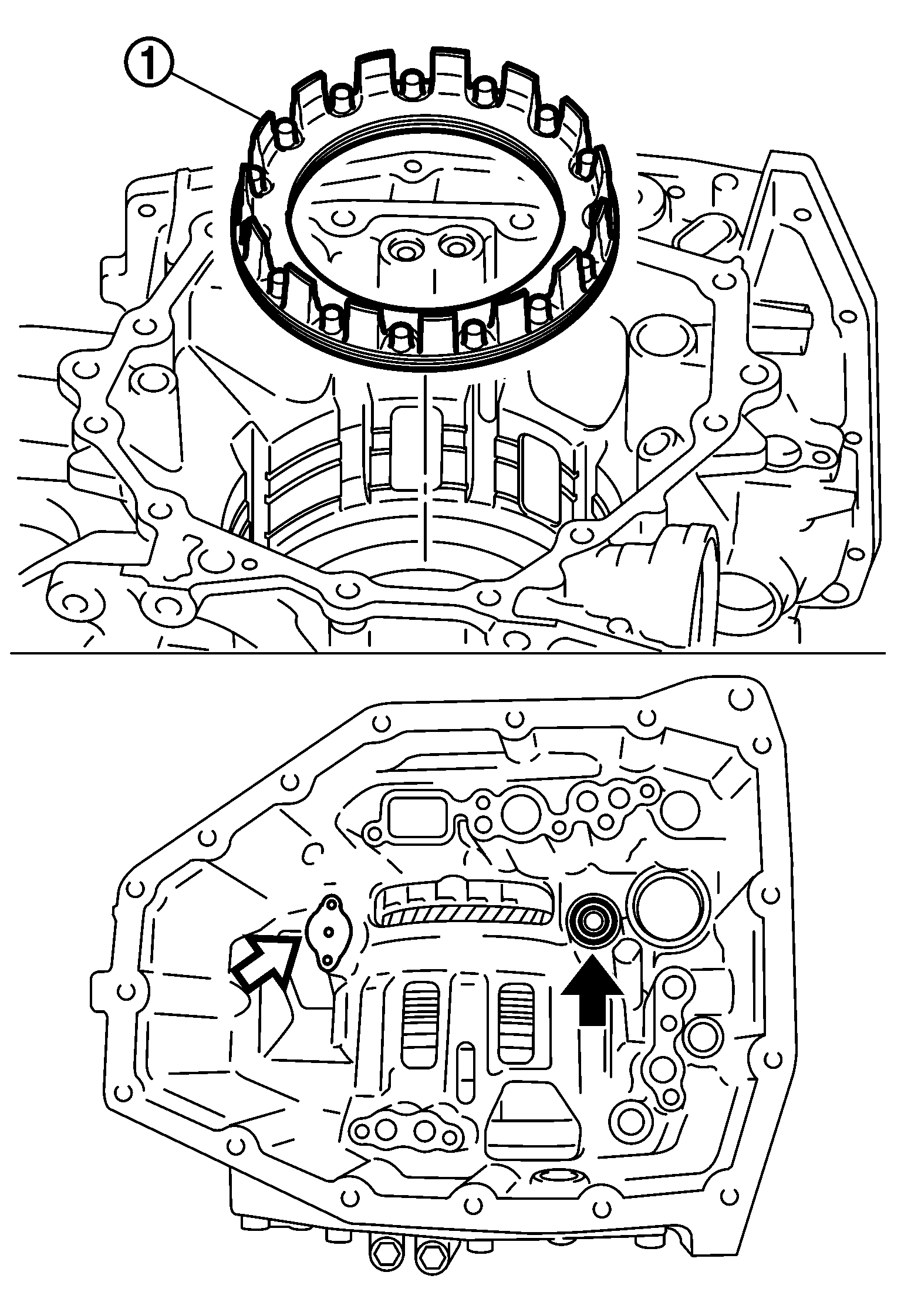

- Remove spring retainer assembly
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

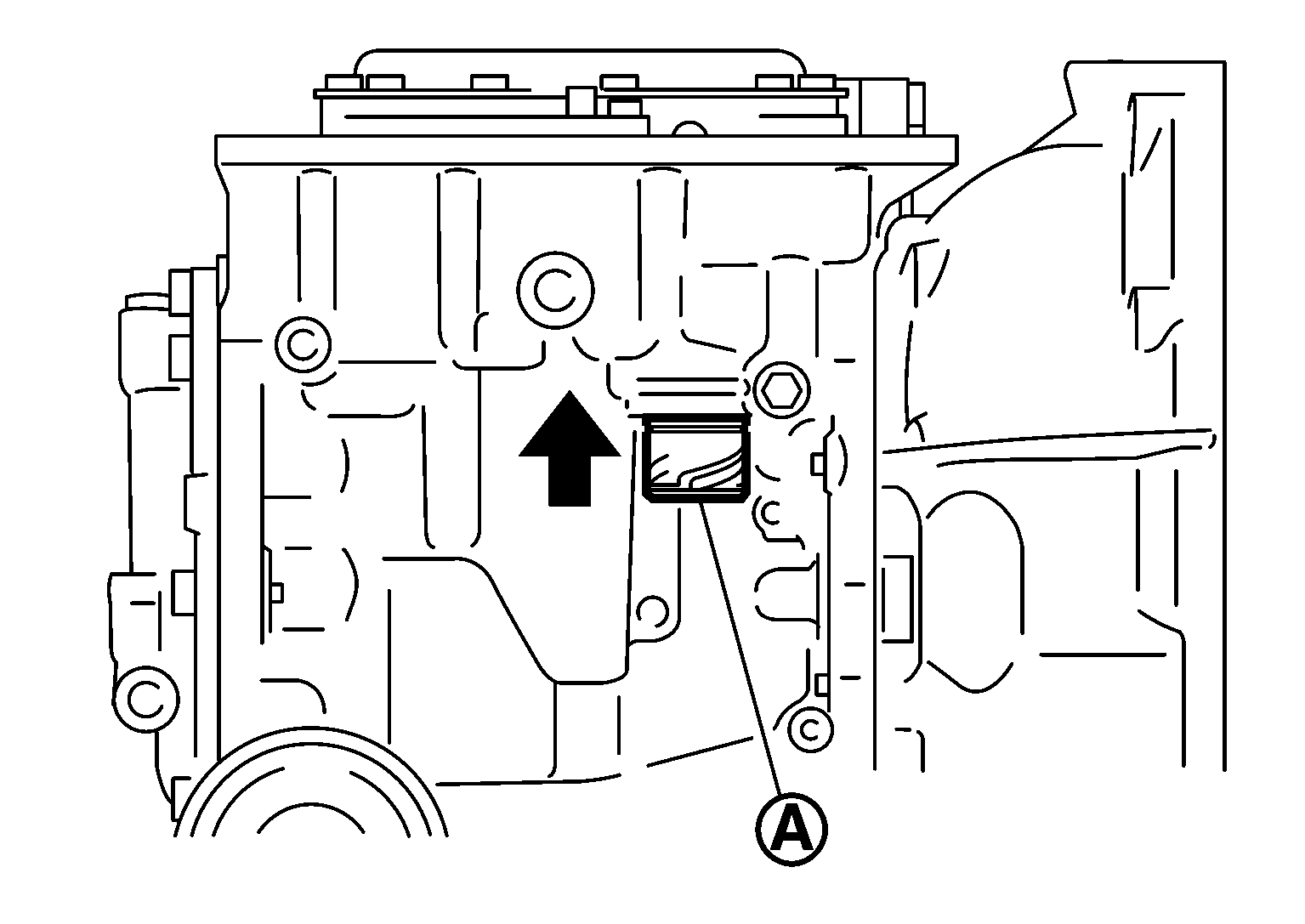

- Blow air into oil hole (
) of transaxle and remove low & reverse brake piston
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
CAUTION:
Not blow air suddenly.
NOTE:
Place retaining plate (
) and push it by hand temporarily while air blowing to avoid air leak.
- Remove D-rings
from low & reverse brake piston.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Press band servo piston retainer
using puller (A) (SST: ST33051001) and remove snap ring of band servo piston retainer.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove servo spring
, band servo piston
, and band servo piston retainer
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove D-ring
, snap ring
, washer
, and stem
from band servo piston
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove O-rings
from band servo piston
.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

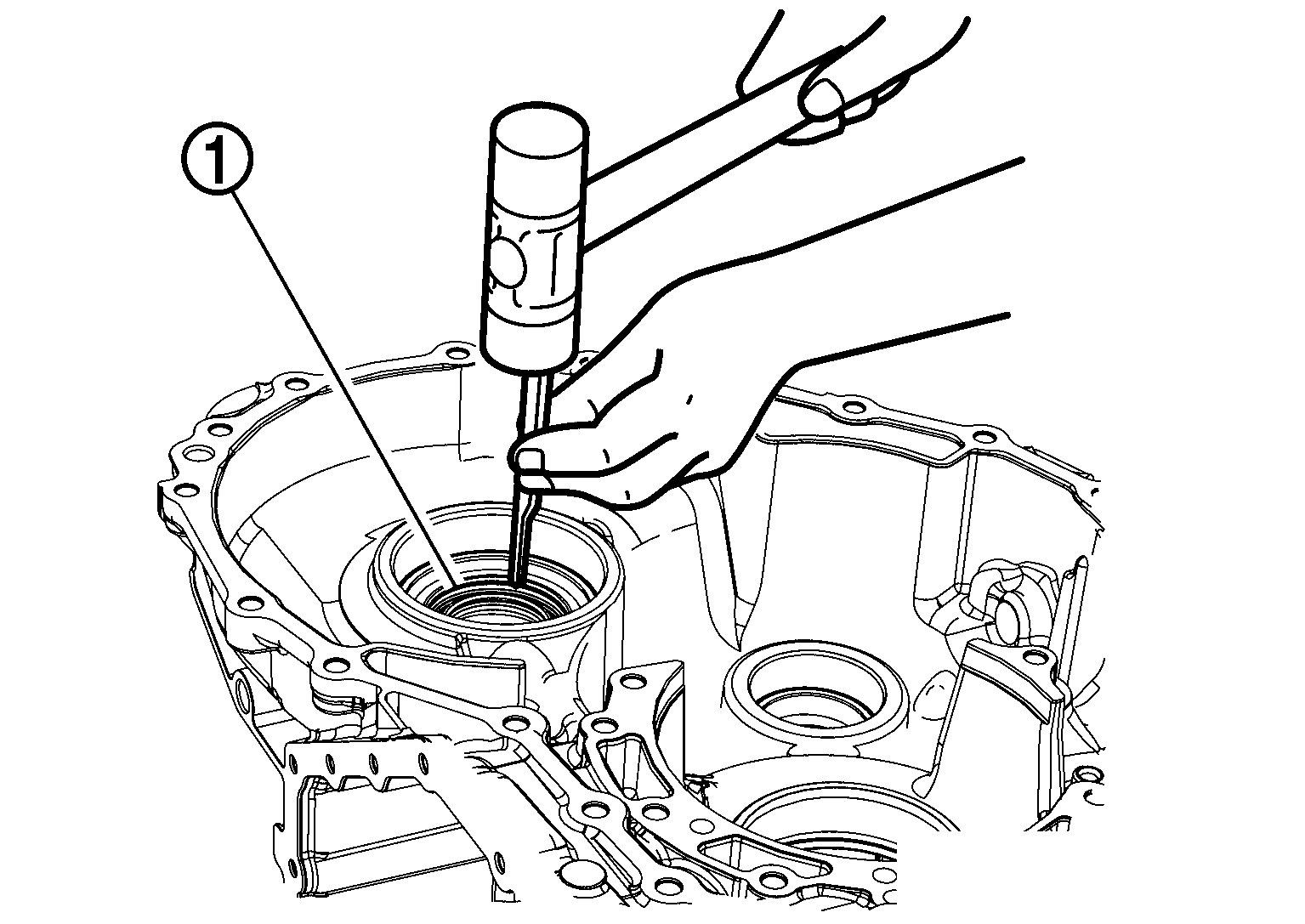

- Remove differential side oil seal
from transaxle case using suitable tool.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
CAUTION:
Never scratch transaxle case when removing side oil seal.

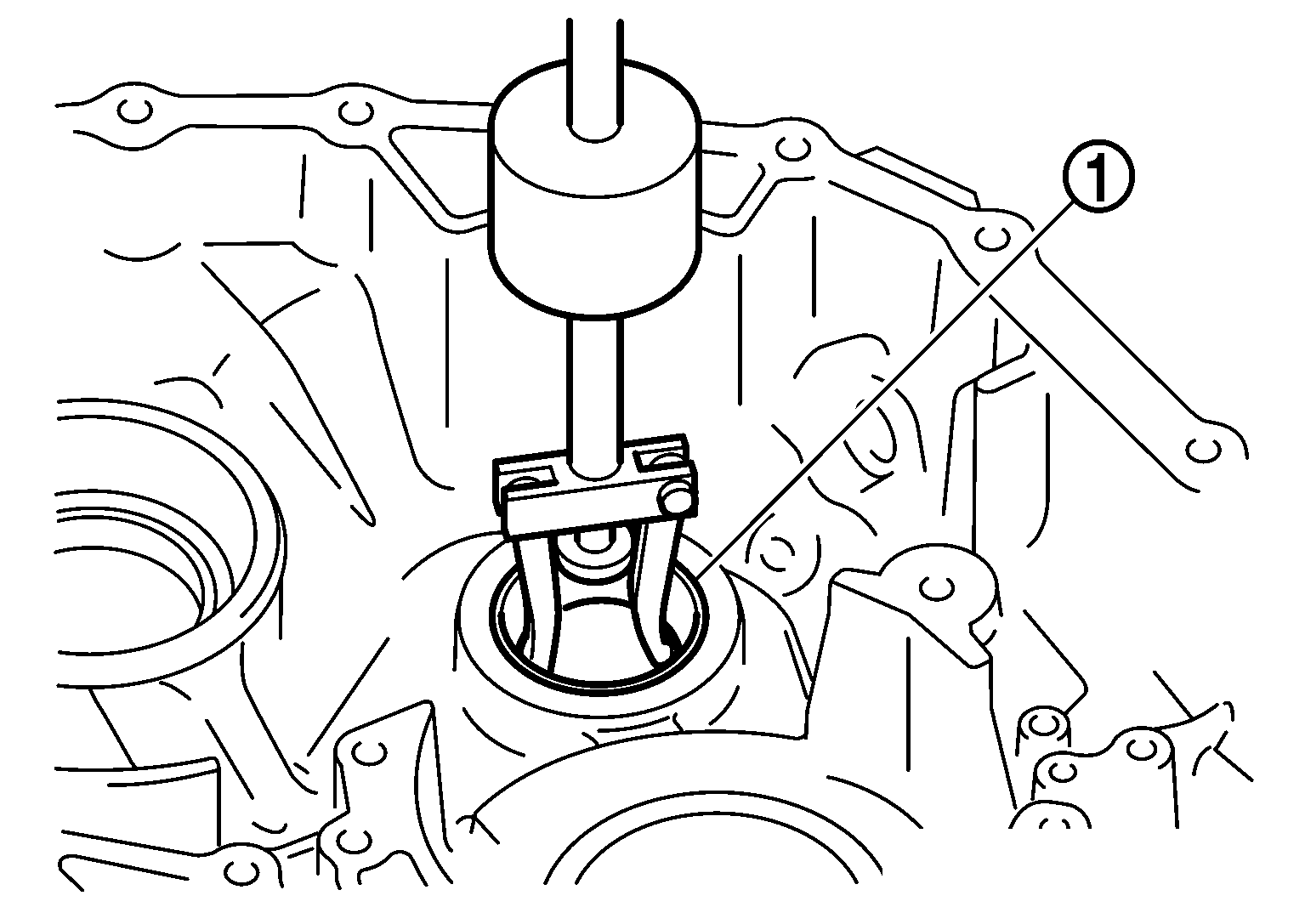

- Remove reduction pinion gear bearing outer race
from transaxle case using puller (SST: KV381054S0).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
CAUTION:
Never scratch transaxle case when removing outer race.
