Inspection Before Assembly

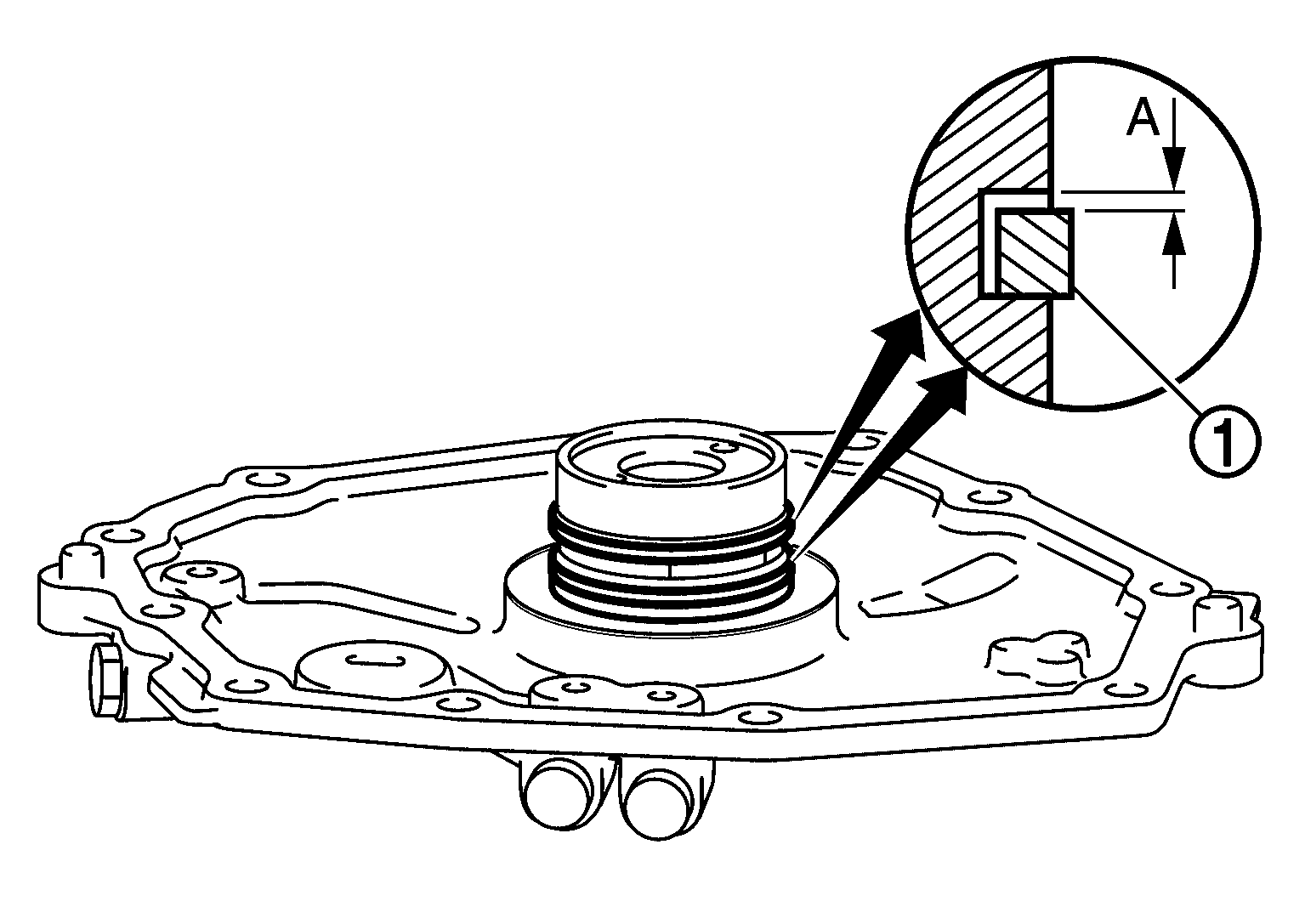

Side Cover Assembly

Install new seal ring to side cover and measure clearance (A) between seal ring and groove with thickness gage.

Courtesy of NISSAN NORTH AMERICA, INC.

Clearance (A)

CAUTION: Replace side cover assembly if clearance exceeds indicated value.

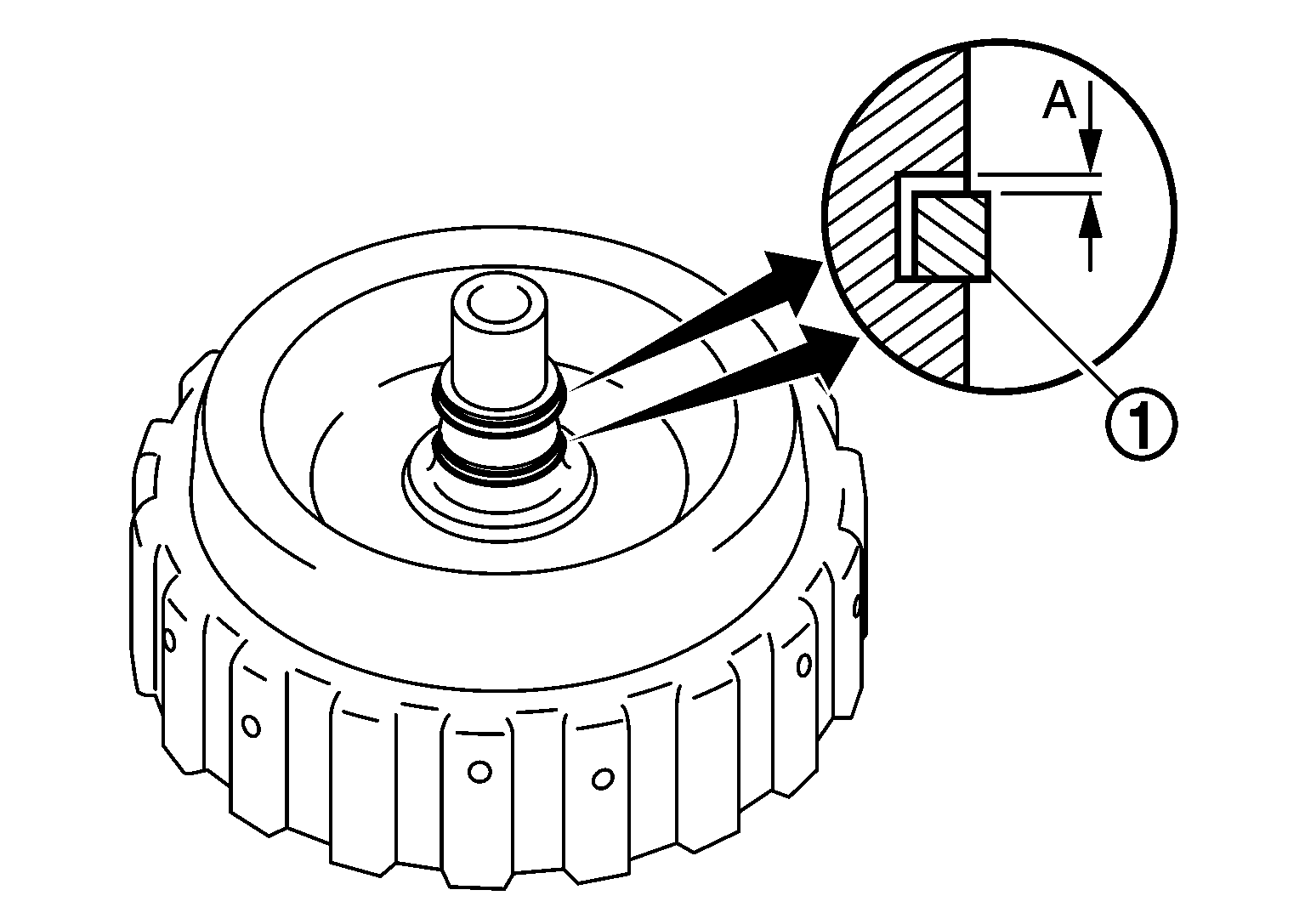

High Clutch Assembly

Install new seal ring to high clutch assembly and measure clearance (A) between seal ring and groove with thickness gage.

Courtesy of NISSAN NORTH AMERICA, INC.

Clearance (A)

: Refer to High Clutch .

CAUTION: Replace high clutch assembly if clearance exceeds indicated value.
