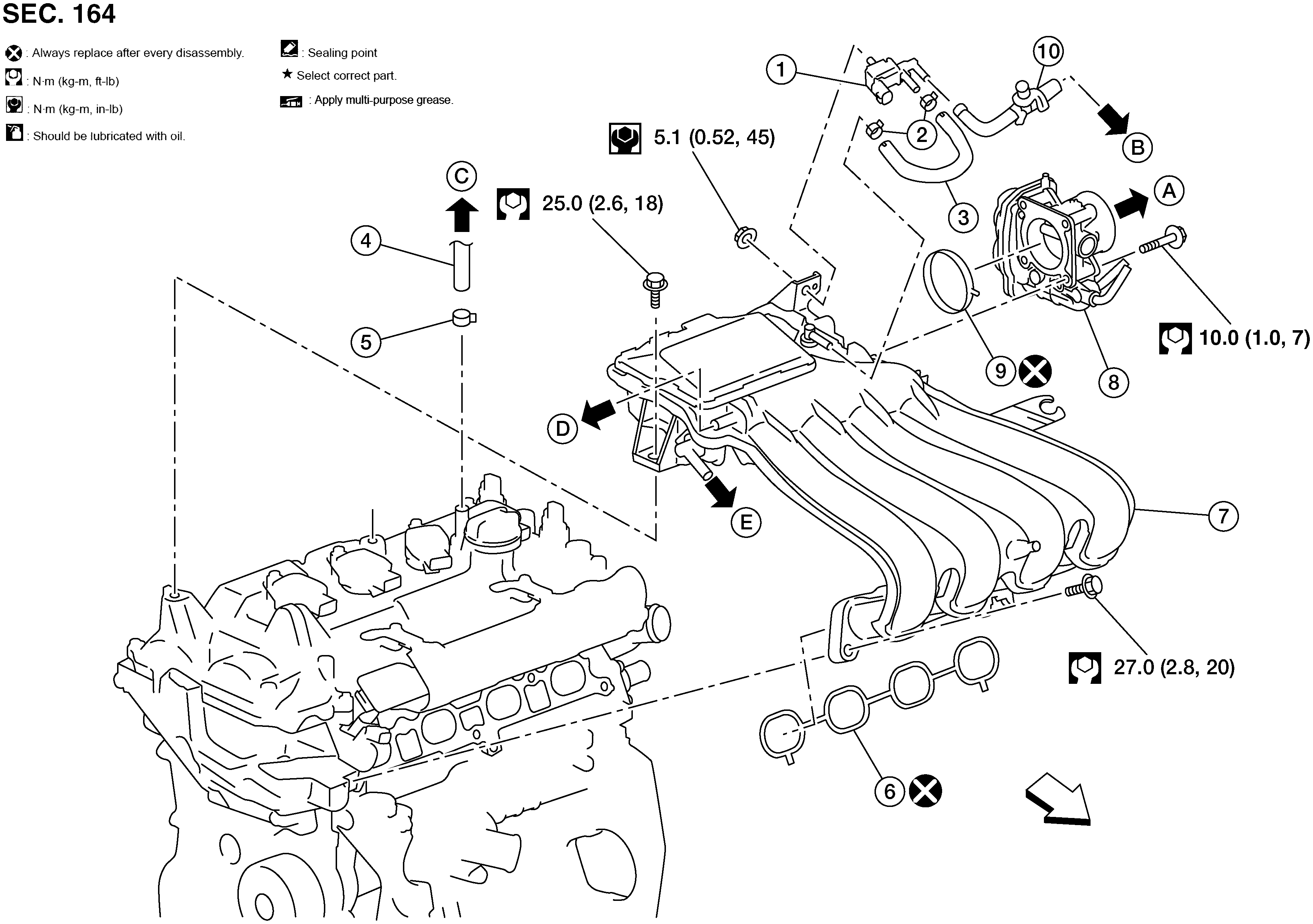

Exploded View
|
1. |
EVAP canister purge volume control solenoid valve |
2. |
Hose clamp |
3. |
Vacuum hose |
|
4. |
PCV hose |
5. |
Hose clamp |
6. |
Intake manifold gasket |
|
7. |
Intake manifold |
8. |
Electric throttle control actuator |
9. |
Electric throttle control actuator gasket |
|
10. |
EVAP service port |
A. |
To air duct. Refer to Exploded View . |
B. |
To centralized under-floor piping. Refer to Exploded View . |
|
C. |
To air duct. Refer to Exploded View . |
D. |
To brake booster. Refer to Exploded View . |
E. |
To PCV valve in rocker cover. Refer to Exploded View . |
|
|
Front |
