Engine Control System
›
System Description
›
System
›

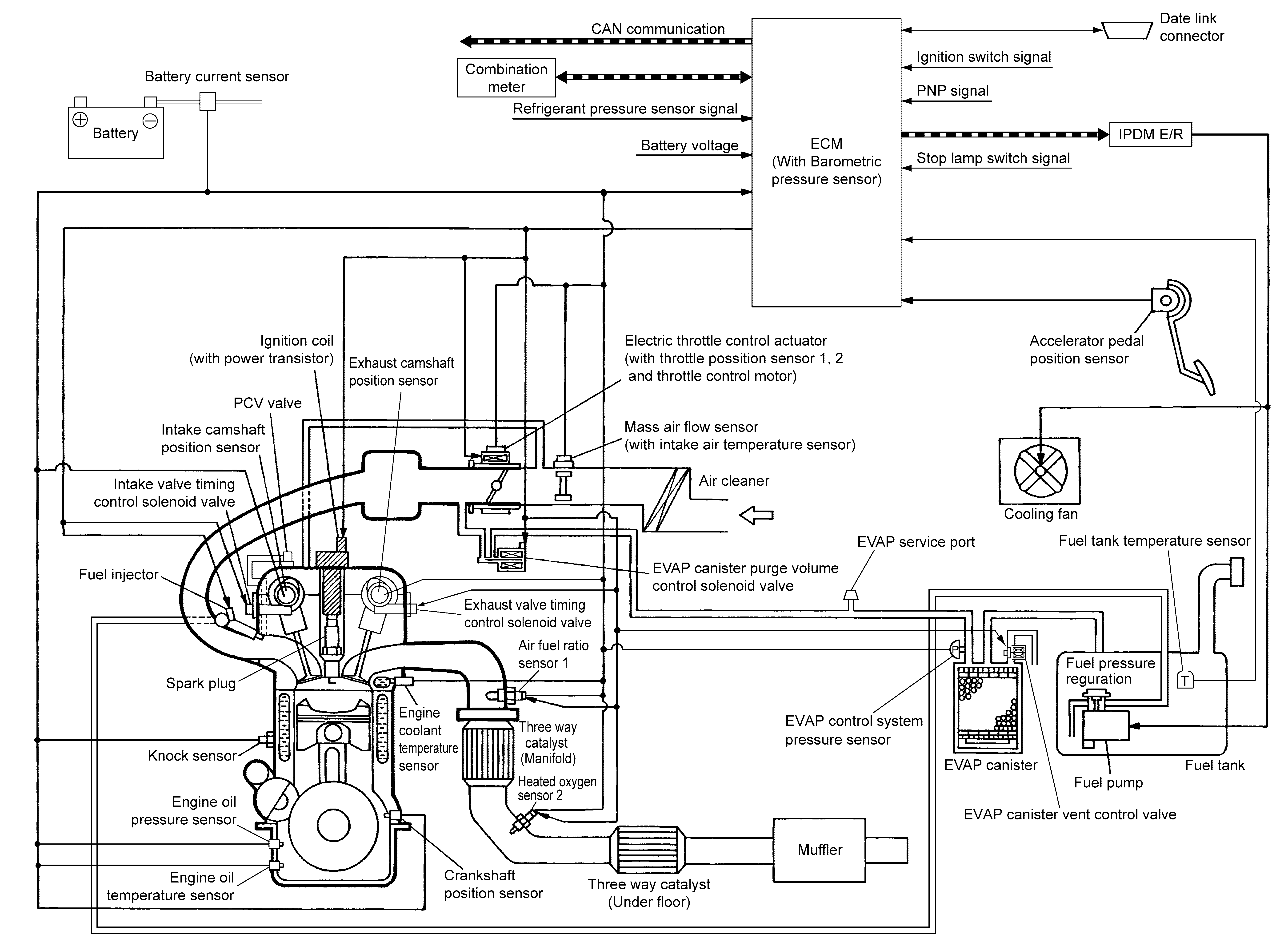

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Battery current sensor is not applicable.
Intake camshaft position sensor is same as camshaft position sensor.
Exhaust camshaft position sensor is same as exhaust valve timing control position sensor.
Courtesy of NISSAN NORTH AMERICA, INC.
