Exploded View
Exploded View

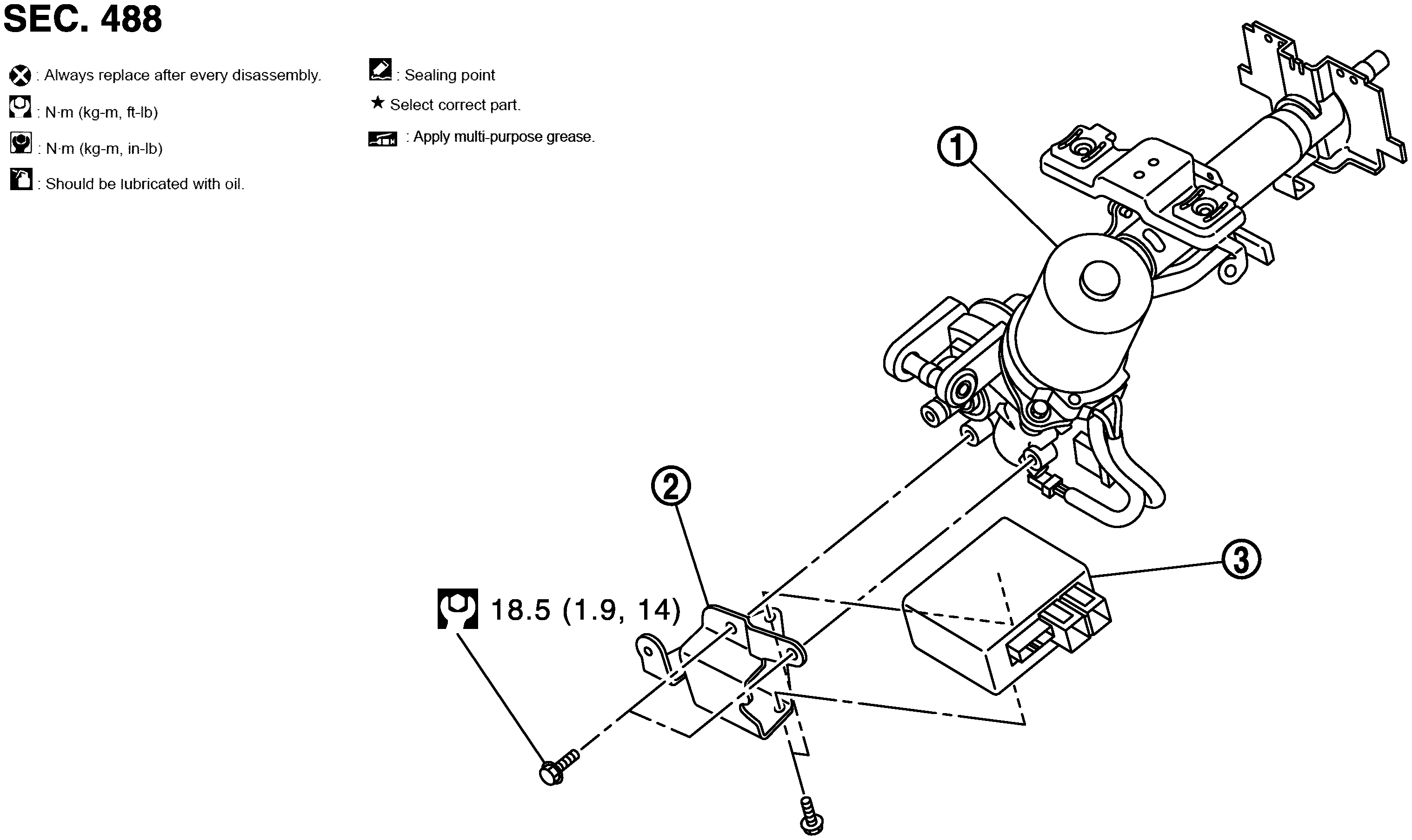

Fig 1: Exploded View Of EPS Control Unit With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column assembly
2.
Bracket
3.
EPS control unit
Courtesy of NISSAN NORTH AMERICA, INC.
