Starter Motor
›

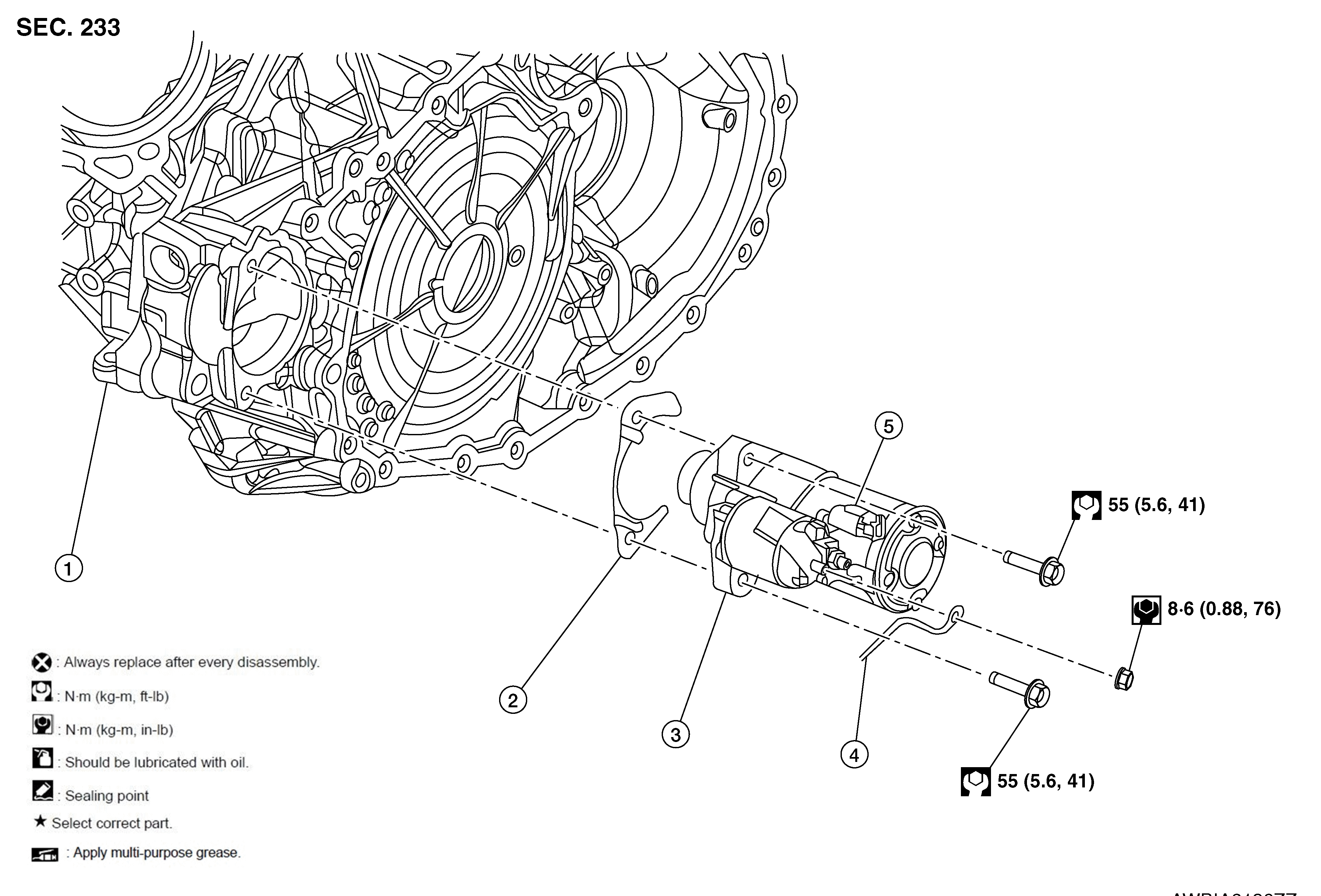

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Cylinder block
2.
Shim
3.
Starter
4.
"B" terminal harness
5.
"S" connector
Courtesy of NISSAN NORTH AMERICA, INC.
