Exploded View

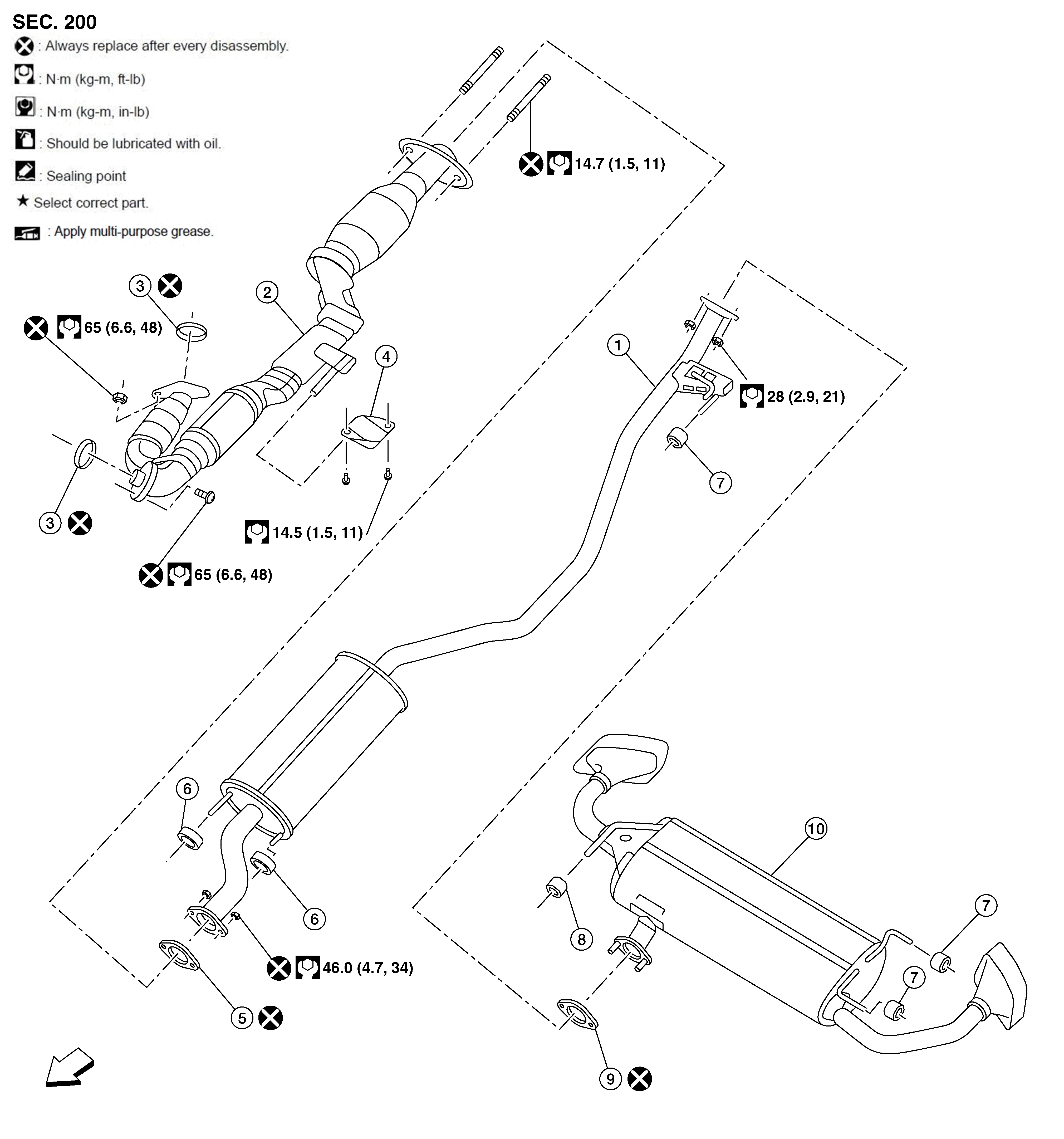

Fig 1: Exhaust System With Torque Specifications

GNSAWBIA2479Z-479

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Center exhaust tube	2.	Front exhaust tube	3.	Ring gasket
4.	Front exhaust tube bracket	5.	Gasket	6.	Mounting rubber
7.	Mounting rubber	8.	Mounting rubber	9.	Gasket
10.	Muffler		Front
