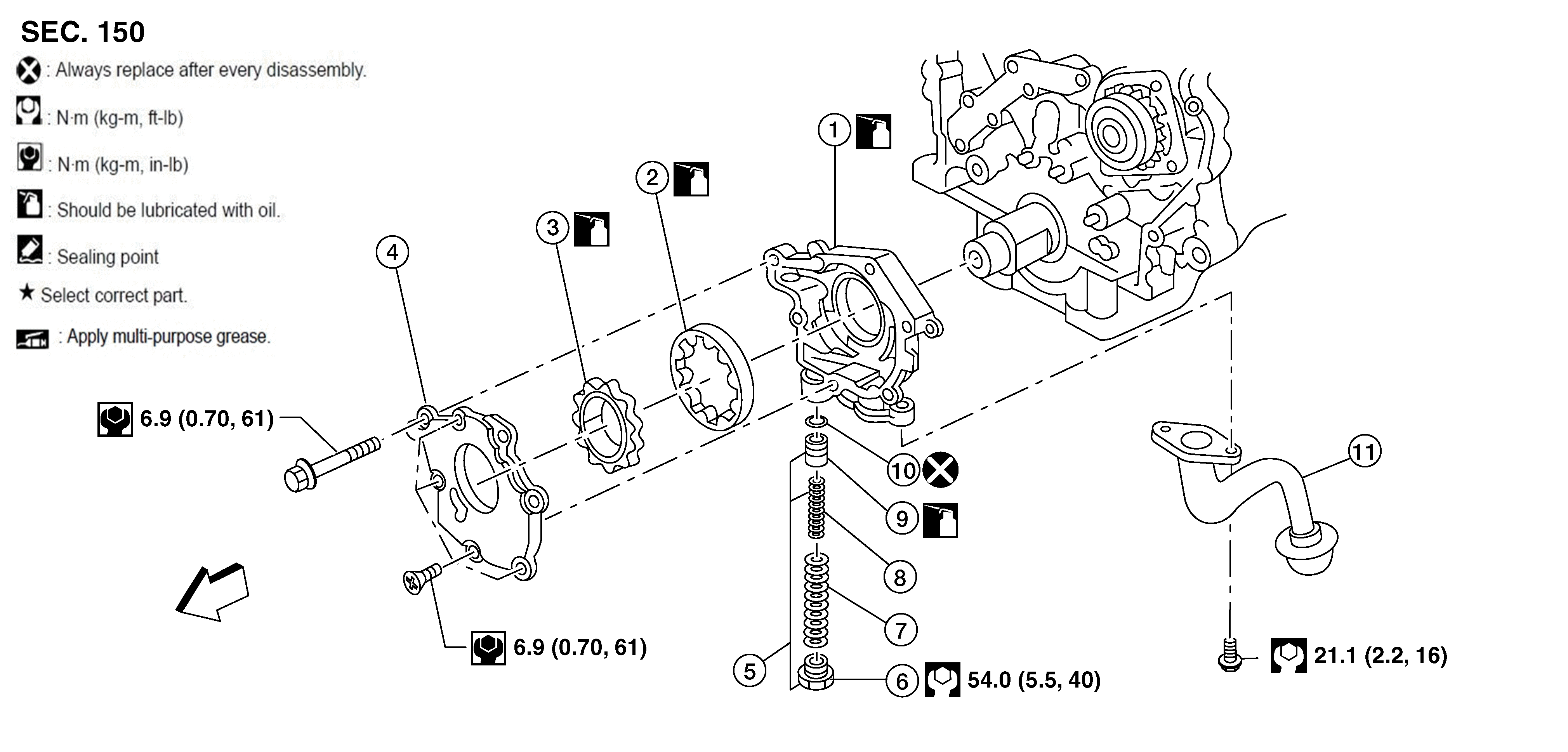

Exploded View
|
1. |
Oil pump housing |
2. |
Outer pump outer rotor |
3. |
Oil pump inner rotor |
|
4. |
Oil pump cover |
5. |
Regulator valve set assembly |
6. |
Regulator valve plug |
|
7. |
Regulator valve spring |
8. |
Regulator valve spring |
9. |
Regulator valve |
|
10. |
Regulator valve O-ring |
11. |
Oil strainer |
|
Engine front |
CAUTION:
Before assembly, apply new engine oil to the parts as shown.
