Exploded View

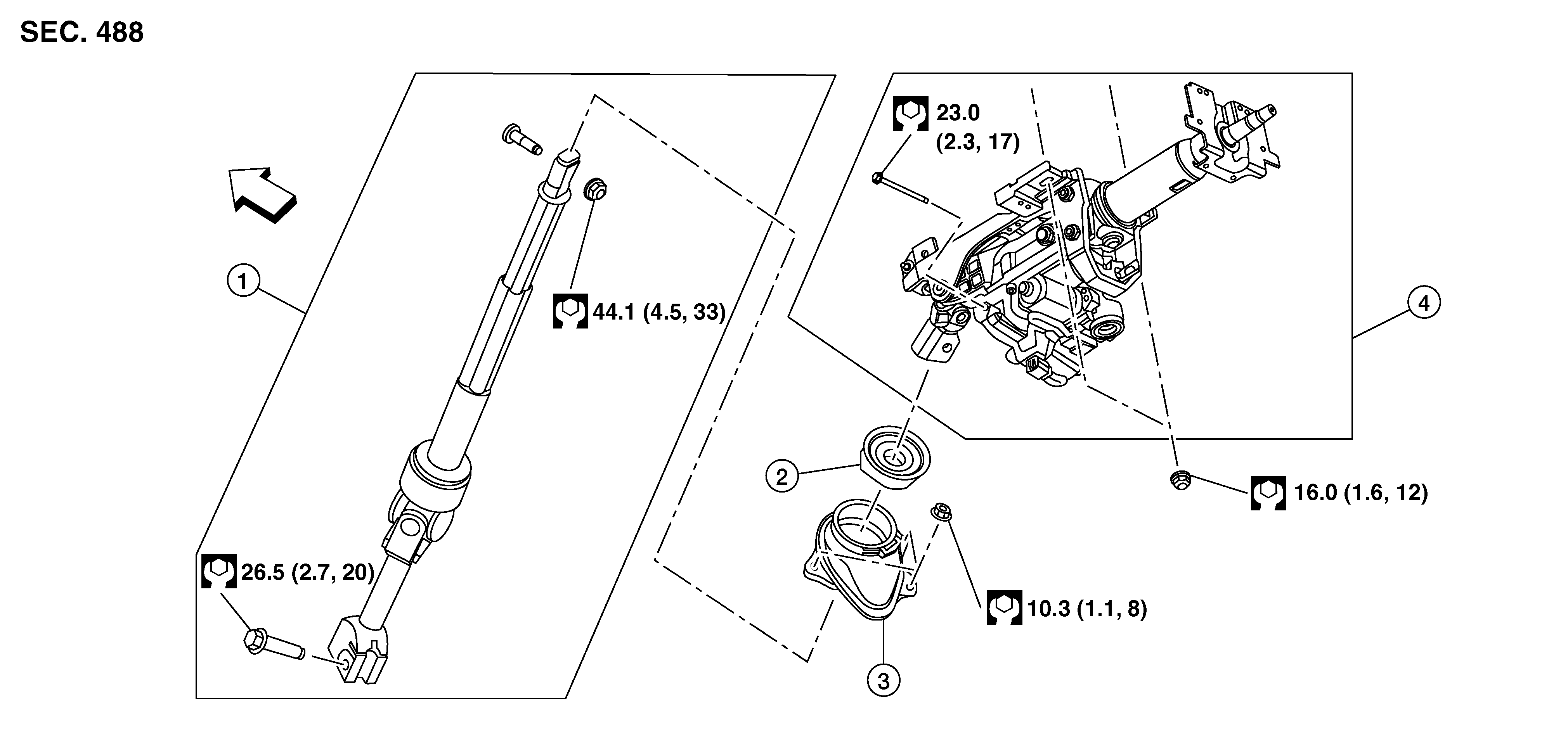

Fig 1: Steering Column Without Tilt And Telescopic Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Intermediate shaft	2.	Hole cover seal	3.	Hole cover
4.	Steering column		Front

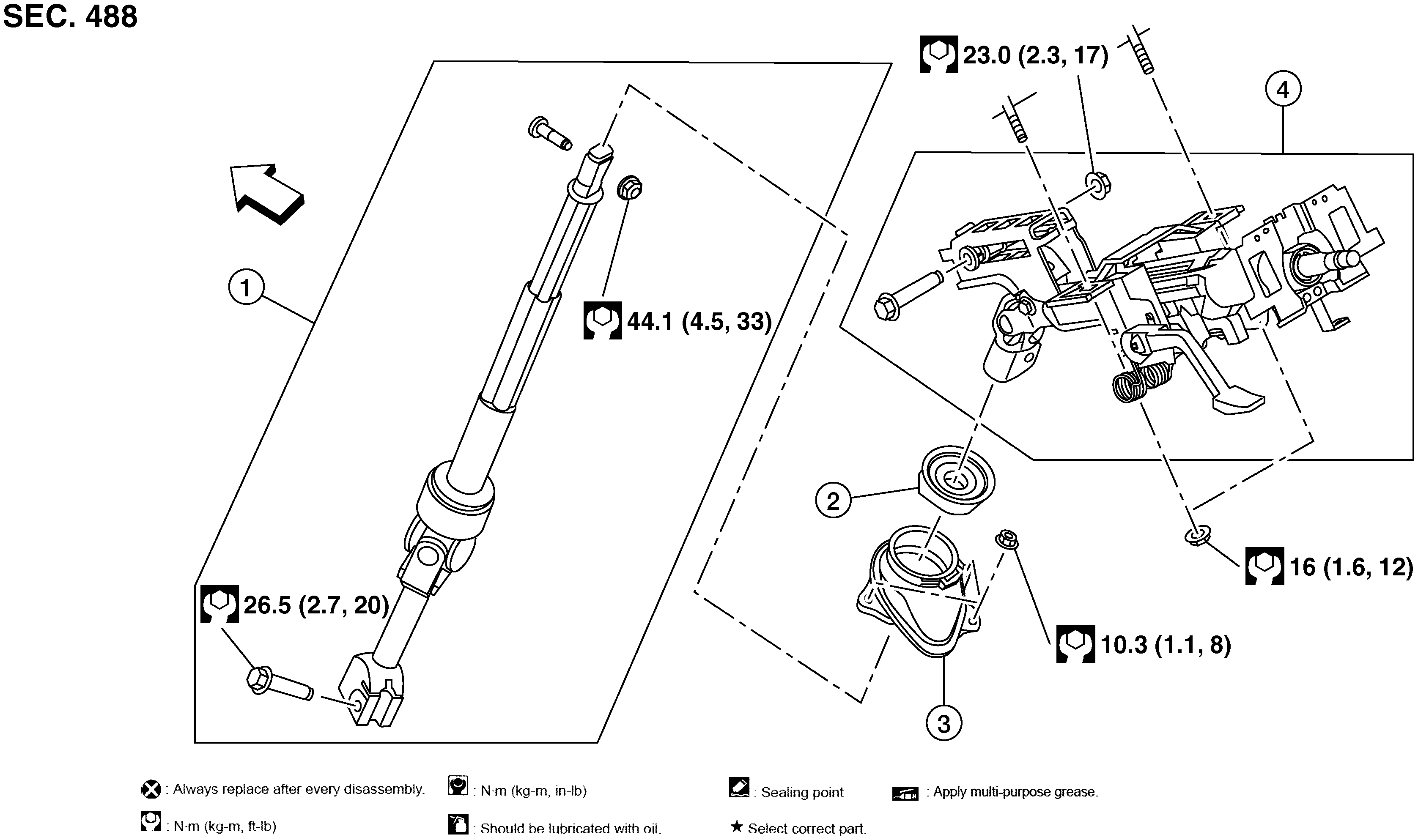

Fig 2: Steering Column With Tilt And Telescopic Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Intermediate shaft	2.	Hole cover seal	3.	Hole cover
4.	Steering column		Front
