Ignition Timing: Inspection

1. Perform INSPECTION MODE 1. Refer to Description .
2. Start engine and warm engine up to the normal operating temperature.

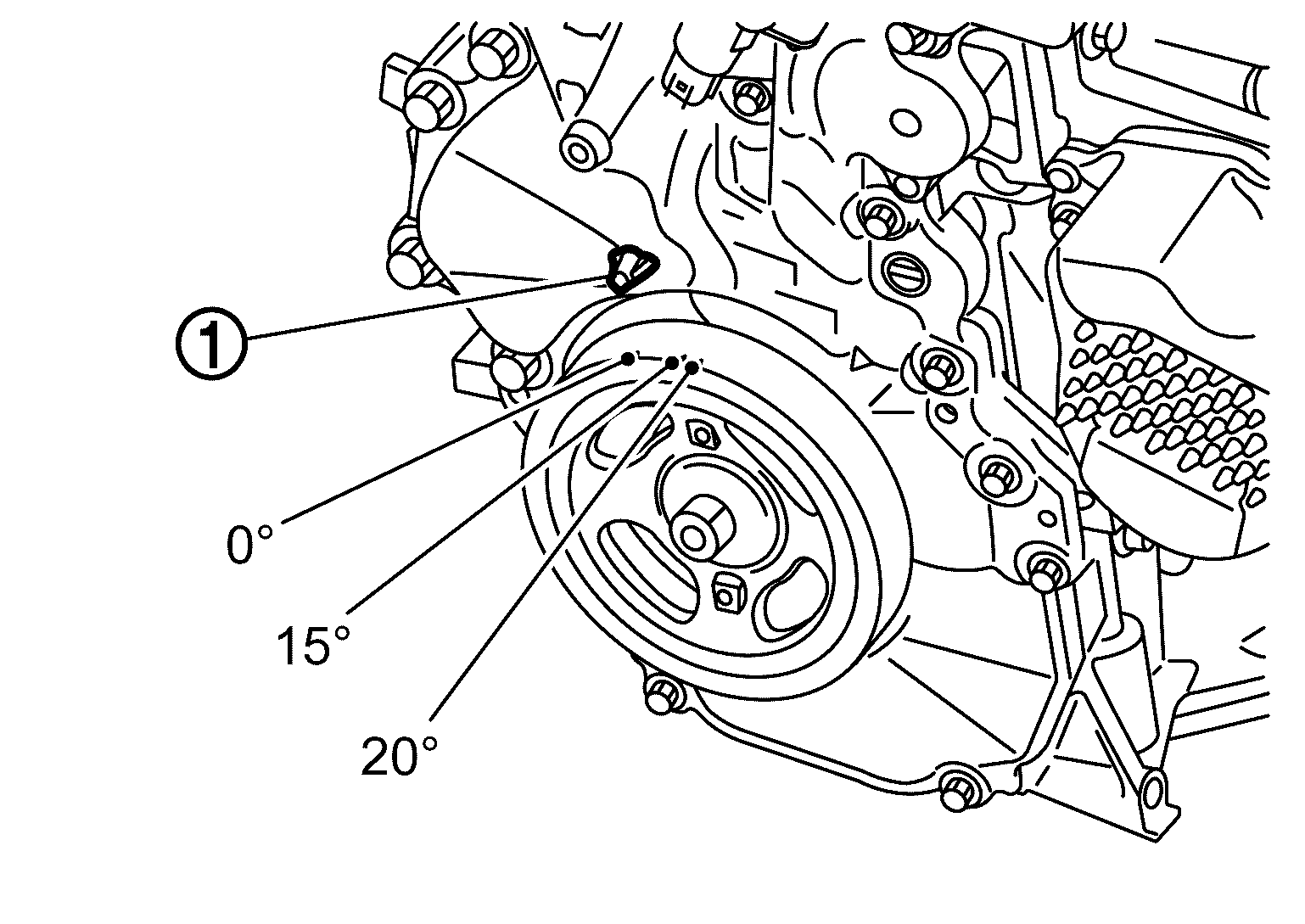

3. Attach timing light to wire loop as shown below.
4. Check ignition timing.

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Timing indicator

INSPECTION END
