Exploded View

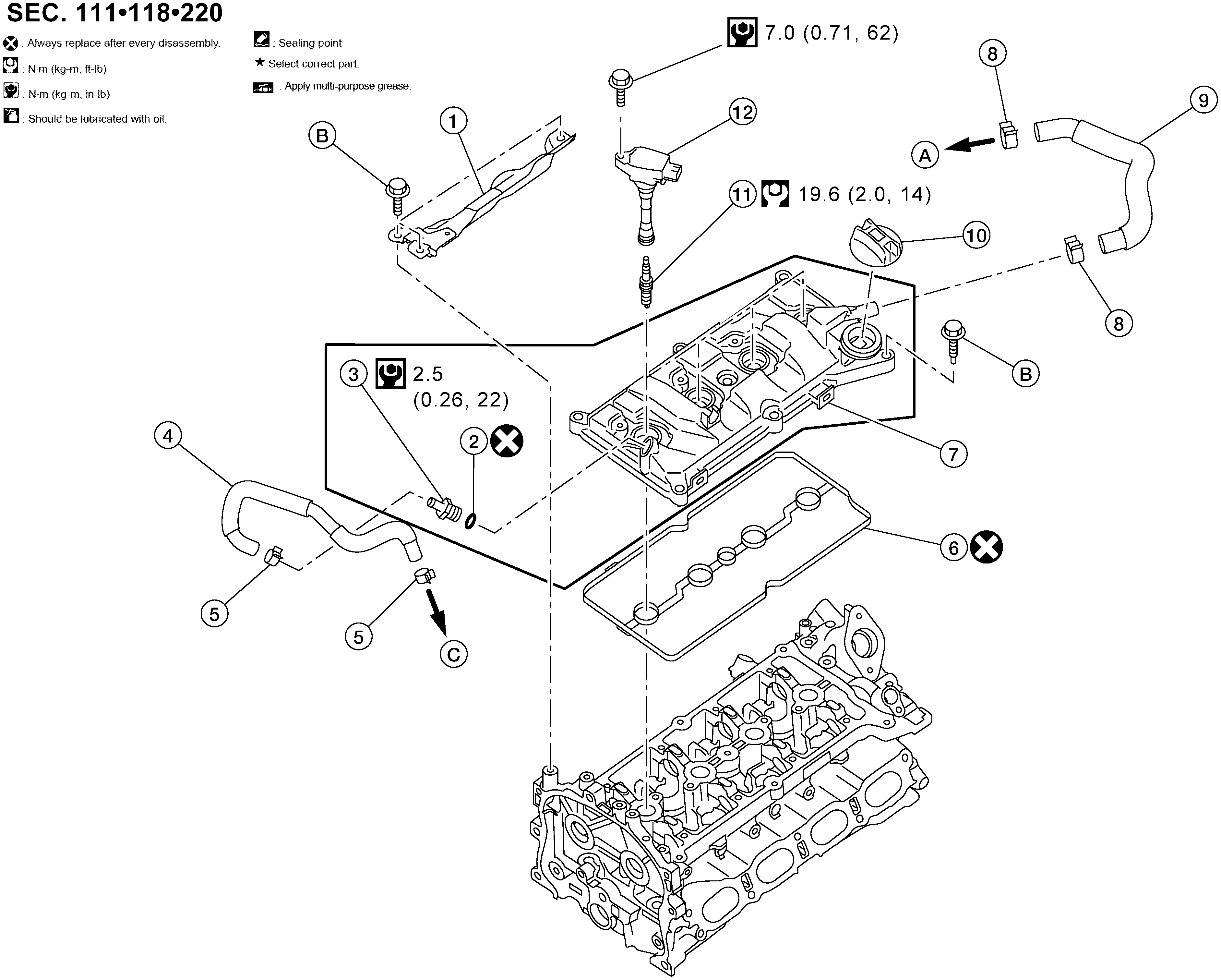

Fig 1: Ignition Coil Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rocker cover protector	2.	O-ring	3.	PCV valve
4.	PCV hose	5.	Clamp	6.	Rocker cover gasket
7.	Rocker cover	8.	Clamp	9.	Blowby hose
10.	Oil filler cap	11.	Spark plug	12.	Ignition coil
A.	To turbocharger inlet tube.Refer to Exploded View	B.	Refer to Removal and Installation .	C.	To intake manifold.Refer to Exploded View
