Exploded View: MRA8DE

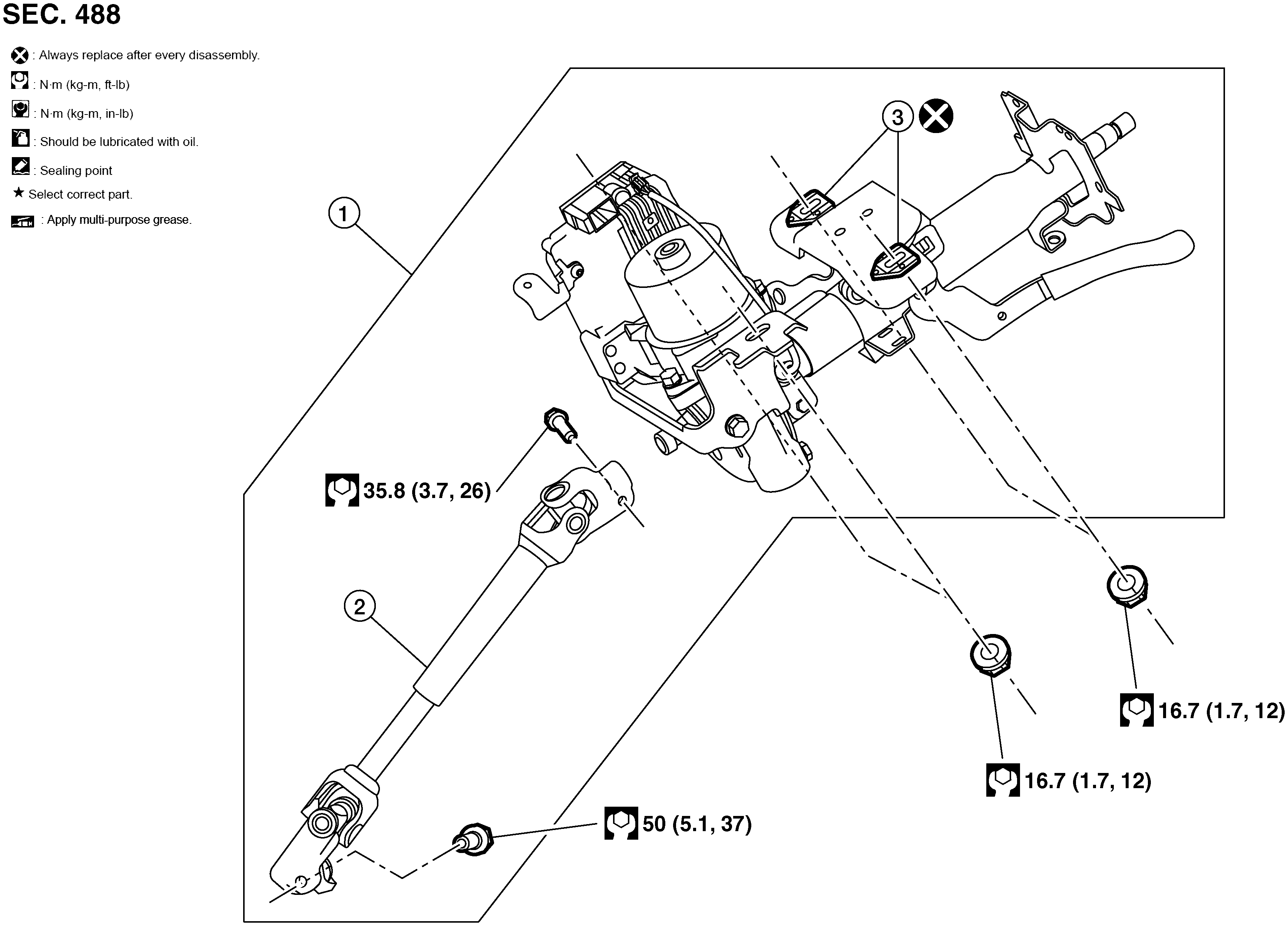

Fig 1: Steering Column Replacement Components With Torque Specifications (MRA8DE)

GNSALGIA0115Z-115

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Lower joint

3.

Slide plates
