Audio Unit
›

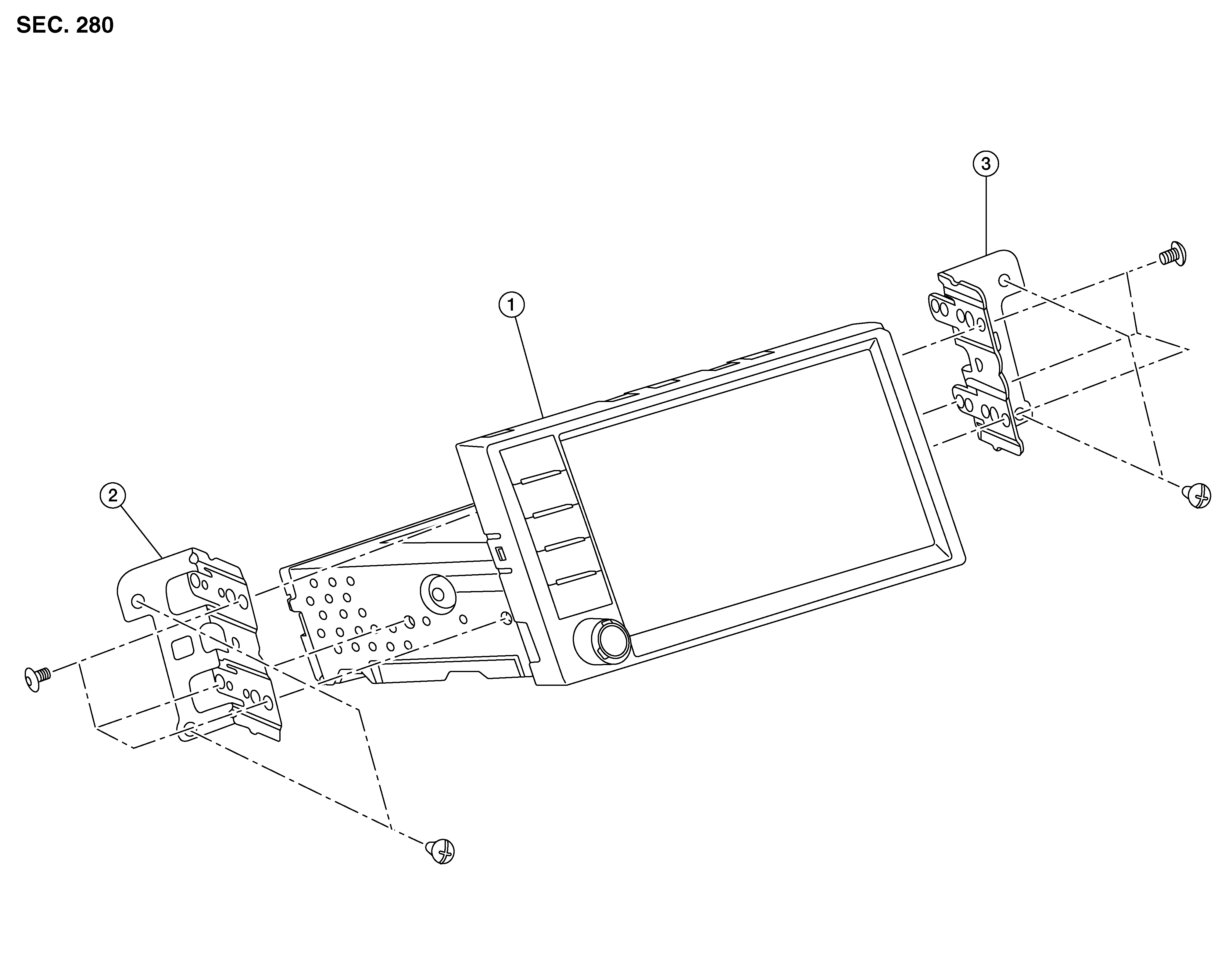

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Audio unit
2.
Audio unit bracket (LH)
3.
Audio unit bracket (RH)
Courtesy of NISSAN NORTH AMERICA, INC.
