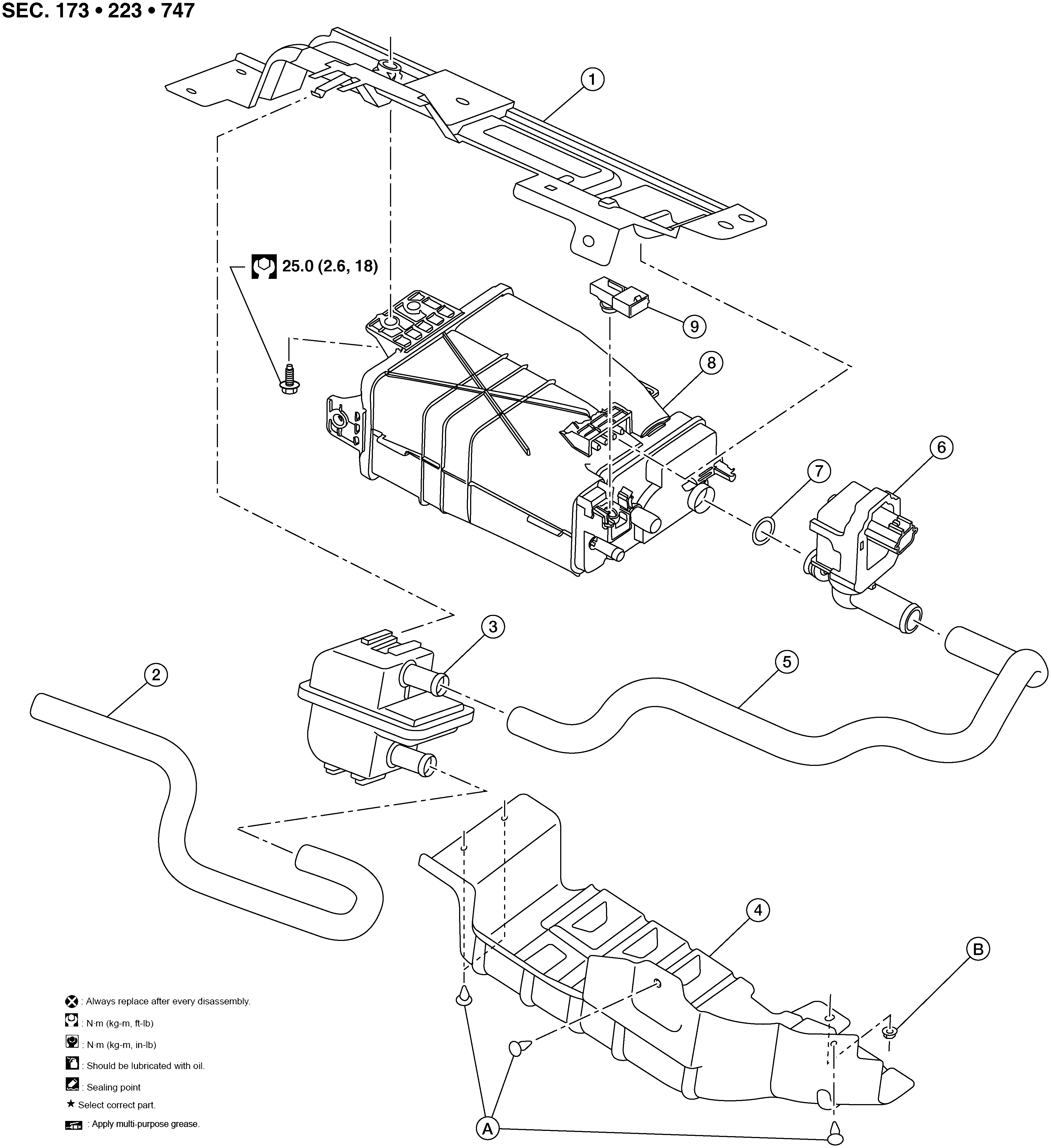

1.
EVAP canister bracket
2.
EVAP canister filter drain hose
3.
EVAP canister filter
4.
EVAP canister protector
5.
EVAP hose
6.
EVAP canister vent control valve
7.
O-ring
8.
EVAP canister
9.
EVAP canister control pressure sensor (with O-ring)
A.
Clip
B.
Nut
