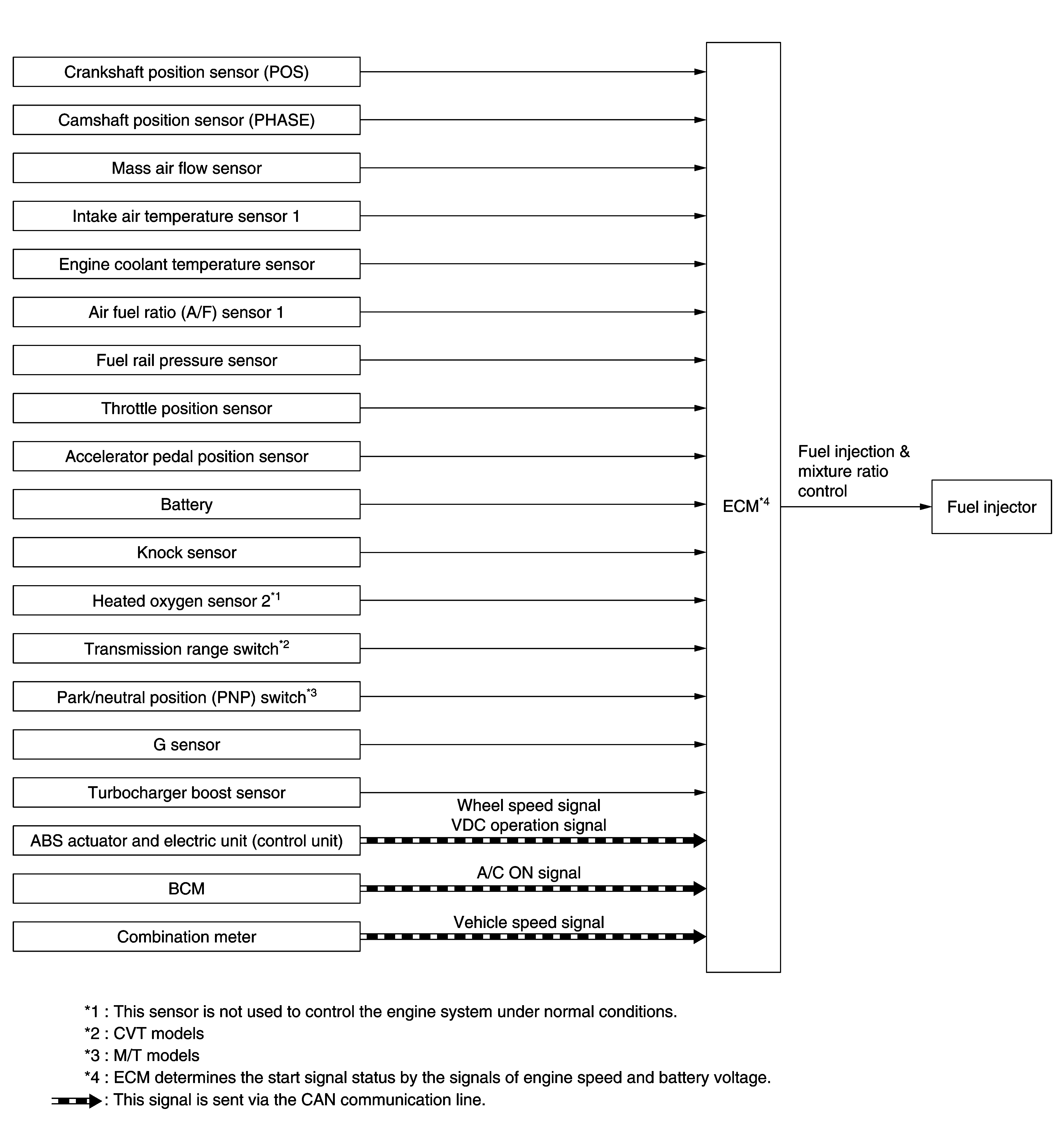

System Diagram

WARNING: This page is about a different variant/trim than selected.
G08096986Courtesy of NISSAN NORTH AMERICA, INC.
