Exploded View: MRA8DE

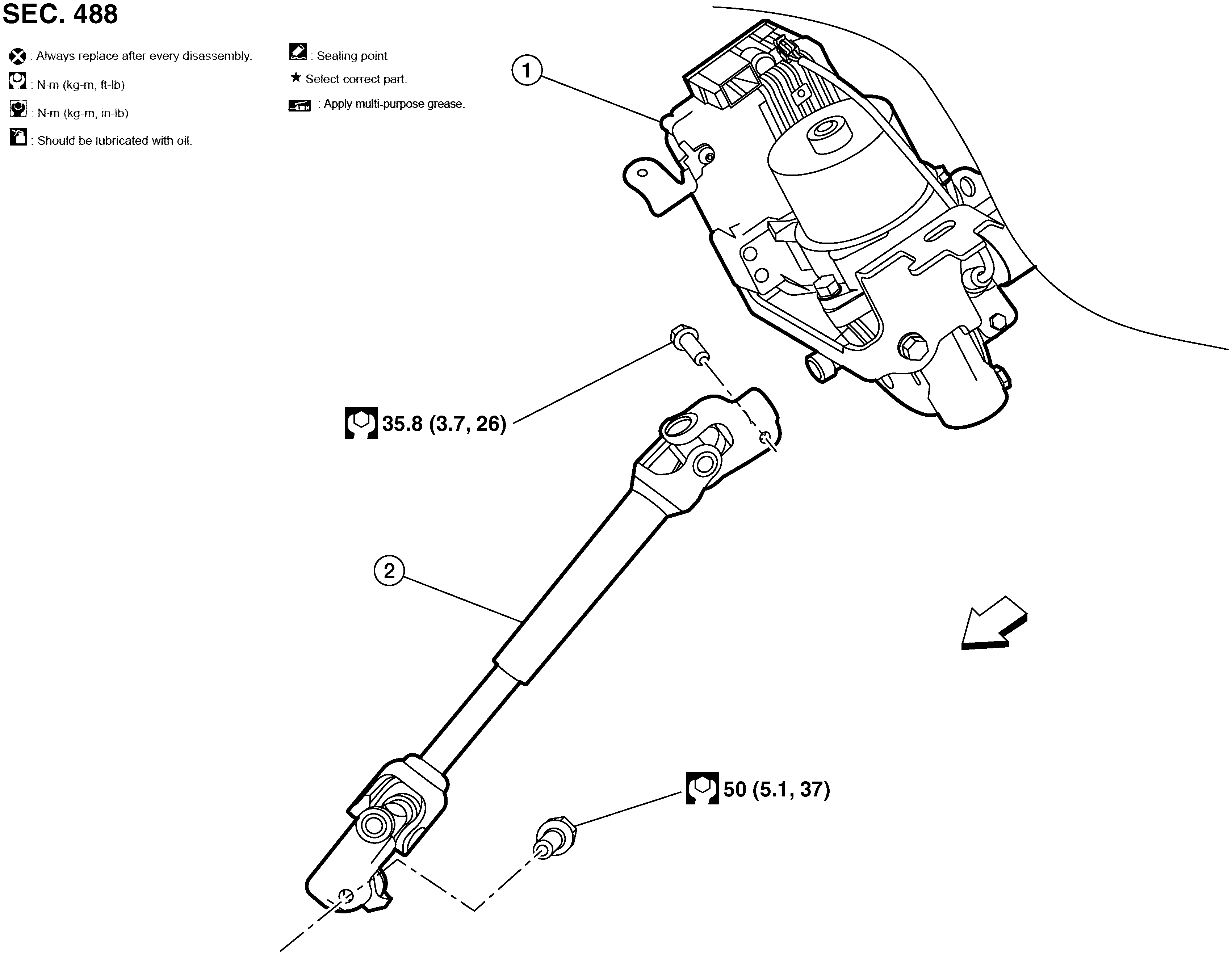

Fig 1: Steering Column Replacement Components With Torque Specifications (MRA8DE)

GNSALGIA0117Z-117

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Lower joint

Front
