Component Parts Location

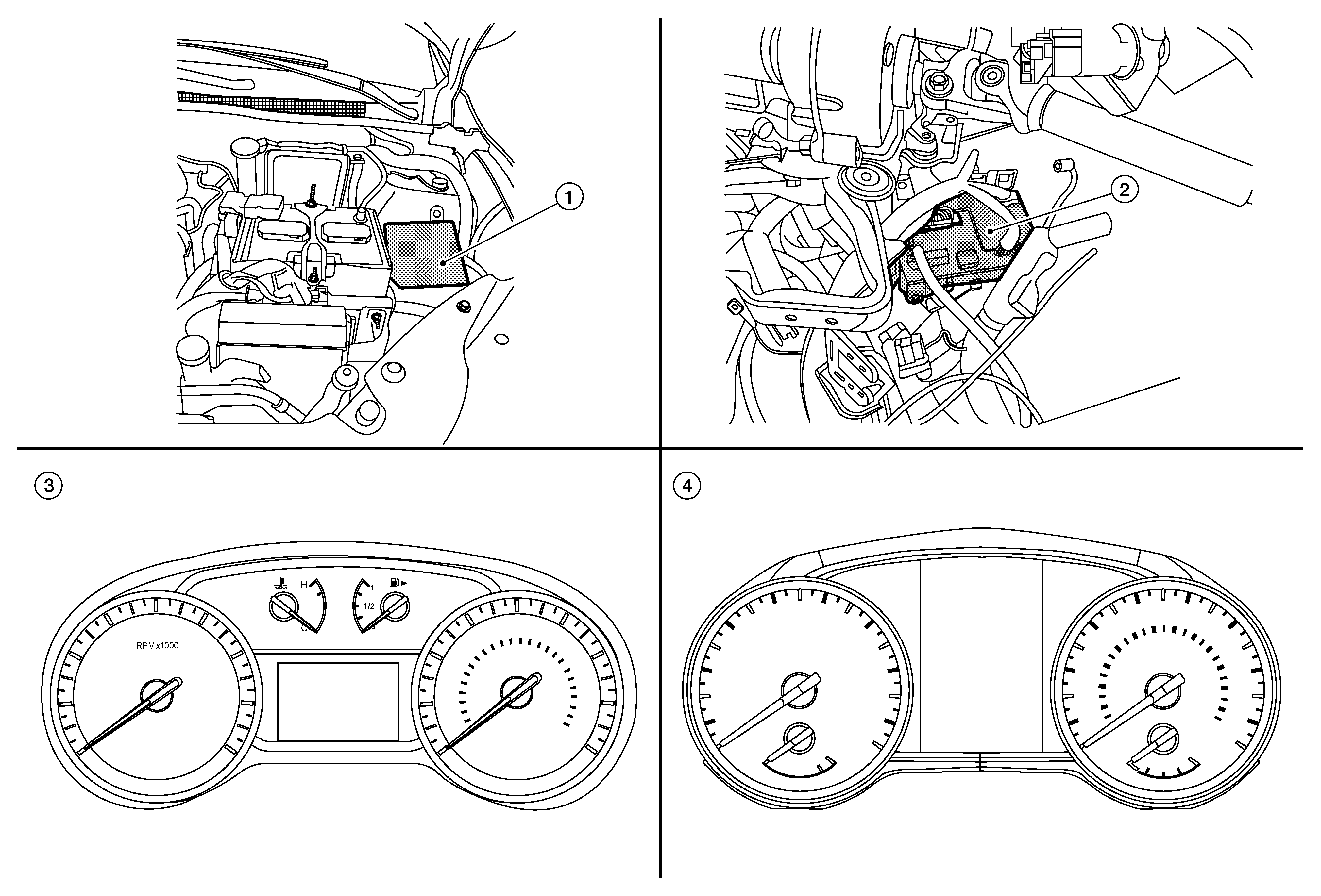

GNSAWMIA0044Z-044

Courtesy of NISSAN NORTH AMERICA, INC.

1.	IPDM E/R	2.	BCM (view with instrument panel removed)	3.	Combination meter (Type A)
4.	Combination meter (Type B)
