Removal and Installation: Removal

  1. Remove instrument upper panel. Refer to Removal and Installation .

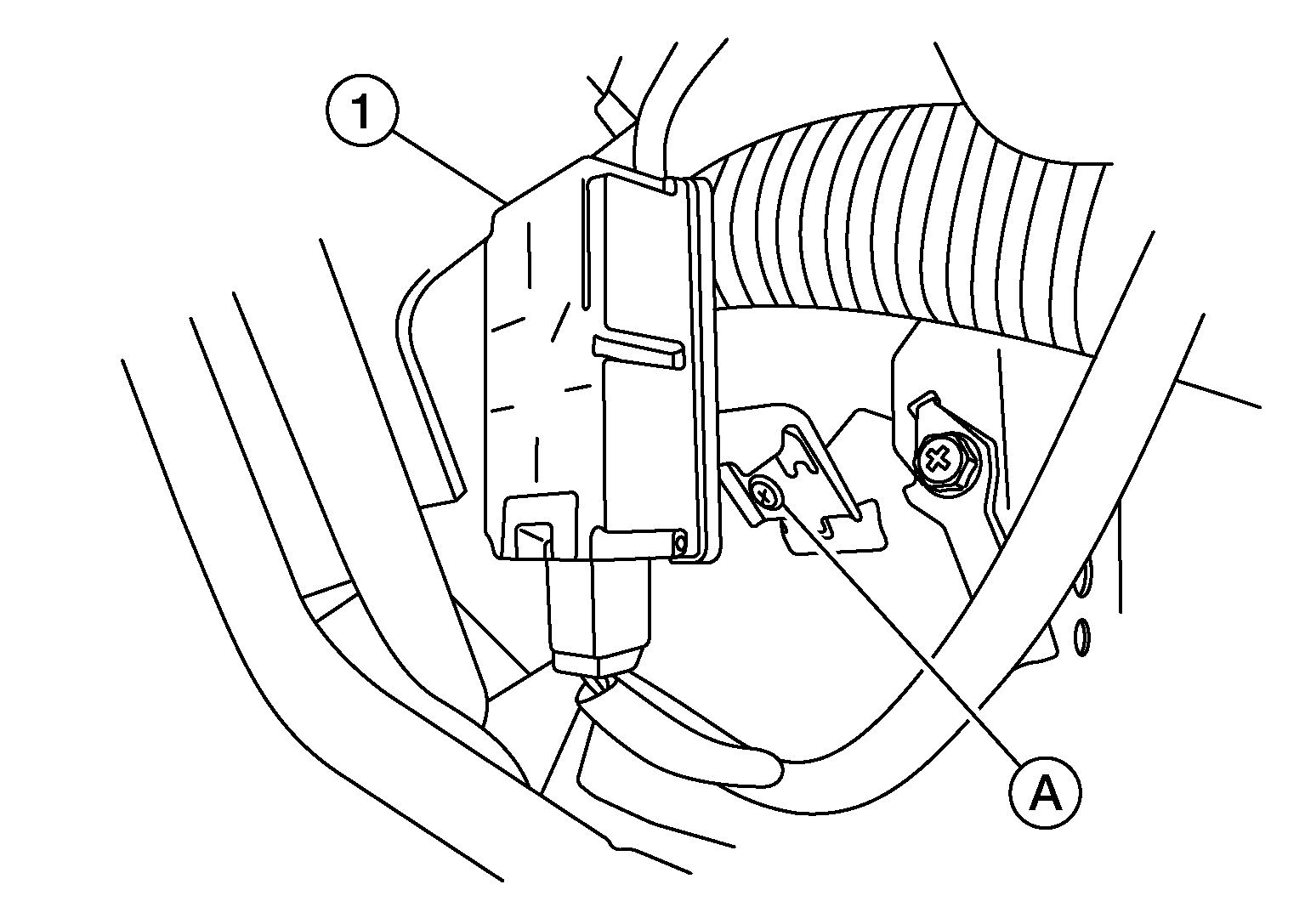

  2. Disconnect the harness connector from the remote keyless entry receiver (1).
    GNSALKIA4171Z-171Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screw (A) and remote keyless entry receiver.
  4. Remove remote keyless entry receiver from bracket.
