Removal and Installation: Removal

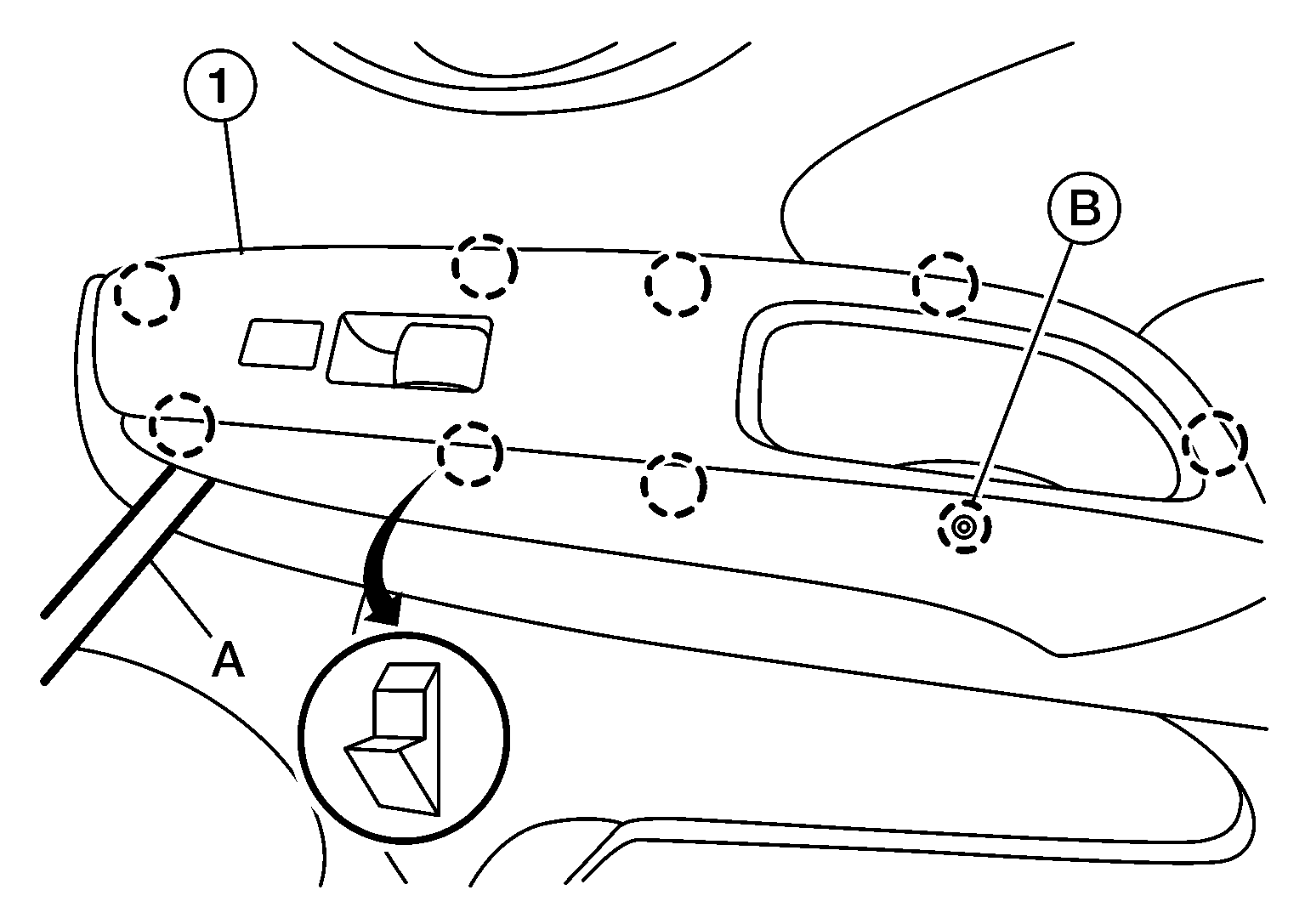

  1. Remove screw (B) from front power window and door lock/unlock switch finisher assembly (1).
    GNSAWKIA2505Z-505Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove front power window and door lock/unlock switch (RH) finisher assembly (1) using a suitable tool (A).

    SYMBOL : Pawl

  3. Disconnect the harness connector from the front power window and door lock/unlock switch (RH).

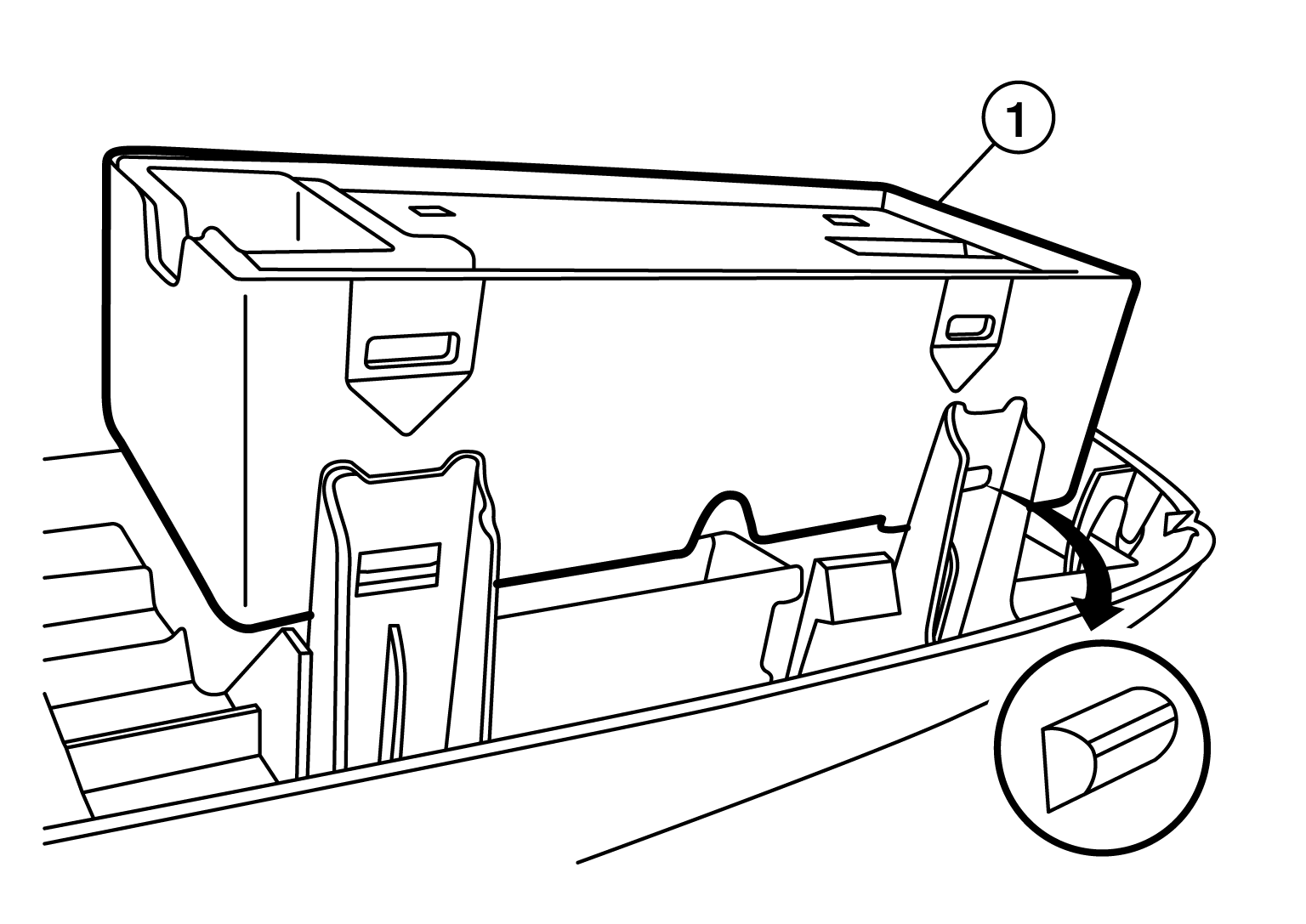

  4. Separate front power window and door lock/unlock switch (1) from front power window and door lock/unlock switch (RH) finisher using a suitable tool.
    GNSDB123459Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not bend back the pawls on the switch finisher too far or breakage may occur.
