Removal and Installation: Removal

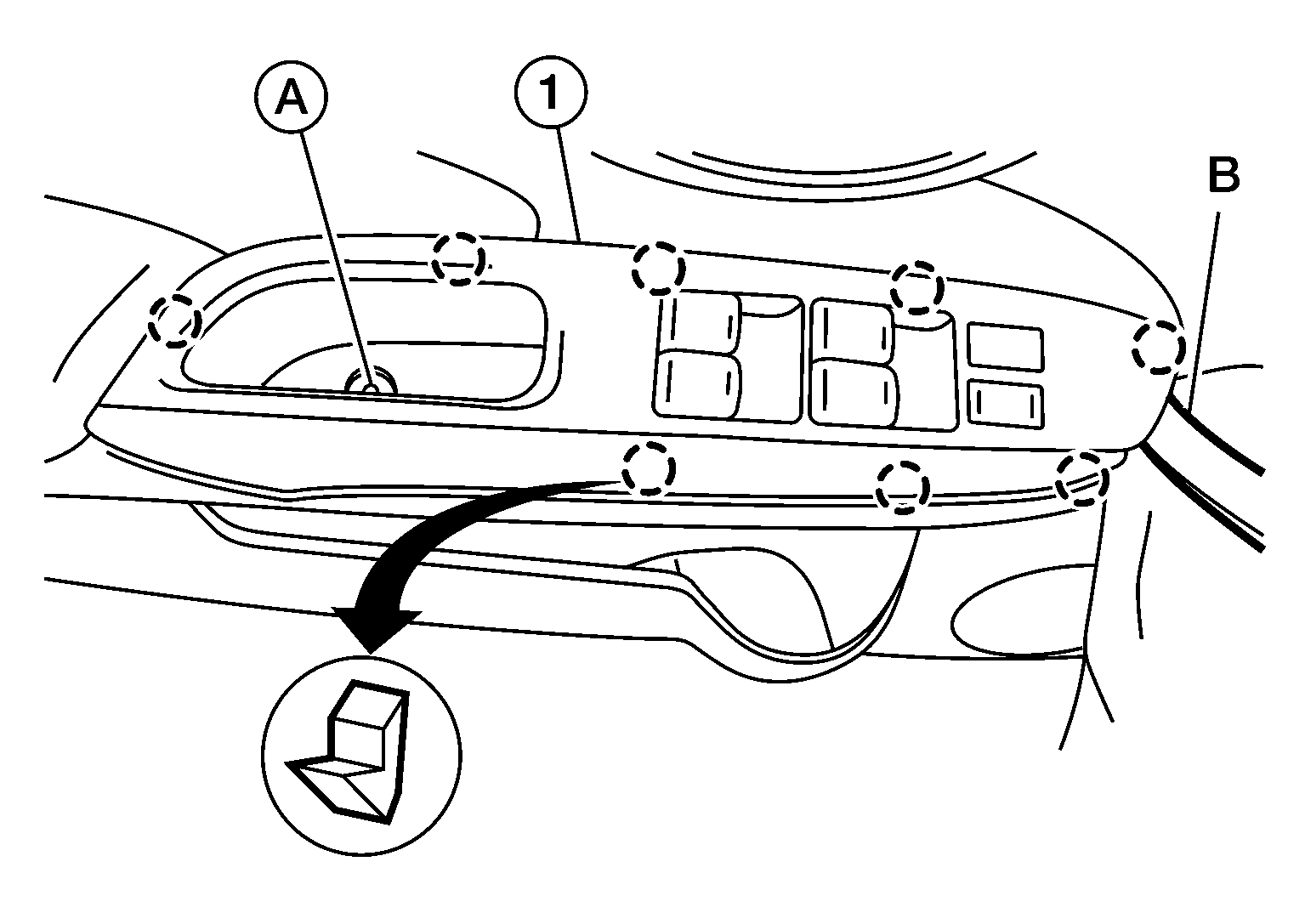

  1. Remove screw (A) from main power window and door lock/unlock switch finisher assembly (1).
    GNSAWKIA2536Z-536Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove main power window and door lock/unlock switch finisher assembly (1) using a suitable tool (B).

    SYMBOL : Pawl

  3. Disconnect the harness connector from the main power window and door lock/unlock switch.

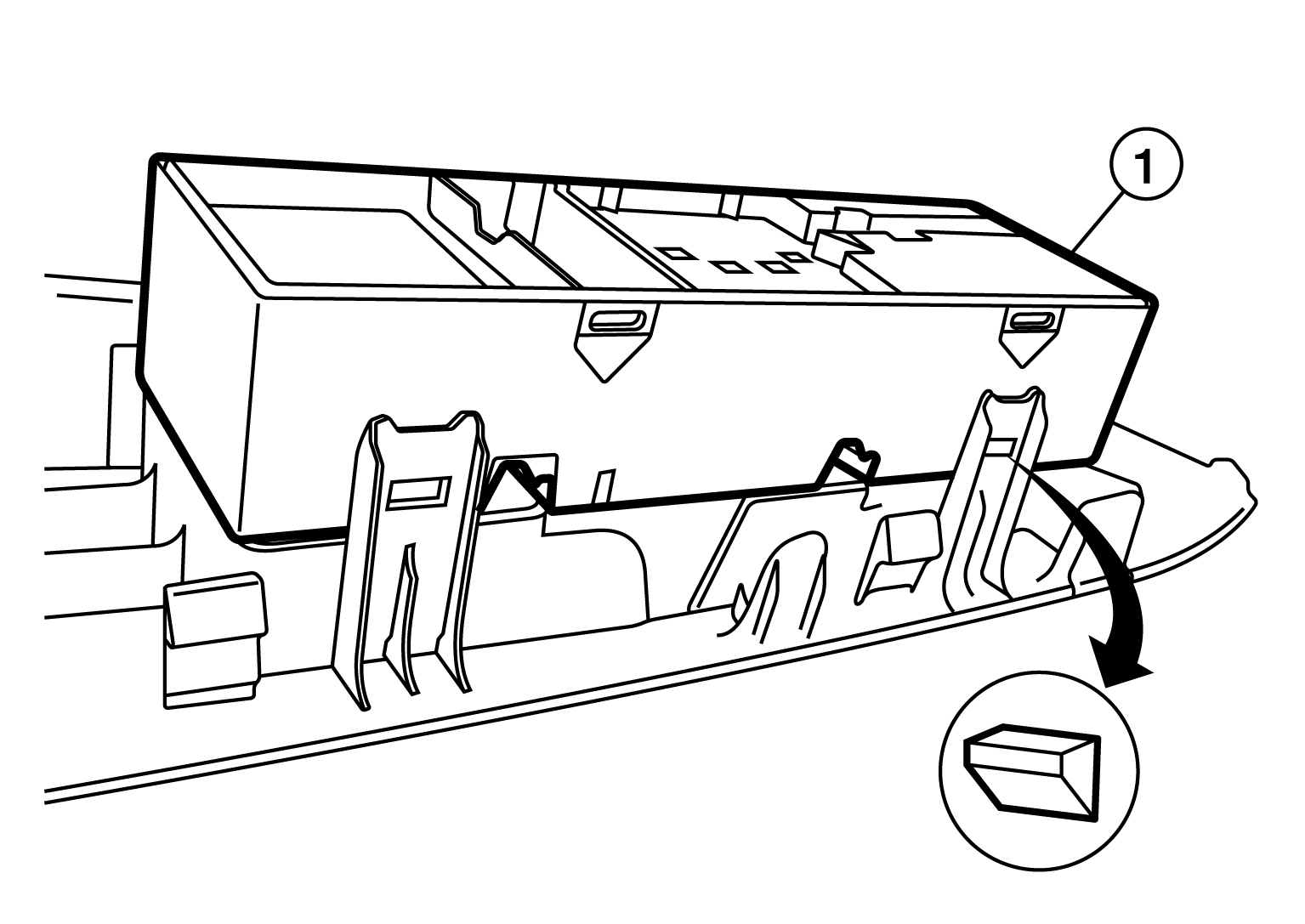

  4. Separate main power window and door lock/unlock switch (1) from main power window and door lock/unlock switch finisher using a suitable tool.
    GNSDB116647Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not bend back the pawls on the switch finisher too far or breakage may occur.
