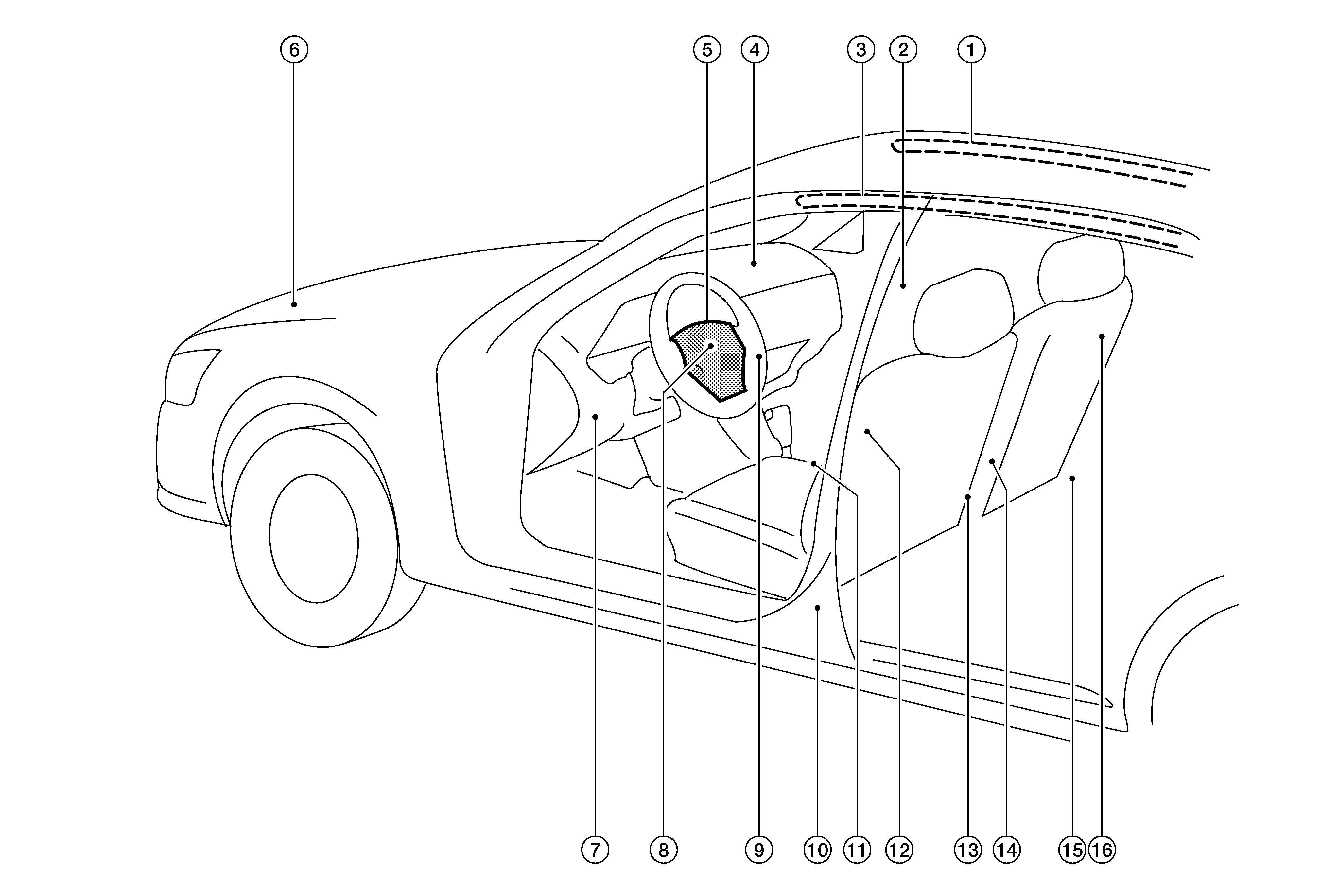

Component Parts Location
|
1. |
RH side curtain air bag module |
2. |
Front door satellite sensor RH |
3. |
LH side curtain air bag module |
|
4. |
Front passenger air bag module |
5. |
Driver air bag module |
6. |
Crash zone sensor |
|
7. |
Front door satellite sensor LH |
8. |
Spiral cable |
9. |
Front passenger air bag off indicator |
|
10. |
Front LH seatbelt pre-tensioner Side air bag satellite sensor LH |
11. |
Air bag diagnosis sensor unit |
12. |
Front LH side air bag module |
|
13. |
Seat belt buckle switch (LH) Seat belt buckle switch (RH) |
14. |
Occupant classification system control unit and sensors |
15. |
Front RH seatbelt pre-tensioner Side air bag satellite sensor RH |
|
16. |
Front RH side air bag module |
