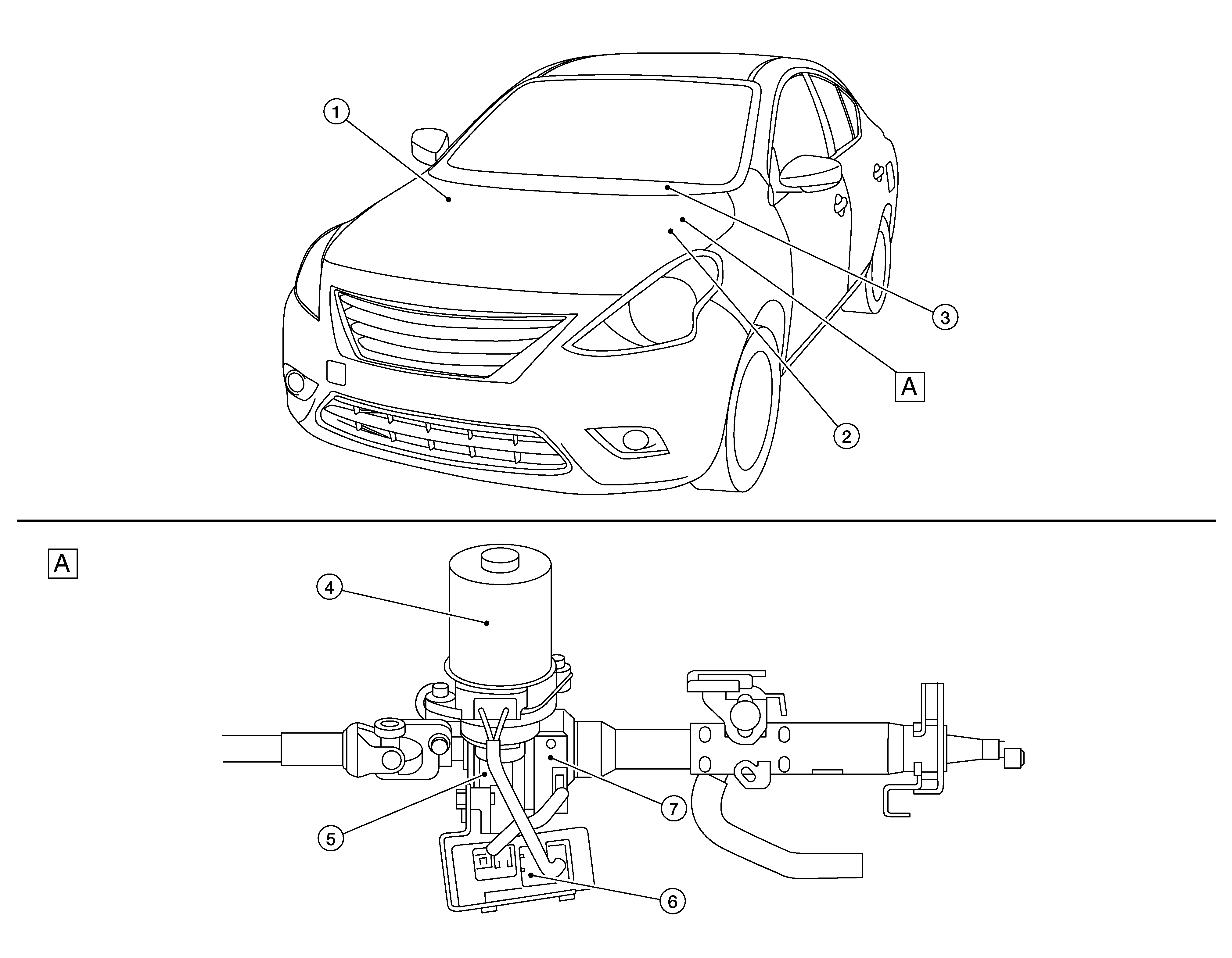

Component Parts Location

GNSALGIA0186Z-186Courtesy of NISSAN NORTH AMERICA, INC.

1.

ABS actuator and electric unit (control unit)

2.

ECM

3.

EPS warning lamp

(In combination meter)

4.

EPS motor

5.

Reduction gear

6.

EPS control unit

7.

Torque sensor

A.

Steering column assembly (view with column removed from vehicle)
