Removal and Installation: Removal

  1. Remove rear power window switch finisher door handle pull escutcheon.

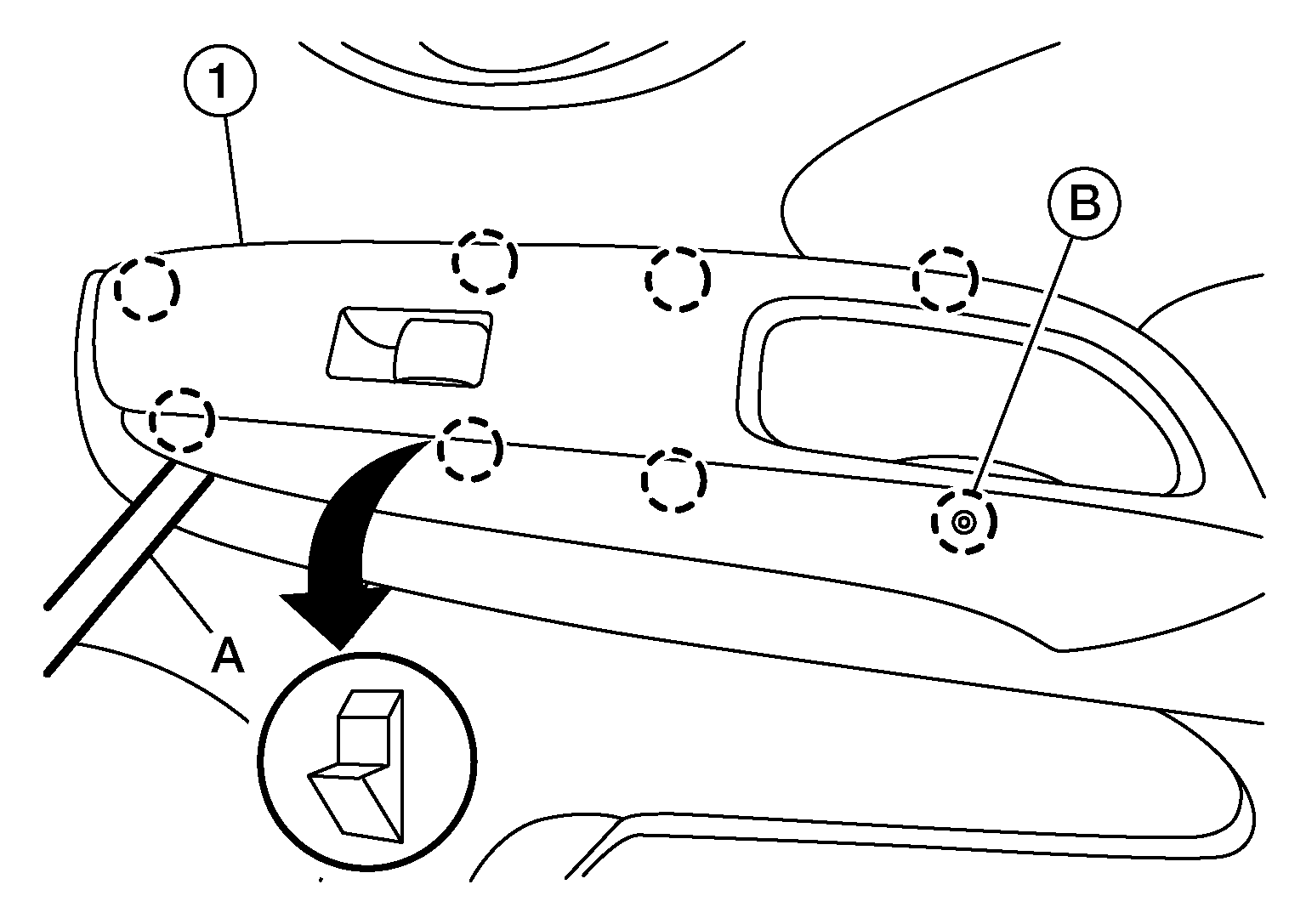

  2. Remove screw (A) from rear power window switch finisher.
    GNSAWKIA4443Z-443Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove rear power window switch finisher (1) using a suitable tool (B).

    SYMBOL : Pawl

  4. Disconnect the harness connector from the rear power window switch.

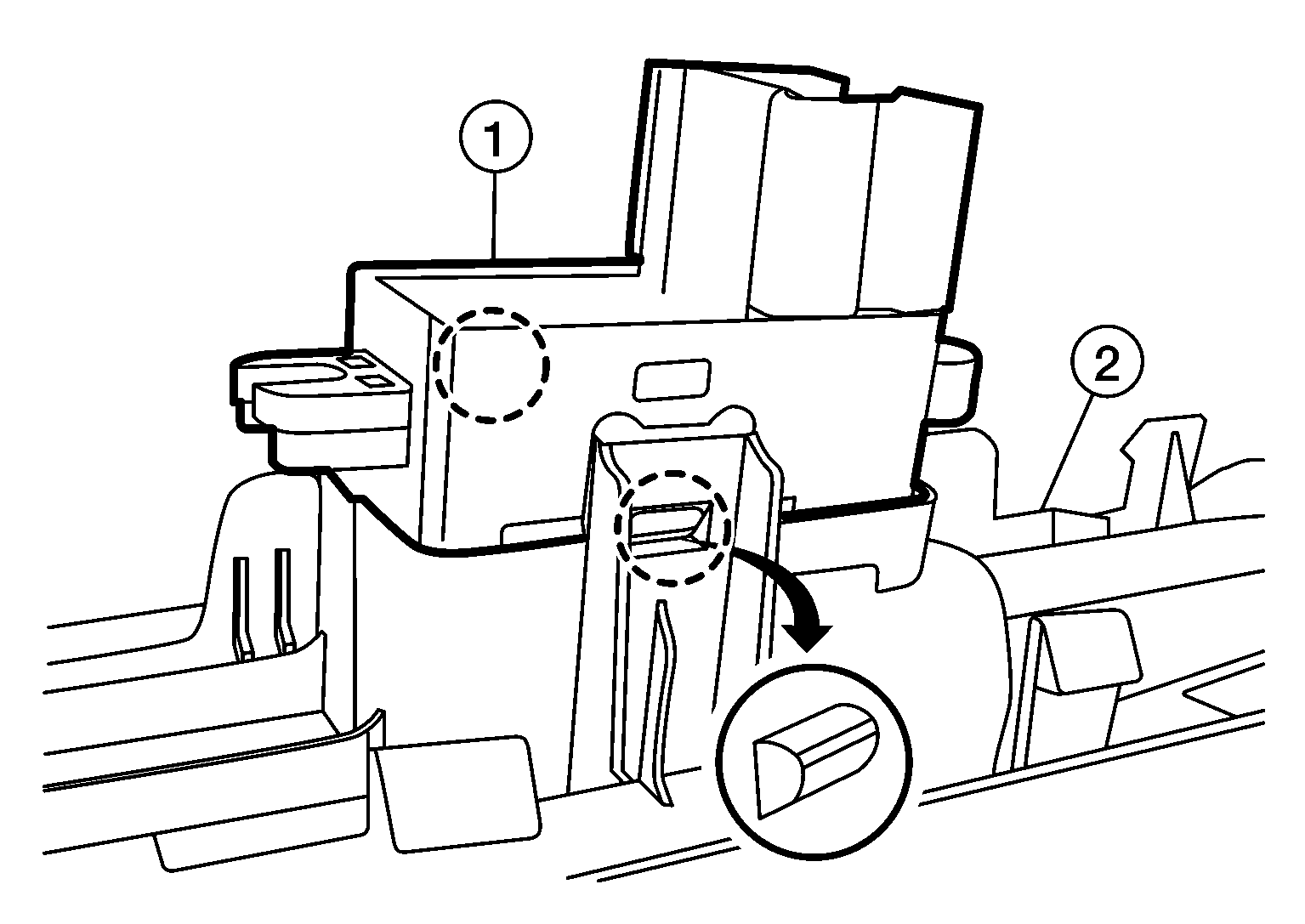

  5. Release pawls and remove rear power window switch (1) from rear power window switch finisher (2) using a suitable tool.
    GNSAWKIA2511Z-511Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not bend back the pawls on the switch finisher too far or damage may occur.
