Steering Wheel Turning Force
- Park vehicle on a level and dry surface, set parking brake.
- Tires need to be inflated normal pressure. Refer to Tire Air Pressure .
- Start engine.

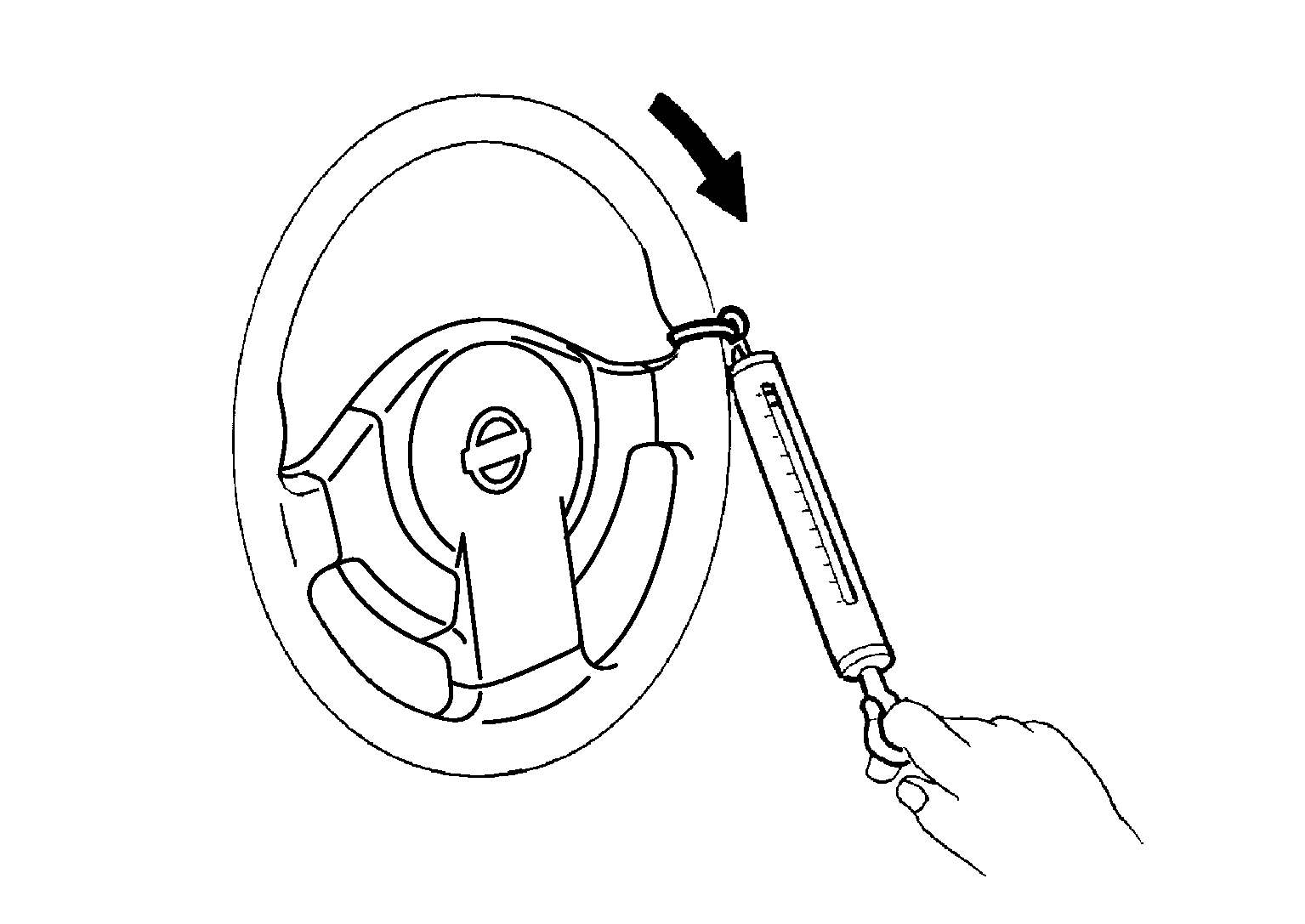

- Check steering wheel turning force using Tool when steering wheel has been turned 360° from the neutral position.
Tool number
: - (J-44372)
Steering wheel turning force
: Refer to Steering Wheel Turning Force .
- If steering wheel turning force is out of specification, inspect steering column. Refer to Inspection .
- If steering column meets specification, inspect steering gear. Refer to Inspection .
