Removal and Installation: Installation

Installation is in the reverse order of removal.

CAUTION:

During installation, finger-tighten all of the bracket and joint retaining bolts, then tighten them to specification.
When installing the steering column cover, check that the vehicle harness is not stuck in the cover.
Replace the steering column if it has been dropped or sustained an impact.

For intermediate shaft bolt direction, refer to Exploded View .

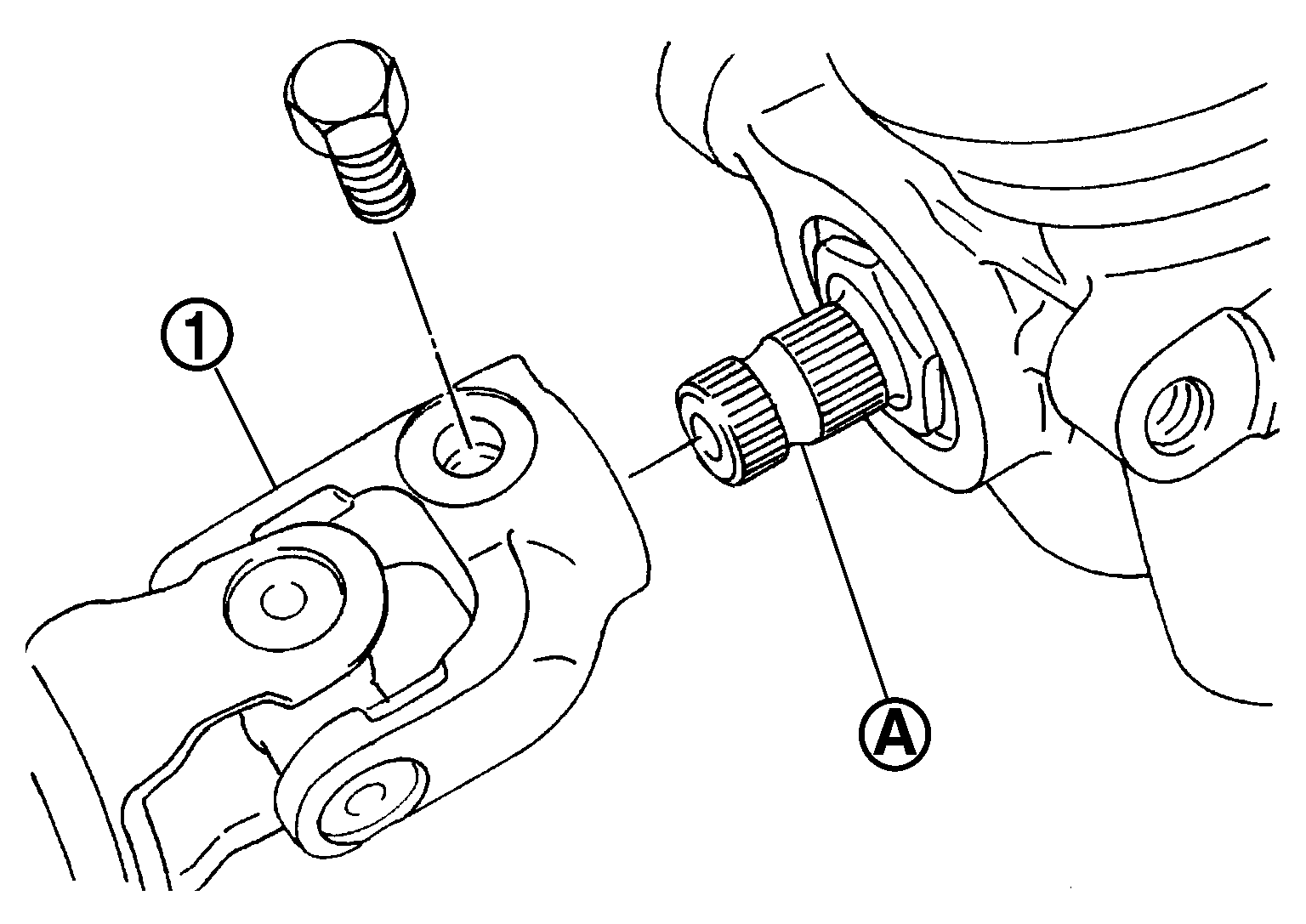

When connecting intermediate shaft upper side (1) and column shaft, make sure the bolt is securely seated in groove (A) of column shaft before final tightening.

Courtesy of NISSAN NORTH AMERICA, INC.
After installing steering column, perform self-diagnosis with CONSULT to ensure correct operation. Refer to CONSULT Function .
Inspect steering column after installation. Refer to Inspection .
Adjust the neutral position of the steering angle sensor. Refer to Description .
