Exploded View

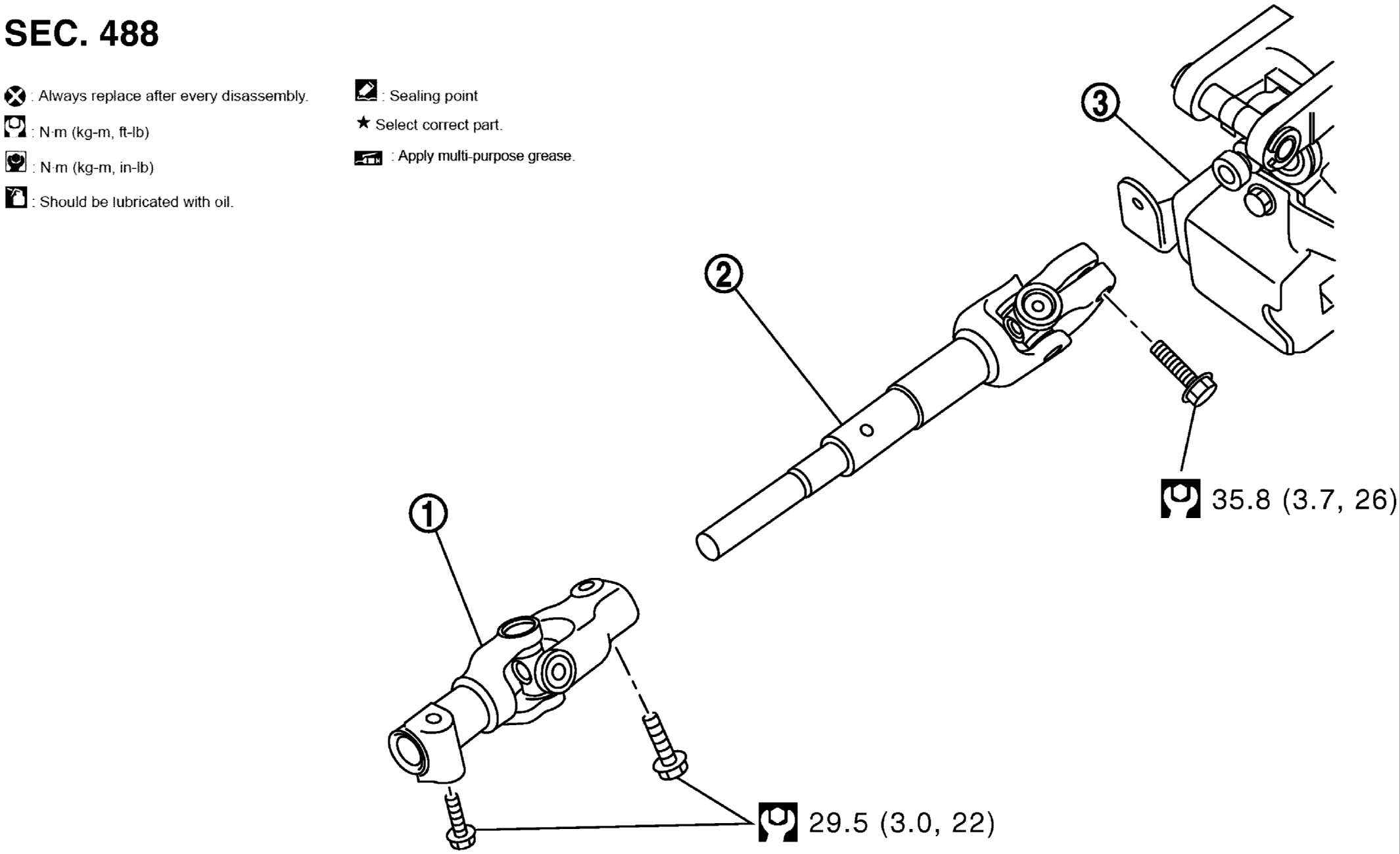

Fig 1: Steering Shaft With Torque Specifications

GNSJPGIA0112GB-112

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Lower joint

2.

Steering intermediate shaft

3.

Steering column
