Work Procedure

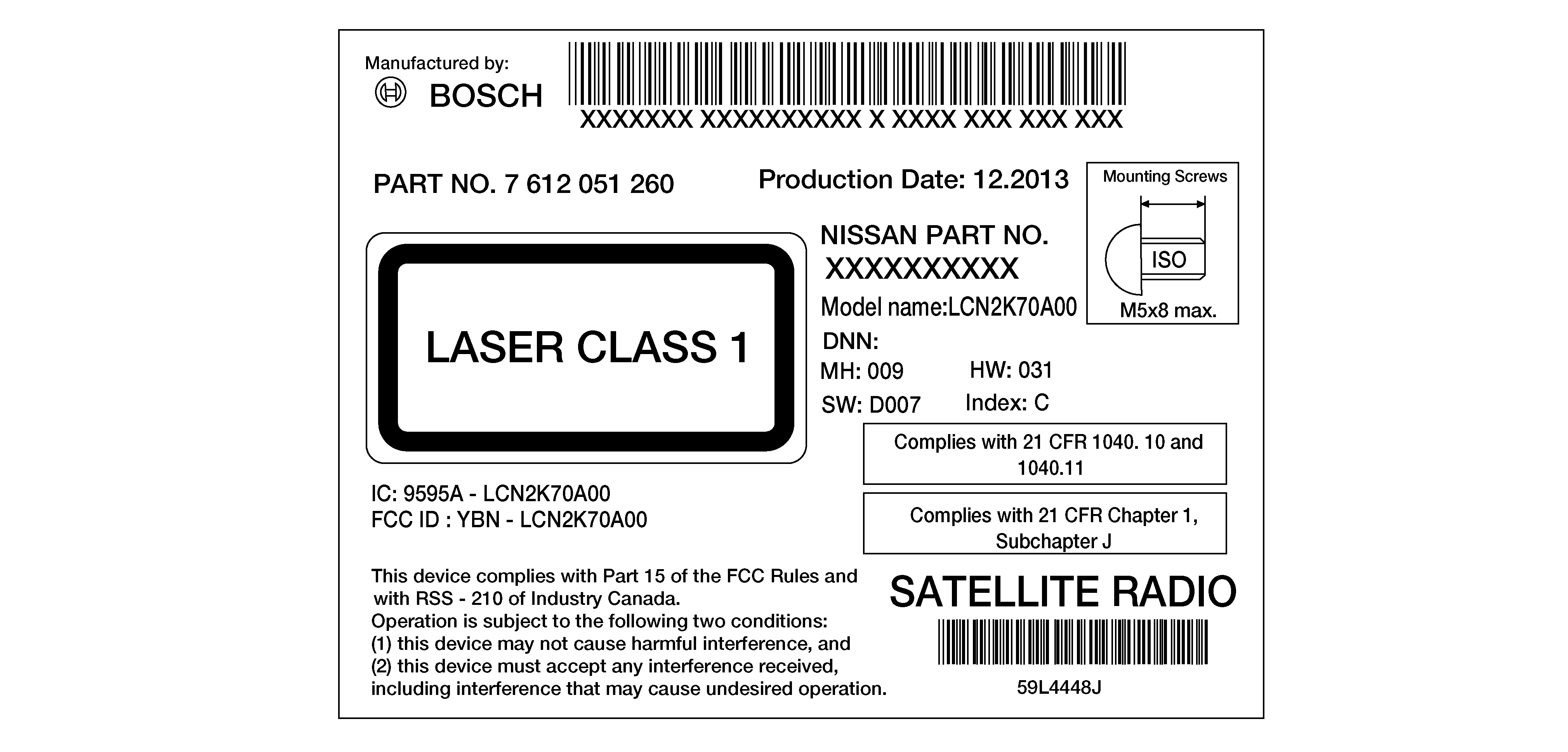

1. Refer to the replacement AV control unit??s label located on the top of the AV control unit.

   Courtesy of NISSAN NORTH AMERICA, INC.

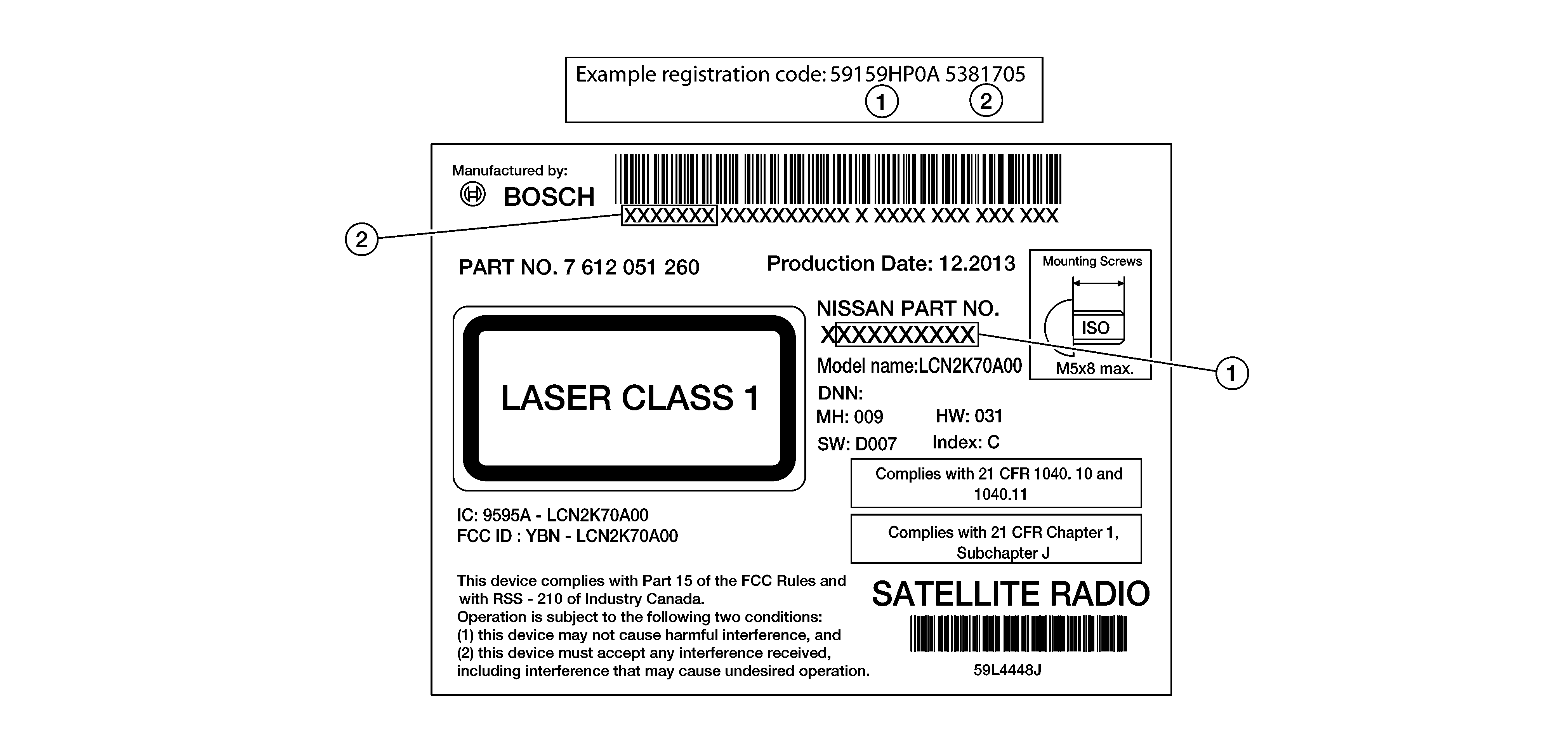

2. Create a registration code to supply to NISSAN Owner Services by combining the last 9 digits of the NISSAN PART NO. (1) and the first 7 digits of the bar code number (2).

   Courtesy of NISSAN NORTH AMERICA, INC.

3. Record the registration code.

.

Register the replacement AV control unit by contacting NISSAN Owner Services. Refer to TSB.

.

Verify that the AV control unit ??APPS?? function operates normally.

Work End.
