Exploded View

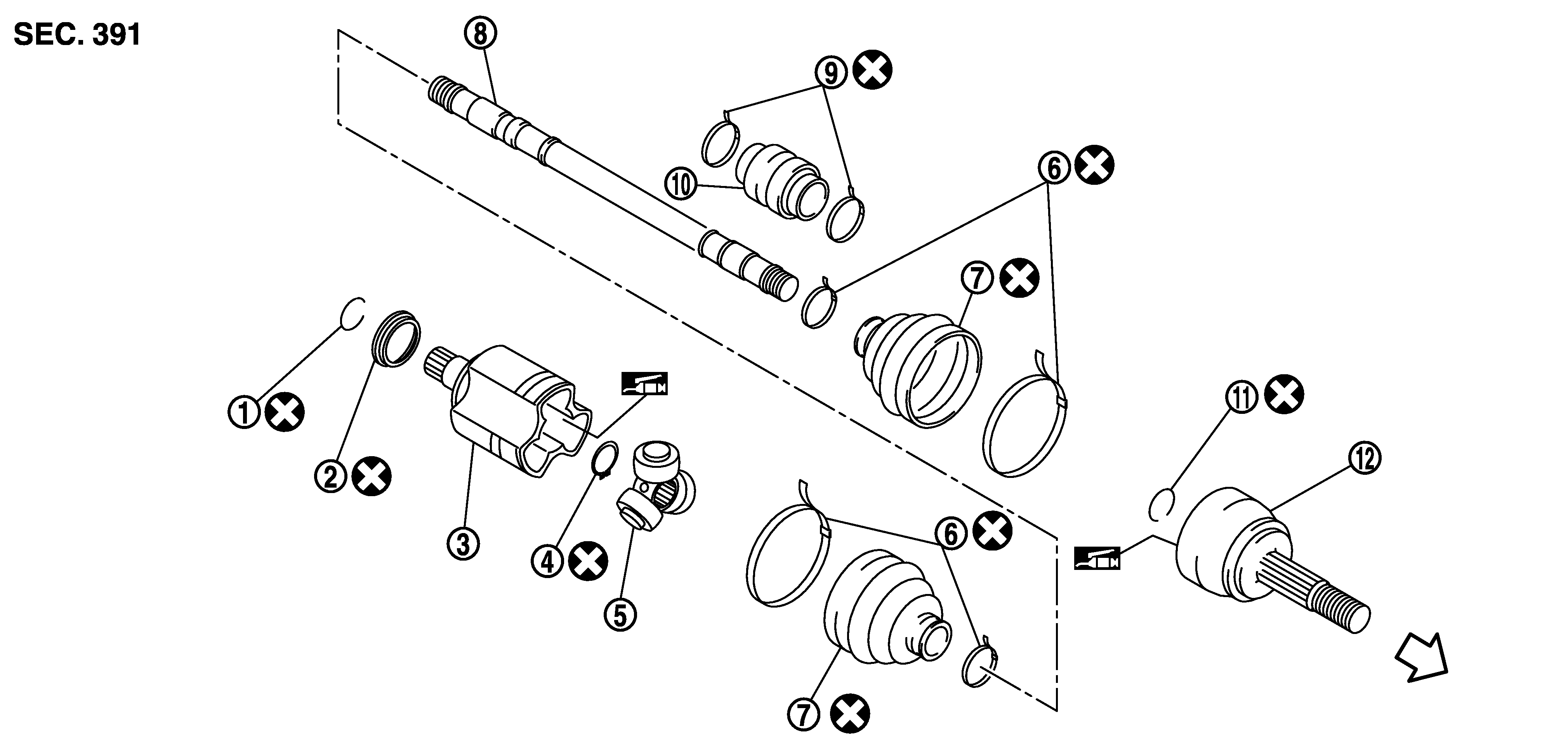

Fig 1: (LH)

GNSJPDIF0266Z-266

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Circular clip	2.	Dust shield	3.	Slide joint housing
4.	Snap ring	5.	Spider assembly	6.	Boot band
7.	Boot	8.	Shaft	9.	Damper band
10.	Dynamic damper	11.	Circular clip	12.	Joint sub-assembly
	Wheel side

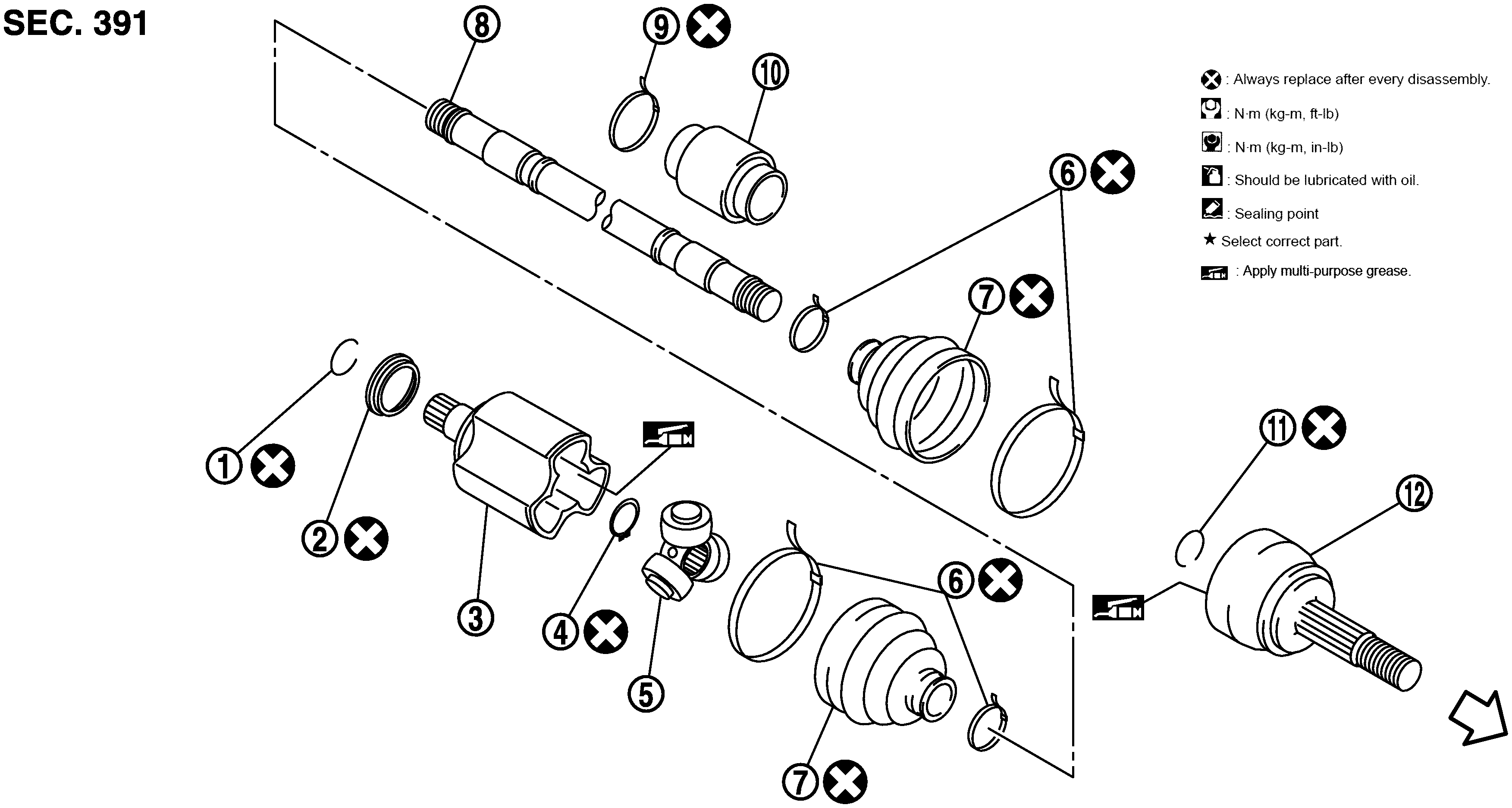

Fig 2: (RH)

GNSJPDIF0269Z-269

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Circular clip	2.	Dust shield	3.	Slide joint housing
4.	Snap ring	5.	Spider assembly	6.	Boot band
7.	Boot	8.	Shaft	9.	Damper Band
10.	Dynamic damper	11.	Circular clip	12.	Joint sub-assembly
	Wheel side
