Removal and Installation: Installation

  1. Install the generator bracket (if removed) using the following procedure:

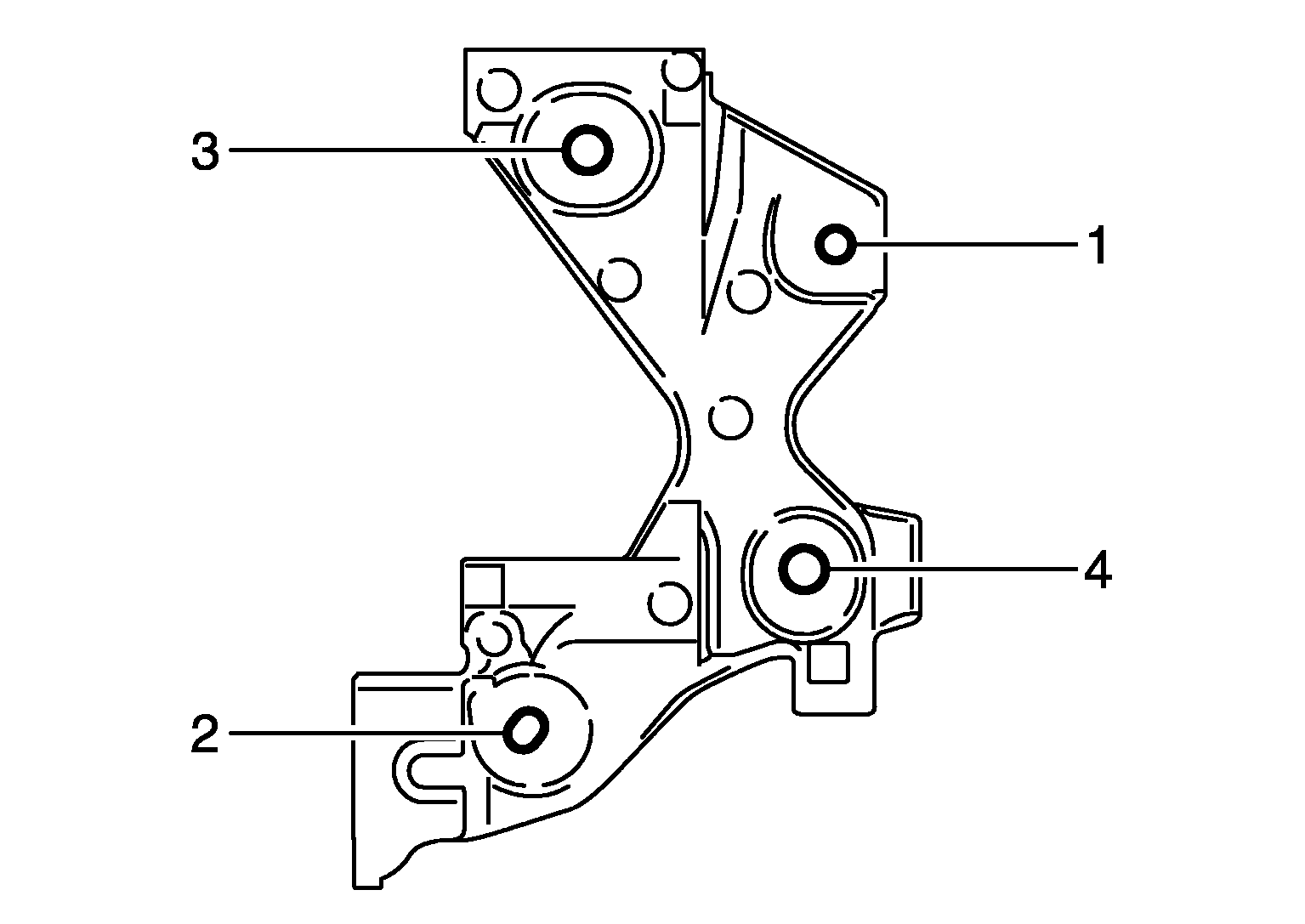

    GNSJMMIA0463Z-463Courtesy of NISSAN NORTH AMERICA, INC.
    1. Temporarily tighten bolts.
    2. Tighten bolts to specification in numerical order as shown above.

      Bolts

      : 25 N.m (2.6 kg-m, 18 ft-lb)
  2. Install the generator using the following procedure:
    1. Temporarily tighten the generator bolts in order from the lower to the upper.
    2. Tighten the generator bolts to the specification starting with the top bolt.

      Bolts

      : 25 N.m (2.6 kg-m, 18 ft-lb)
    3. Install "B" terminal harness and "B" terminal nut.
      CAUTION: Be sure to tighten "B" terminal nut carefully.
  3. Installation of the remaining components is in the reverse order of removal.
