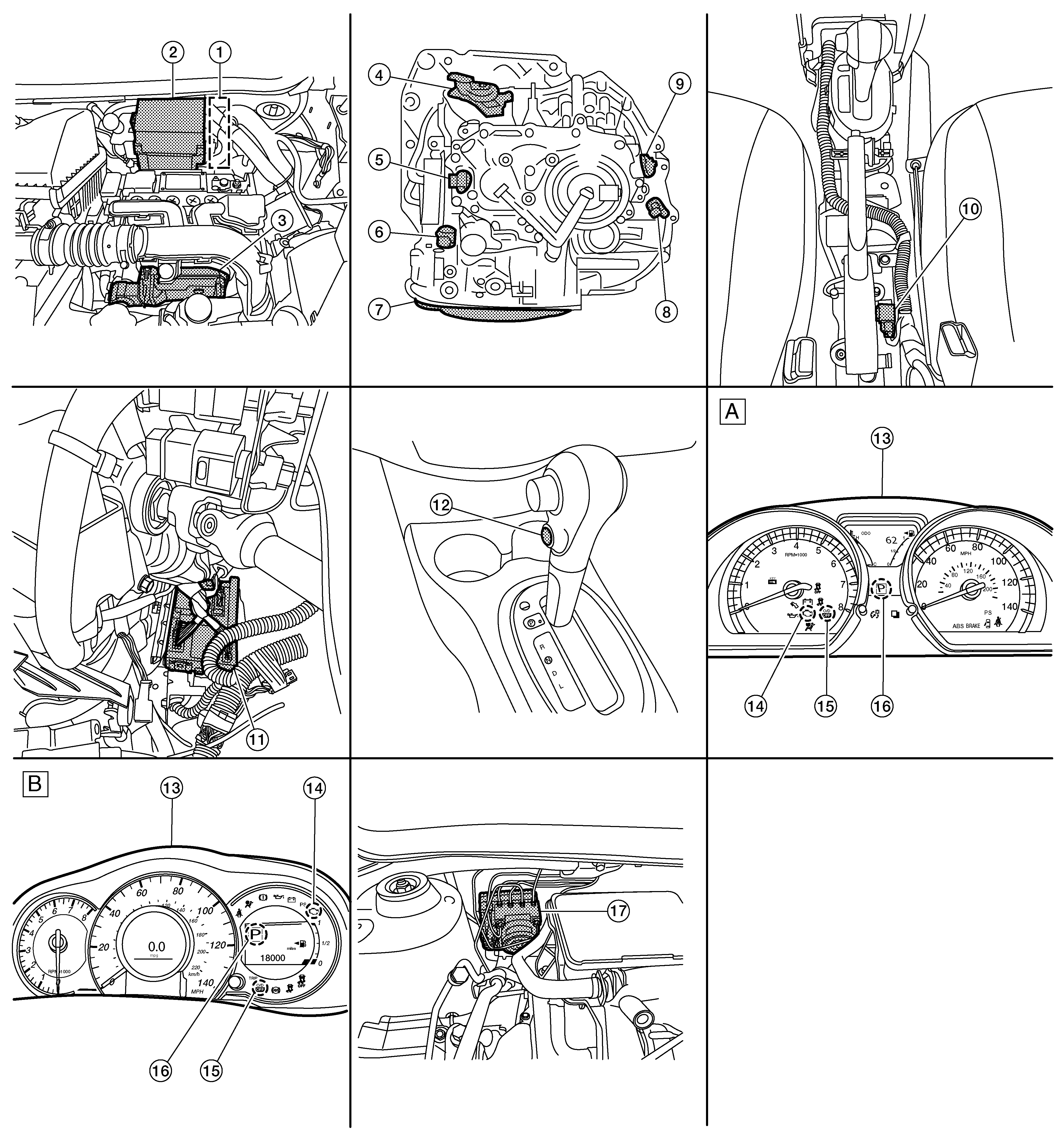

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

Combination meter type A

Combination meter type B

No.	Component		Function
1	ECM		Mainly transmits the following signal to TCM via CAN communication. Engine and CVT integrated control signal NOTE: General term for the communication (torque-down permission, torque-down request, etc.) exchanged between the ECM and TCM. Engine speed signal Accelerator pedal position signal Closed throttle position signal N idle instruction signal Mainly receives the following signals from TCM via CAN communication. N idle instruction signal Malfunction indicator lamp (MIL) signal
2	IPDM E/R		Mainly transmits the following signal to TCM via CAN communication. A/C compressor feedback signal
3	TCM		TCM
4	Transmission range switch		Transmission Range Switch
5	Primary speed sensor		Primary Speed Sensor
6	CVT unit		-
7	Control valve	ROM assembly*	ROM Assembly
		CVT fluid temperature sensor*	CVT Fluid Temperature Sensor
		Secondary pressure sensor*	Secondary Pressure Sensor
		Primary pressure solenoid valve*	Primary Pressure Solenoid Valve
		Low brake solenoid valve*	Low Brake Solenoid Valve
		High clutch & reverse brake solenoid valve*	High Clutch & Reverse Brake Solenoid Valve
		Torque converter clutch solenoid valve*	Torque Converter Clutch Solenoid Valve
		Line pressure solenoid valve*	Line Pressure Solenoid Valve
8	Output speed sensor		Output Speed Sensor
9	Secondary speed sensor		Secondary Speed Sensor
10	G sensor		G Sensor
11	BCM		Mainly transmits the following signal to TCM via CAN communication. Stop lamp switch signal Turn indicator signal
12	Overdrive control switch		Overdrive Control Switch
13	Combination meter		Mainly transmits the following signal to TCM via CAN communication. Overdrive control switch signal Mainly receives the following signals from TCM via CAN communication. Shift position indicator signal O/D OFF indicator signal
14	Malfunction indicator lamp (MIL)		Malfunction Indicator Lamp (MIL)
15	O/D OFF indicator lamp		O/D OFF Indicator Lamp
16	Shift position indicator		Shift Position Indicator
17	ABS actuator and electric unit (control unit)		Mainly transmits the following signal to TCM via CAN communication. Vehicle speed signal (ABS) ABS operation signal ABS malfunction signal TCS malfunction signal VDC malfunction signal

*: These components are included in control valve assembly.
