Removal and Installation: Removal

  1. Remove power window and door lock/unlock switch (RH) finisher door handle pull escutcheon.

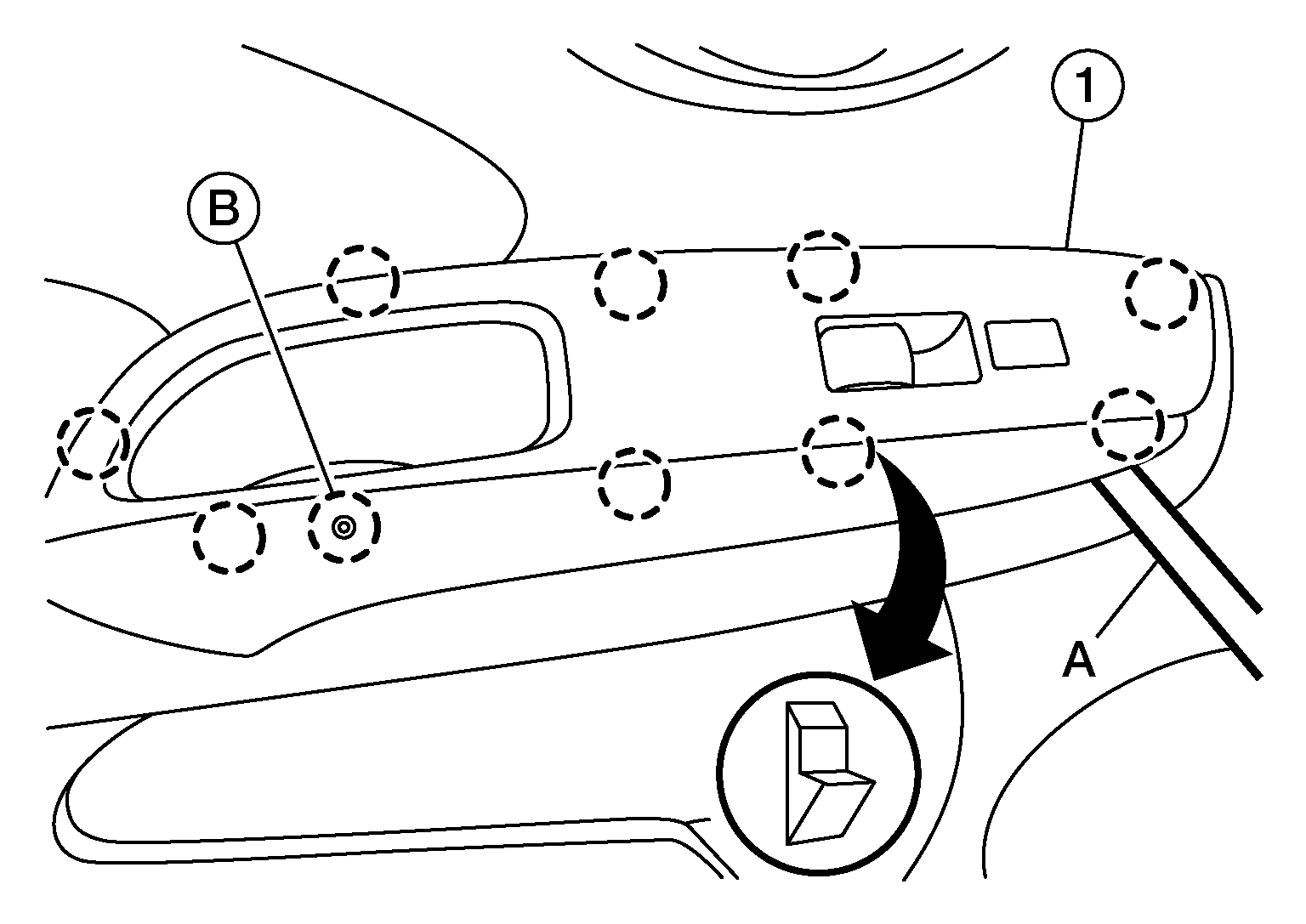

  2. Remove screw (B) from power window and door lock/unlock switch (RH) finisher.
    GNSAWJIA2355Z-355Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove power window and door lock/unlock switch (RH) finisher (1) using a suitable tool (A).

    SYMBOL : Pawl

  4. Disconnect the harness connector from the power window and door lock/unlock switch (RH).

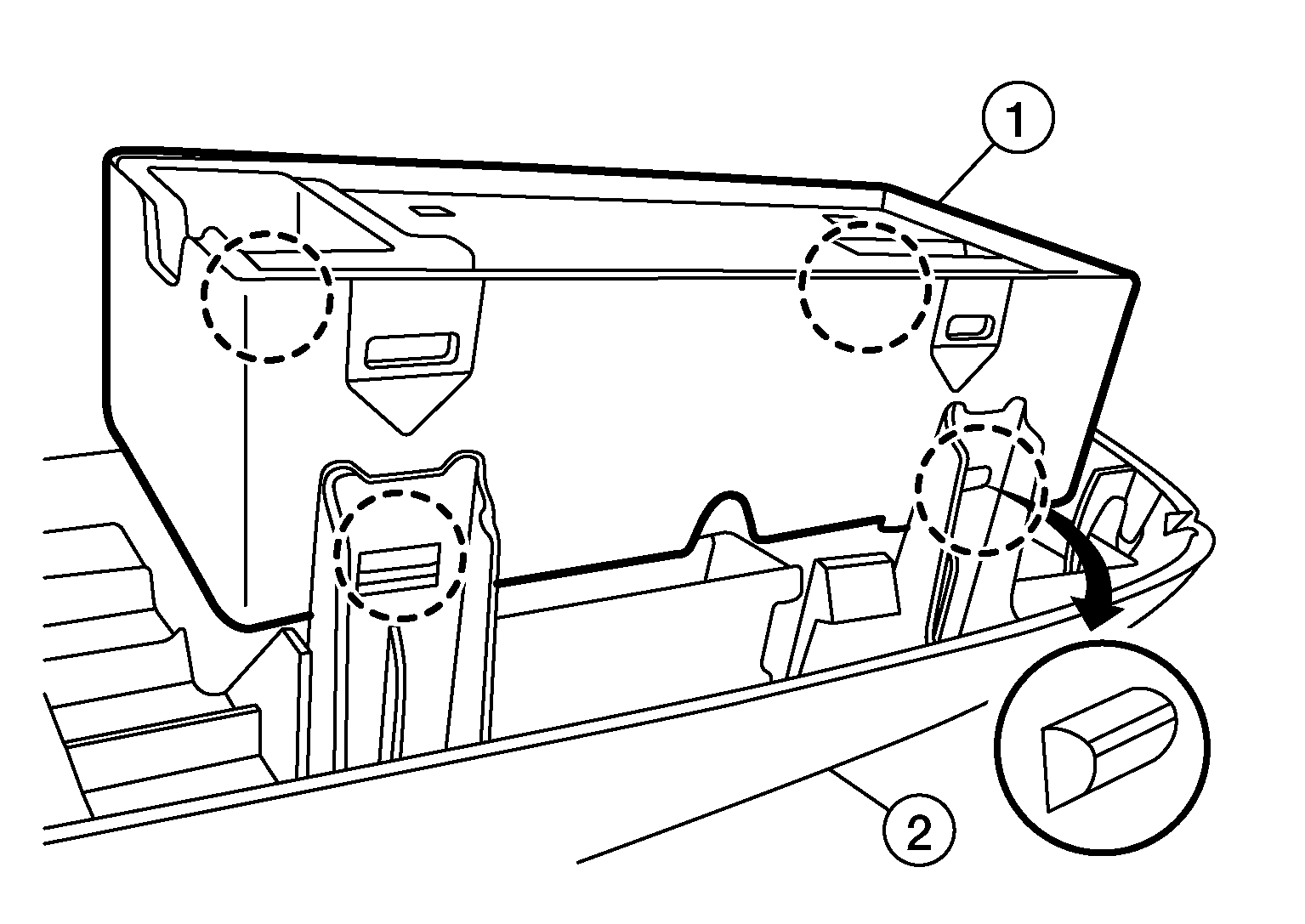

  5. Release pawls and remove power window and door lock/unlock switch (1) from power window and door lock/unlock switch (RH) finisher (2) using a suitable tool.
    GNSAWKIA2507Z-507Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

    CAUTION: Do not bend back the pawls on the switch finisher too far or damage may occur.
