Special Service Tools

The actual shape of the tools may differ from those illustrated here.

Tool number (TechMate No.) Tool name		Description
KV311039S0 (-----) Charging pipe set KV31103920* (-----) O-ring	Courtesy of NISSAN NORTH AMERICA, INC.	CVT fluid changing and adjustment
KV38107900 (-----) Differential side oil seal protector	Courtesy of NISSAN NORTH AMERICA, INC.	Installing drive shaft a: 32 mm (1.26 in) dia.
KV31103700 (-----) Drift	Courtesy of NISSAN NORTH AMERICA, INC.	Differential side oil seal (Transaxle case side) a: 53 mm (2.09 in) dia. b: 57 mm (2.24 in) dia. c: 70 mm (2.76 in) dia. d: 8 mm (0.31 in)

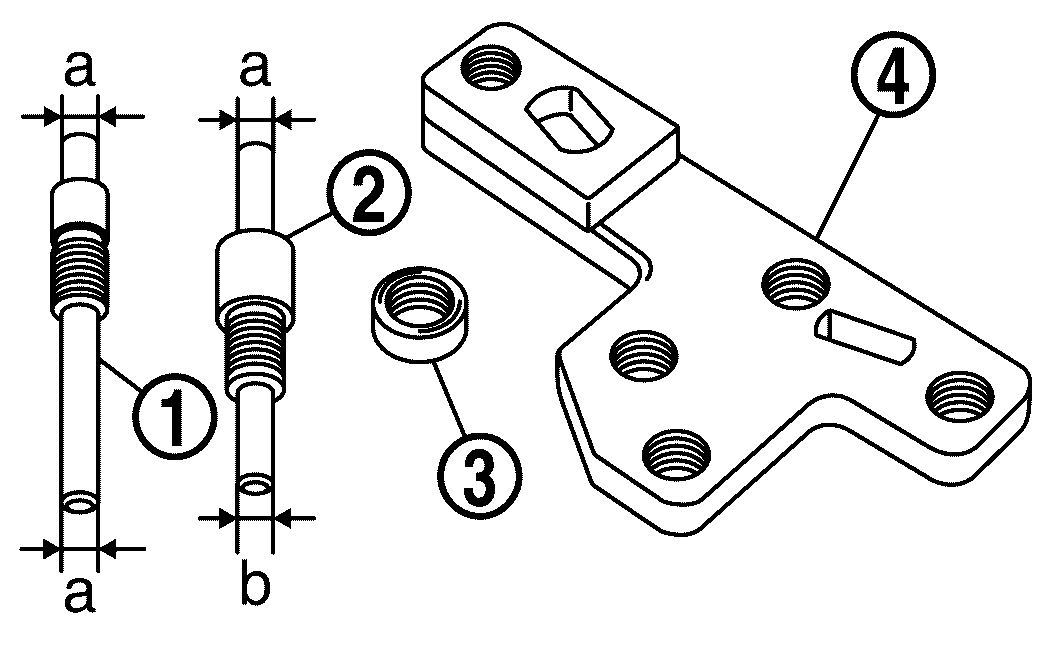

KV381099S0 (---) Unified transmission range switch adjuster	Courtesy of NISSAN NORTH AMERICA, INC.	Installing transmission range switch Pin "1" a: 5 mm (0.20 in) dia. Pin "2" a: 5 mm (0.20 in) dia. b: 4 mm (0.16 in) dia. Spacer nut Base plate

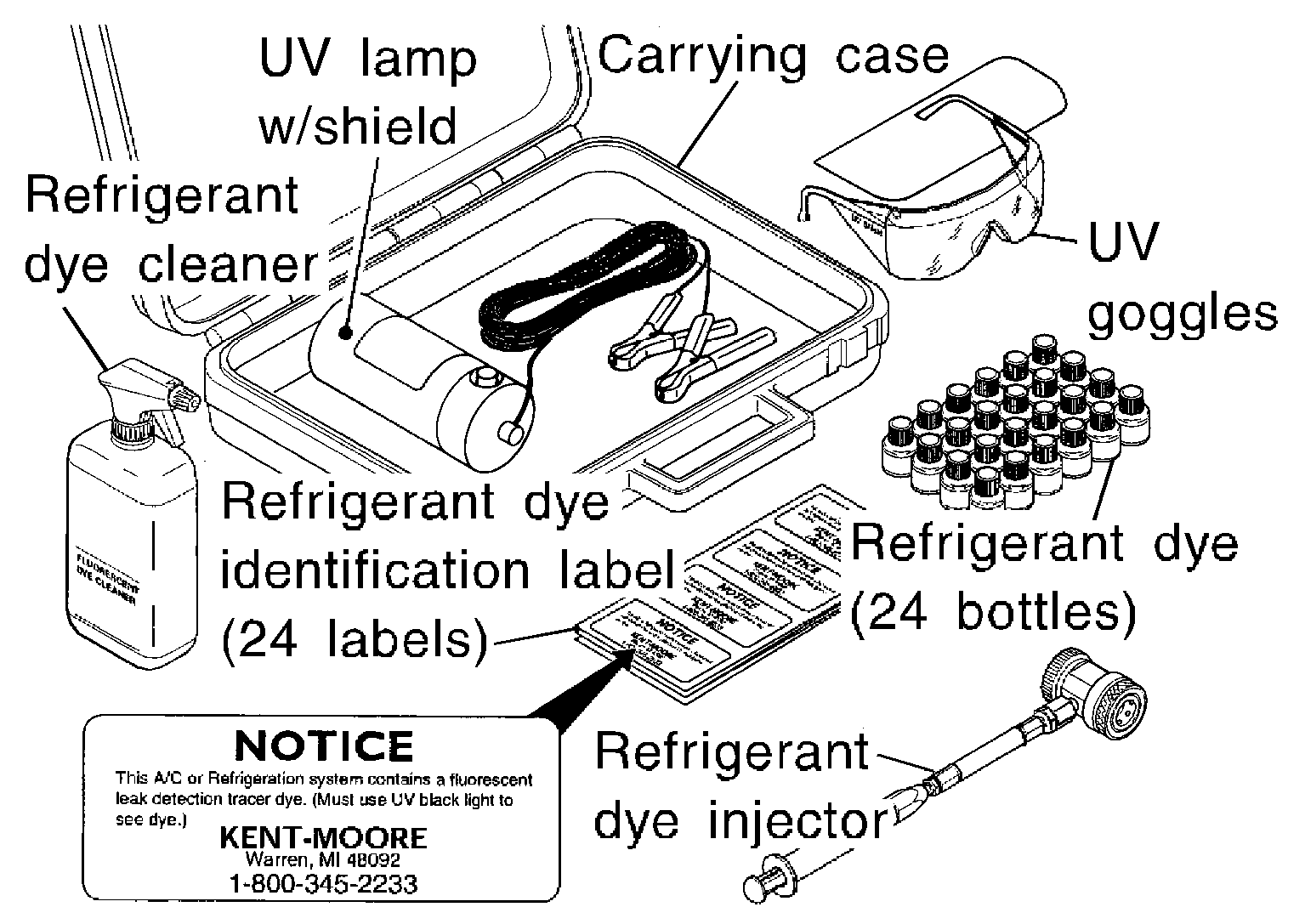

(J-43926) Refrigerant dye leak detection kit Kit includes: (J-42220) UV lamp and UV safety goggles (J-41459) Refrigerant dye injector (J-41447) Fluorescent leak detection dye (box of 24, 1/4 ounce bottles) (J-43872) Refrigerant dye cleaner	Courtesy of NISSAN NORTH AMERICA, INC.	Power supply: DC 12V (battery terminal)
(J-28431)	Courtesy of NISSAN NORTH AMERICA, INC.	Fluorescent Oil Dye

*: The O-ring as an unit part is set as a SST.
