ECM : Exploded View
ECM : Exploded View

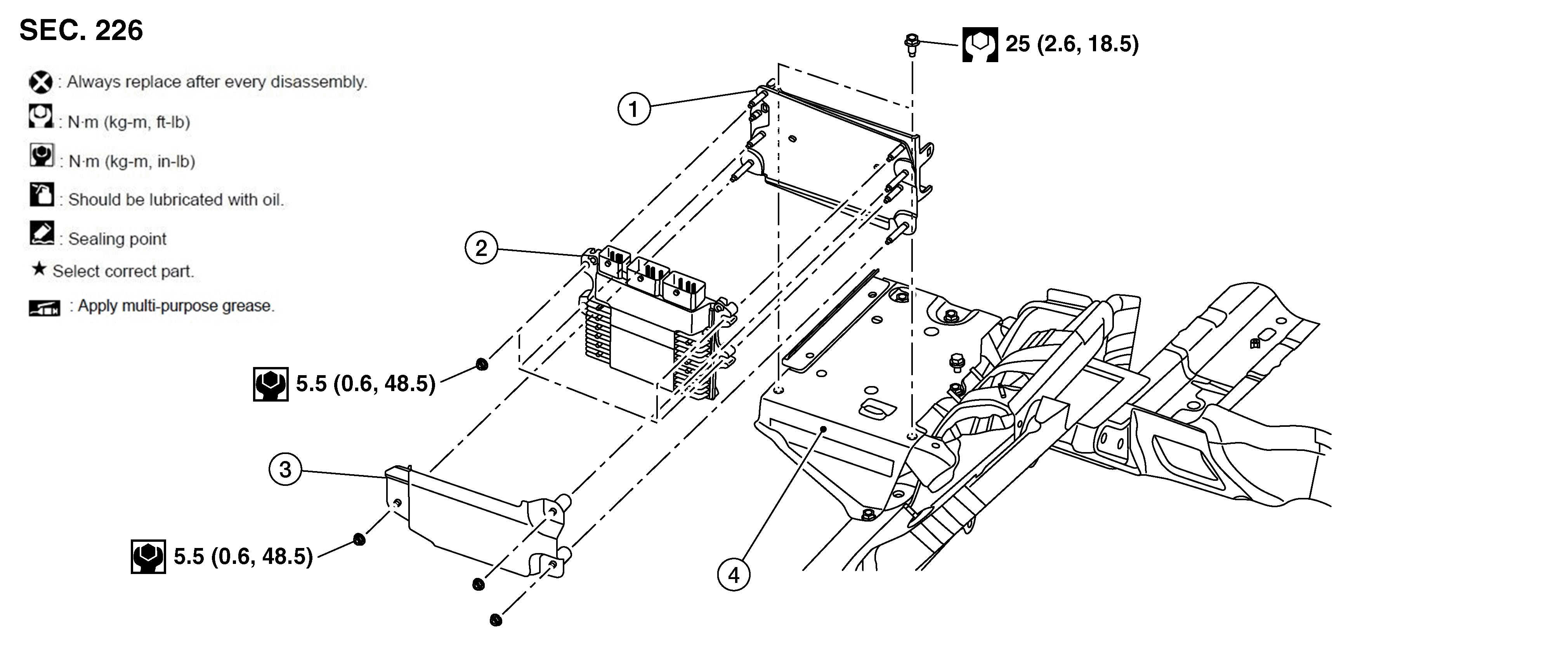

Fig 1: ECM Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Rear bracket
2.
ECM
3.
Front bracket
4.
Battery tray
Courtesy of NISSAN NORTH AMERICA, INC.
