Removal & Installation: Removal

Remove the center exhaust tube. Refer to Exploded View .
Disconnect harness connector from EVAP control system pressure sensor.

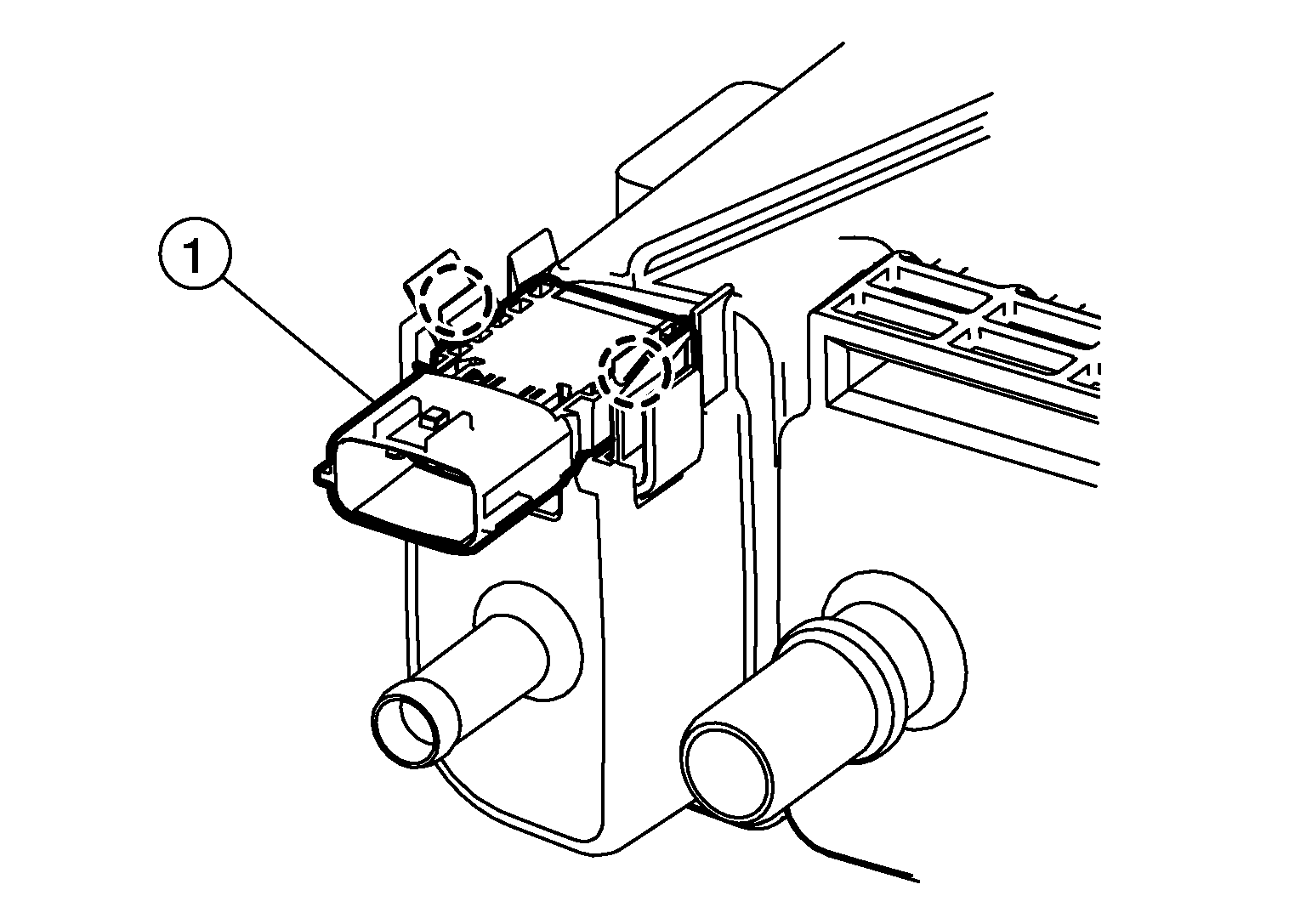

Release pawls and remove EVAP control system pressure sensor (1).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse O-ring when installing new EVAP control system pressure sensor. The EVAP control system pressure sensor and O-ring are serviced as an assembly.

: Pawl
