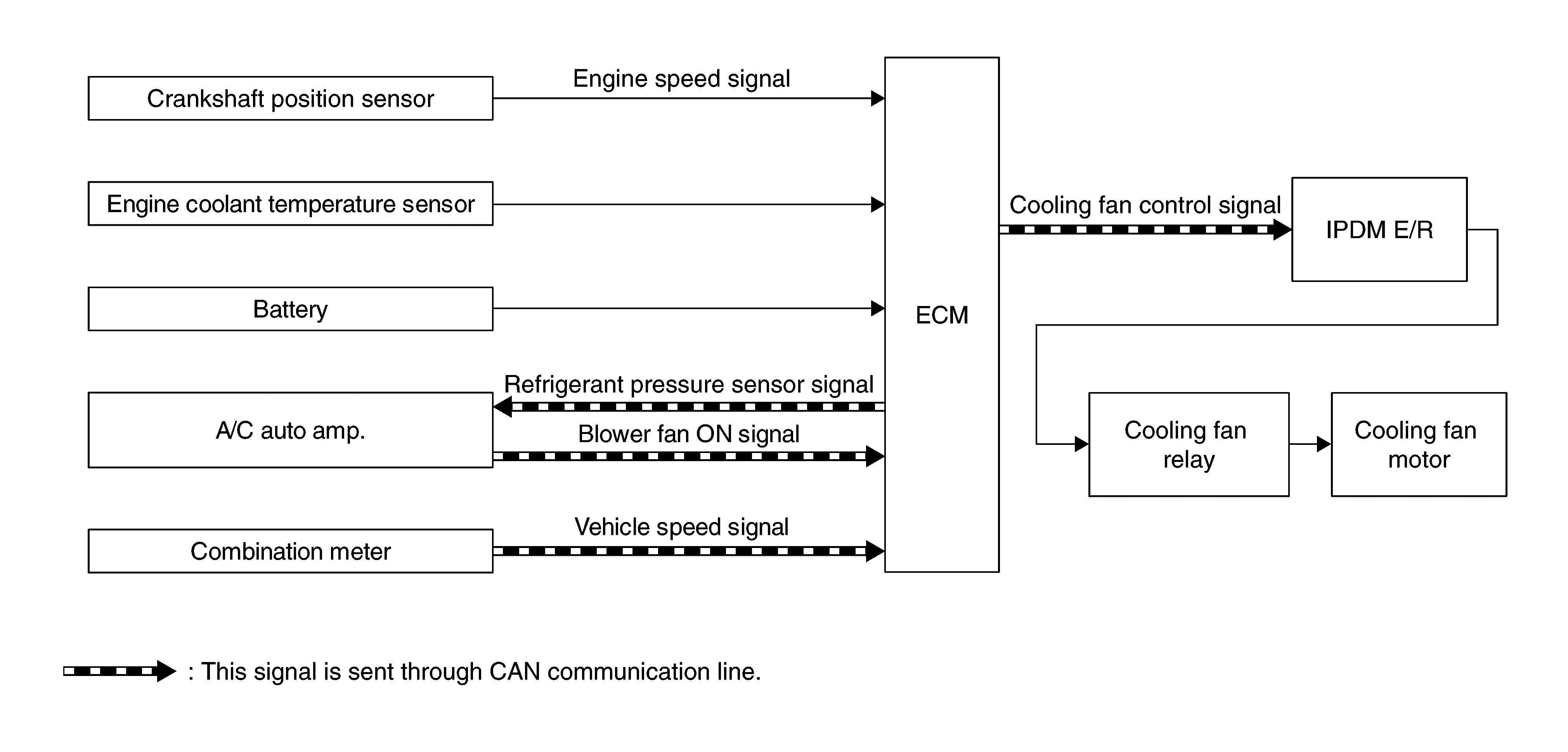

System Diagram
|
Components |
Function |
|
Crankshaft position sensor |
|
|
Engine coolant temperature sensor |
|
|
Battery |
ECM receives the battery voltage signal. |
|
A/C auto amp. |
|
|
Combination meter |
ECM receives the vehicle speed signal via CAN communication. |
|
IPDM E/R |
ECM transmits the A/C relay control signal via CAN communication. |
|
Cooling fan relay |
|
|
Cooling fan motor |
