Exploded View

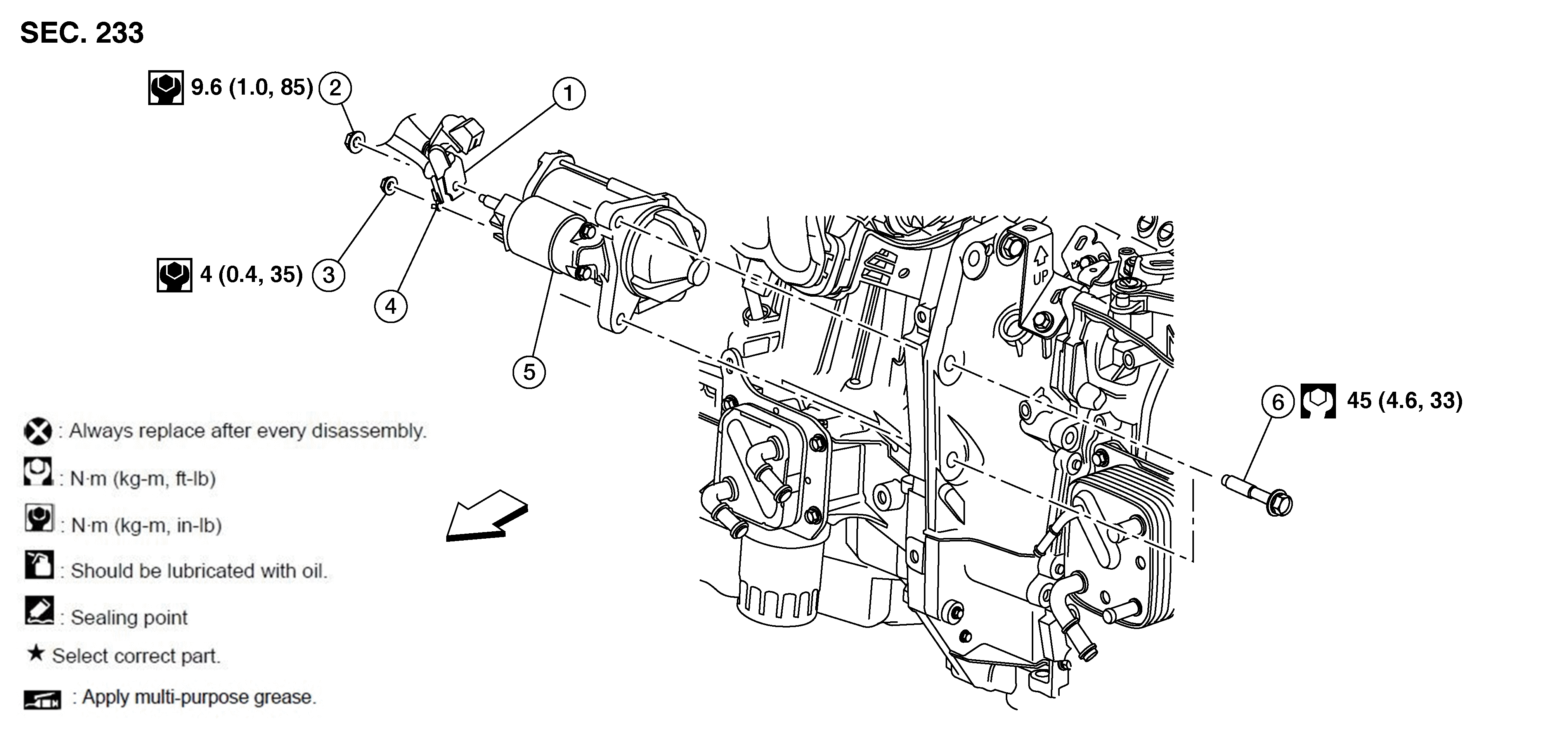

Fig 1: Starter Motor Components With Torque Specification
GNSALBIA0614Z-614SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

"B" terminal harness

2.

"B" terminal nut

3.

"S" terminal nut

4.

"S" terminal harness

5.

Starter motor

6.

Bolt

SYMBOL

Front
