Exploded View

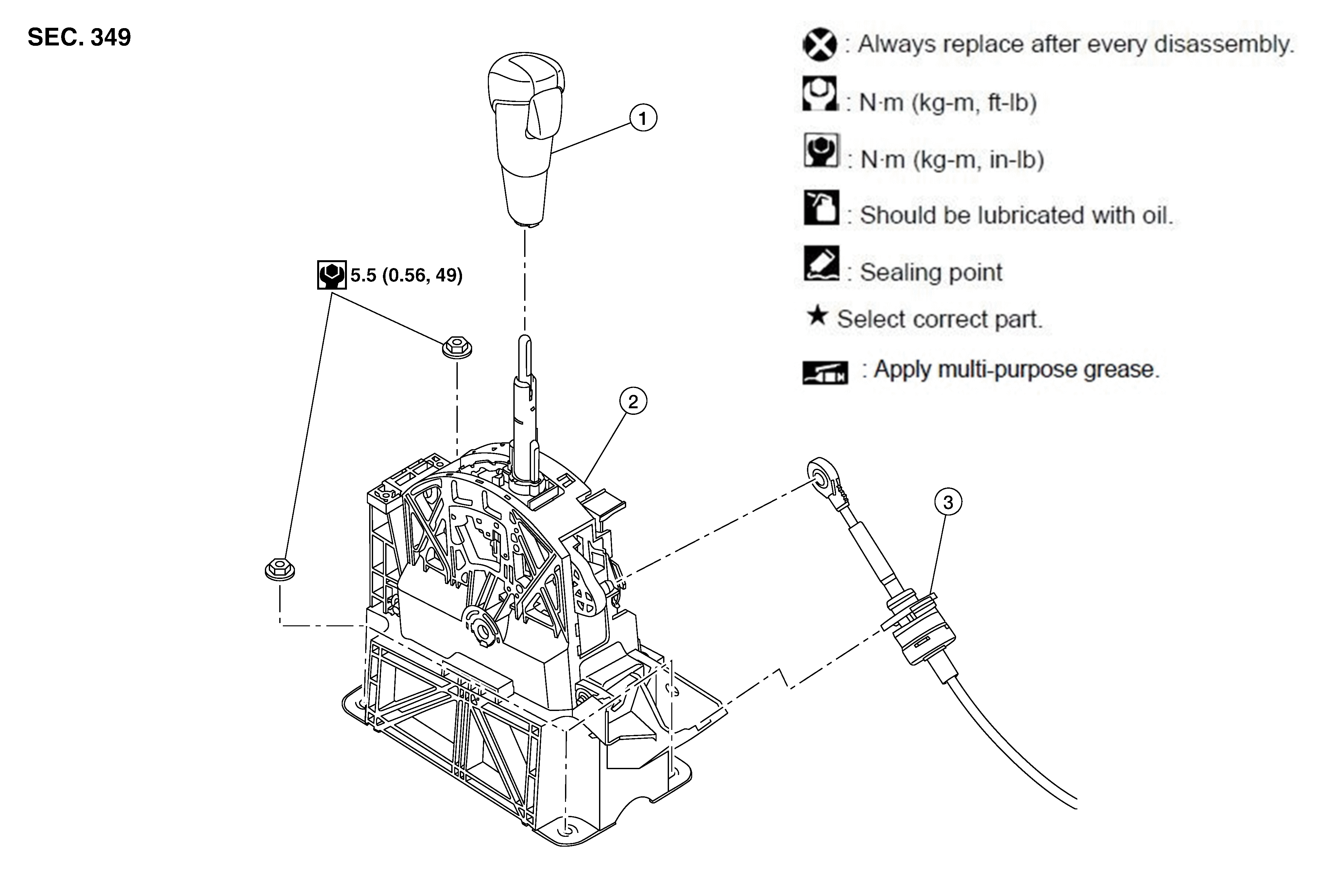

Fig 1: CVT Shift Selector Components With Torque Specification

GNSAWDIA1545Z-545

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Selector lever knob

2.

CVT shift selector assembly

3.

Control cable
