Automatic Transmission
›
Removal And Installation
›
Plug
›
Exploded View
Exploded View

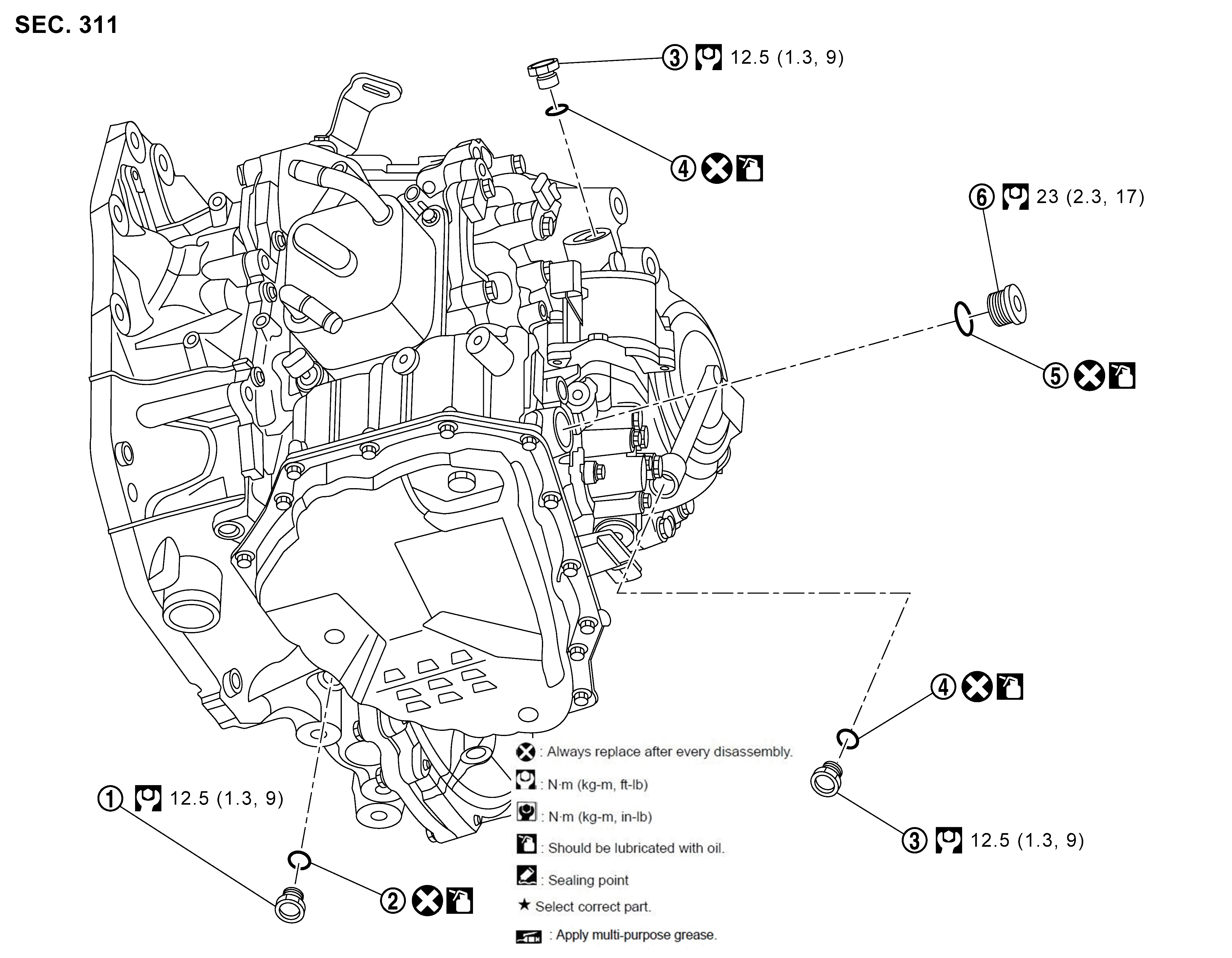

Fig 1: Plug Components With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Plug
2.
O-ring
3.
Plug
4.
O-ring
5.
O-ring
6.
Plug
Courtesy of NISSAN NORTH AMERICA, INC.
