Exploded View

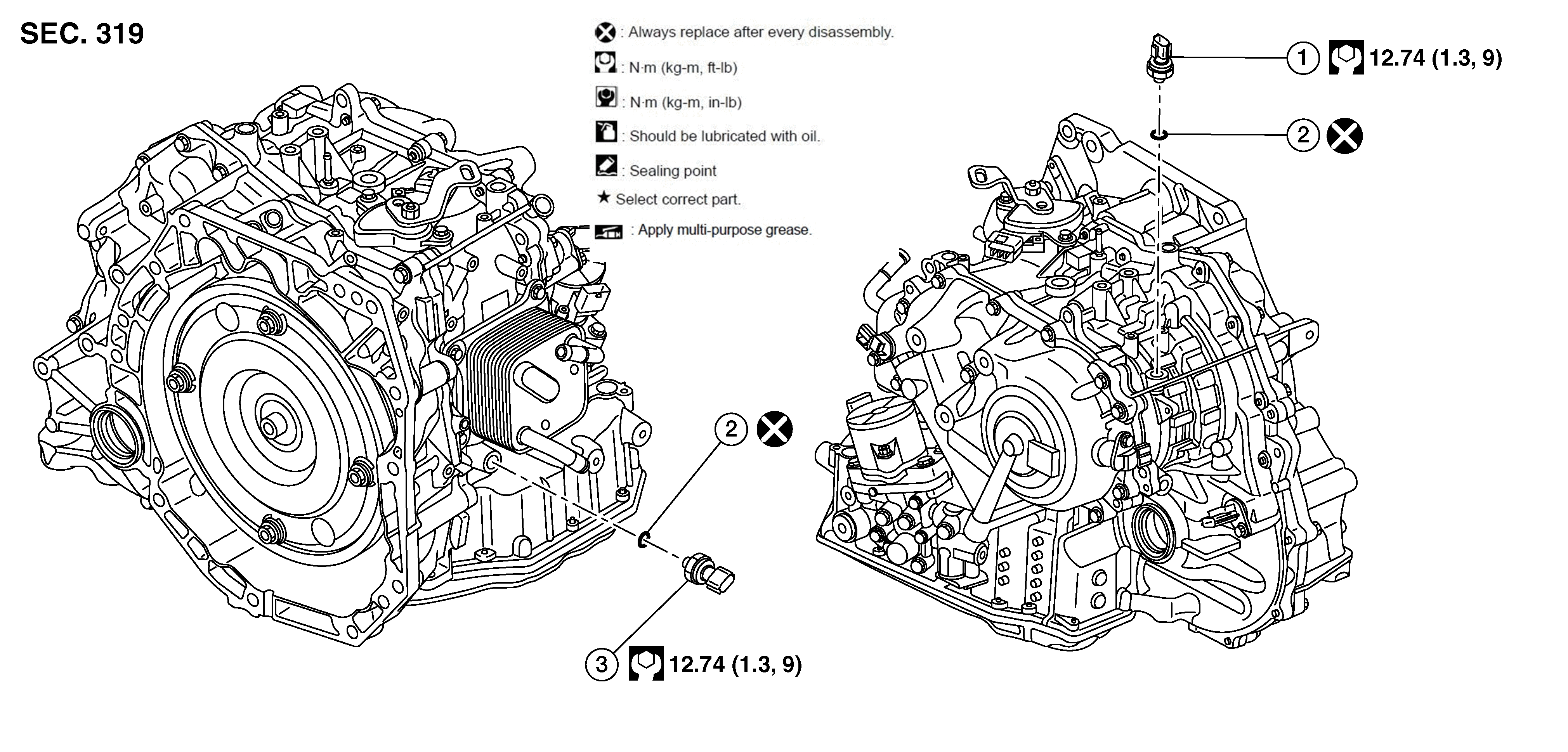

Fig 1: Pressure Sensor Components With Torque Specification

GNSAWDIA1527Z-527

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Low brake pressure sensor

2.

O-ring

3.

Reverse brake pressure sensor
