Exploded View

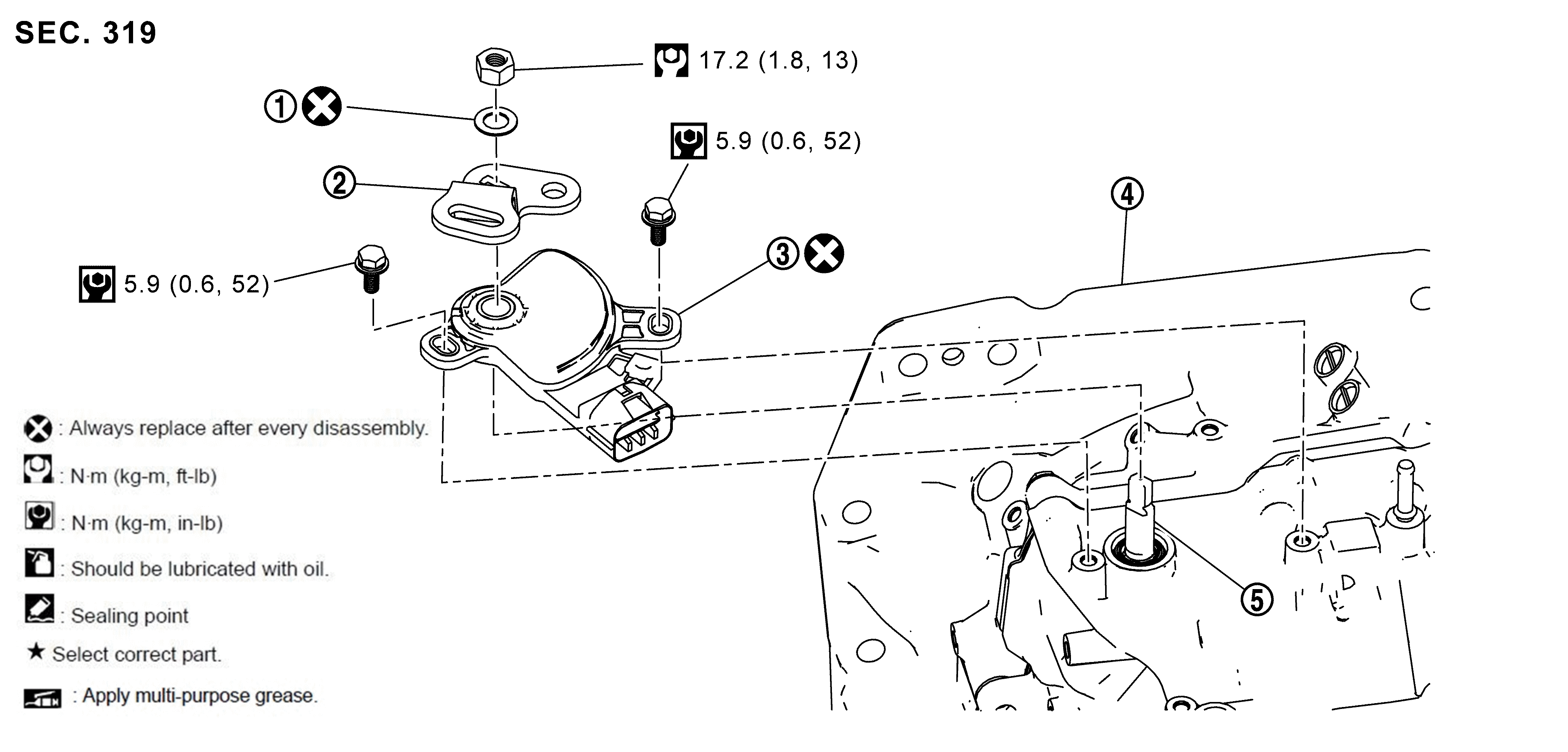

Fig 1: Transmission Range Switch Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Lock washer	2.	Manual lever	3.	Transmission range switch
4.	Transaxle assembly	5.	Manual shaft
